Kreg 720PRO - Place and Secure the Adjustable Stop

15
I
1
1
A
I
Adjustable stop (1) in centered conguration
for wide workpiece
Adjustable stop (1) in side conguration
for narrow workpiece

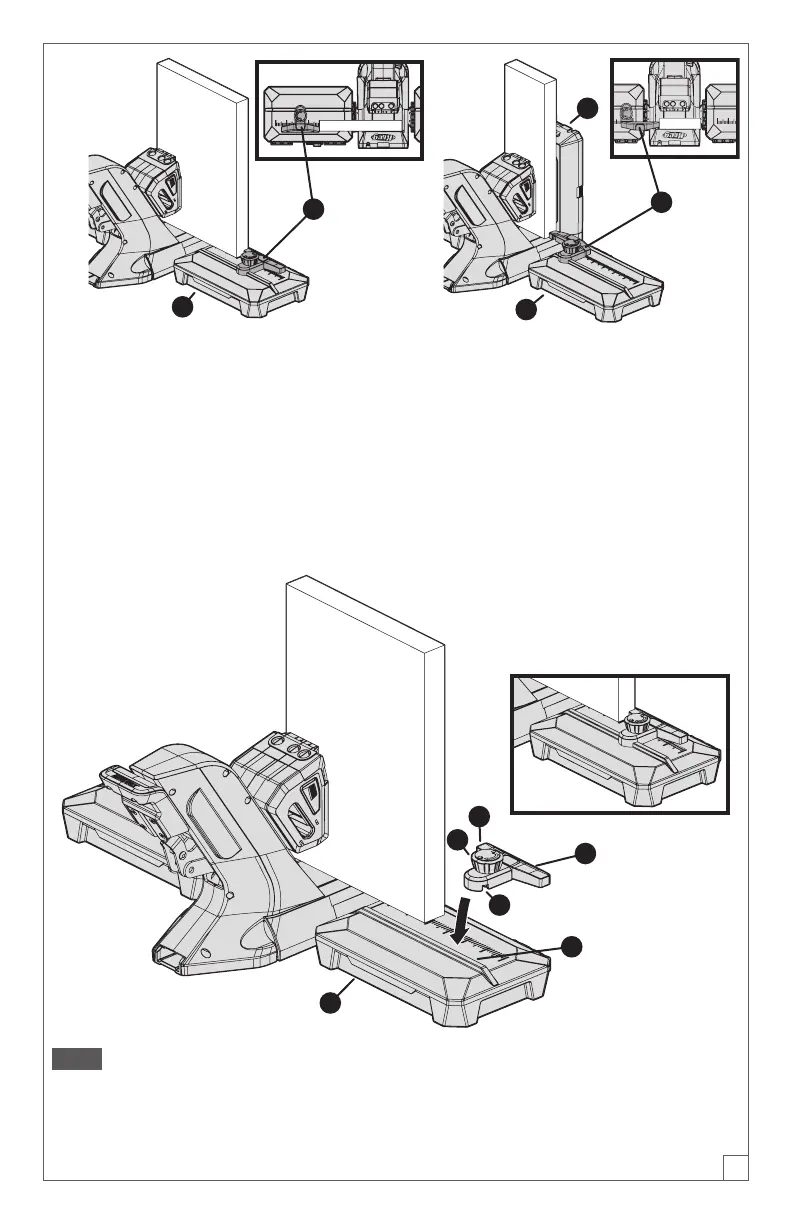

b. Place the adjustable stop (1) onto the lid of a material support wing (I) so that:
■ The edge of the adjustable-stop arm (J) rests snugly against the workpiece.
■ The notch (2) on the underside of the adjustable stop base ts over the rail(3)
that runs across the lid of the material support wing (I).
c. Rotate the adjustable stop knob (K) clockwise until tight to secure the adjustable
stop (1) in position.
I
3
J
K
2
1
Note To reposition or remove the adjustable stop (1), rotate the adjustable stop
knob(K) counterclockwise to loosen it. Then slide the adjustable stop (1) to a new
position along the rail (3) or lift it off of the material support wing (I).
