3 INSTALLATION
16
OPTIMASS 3000
www.krohne.com 10/2015 - 4001593002 - MA OPTIMASS 3000 R02 en
3.4.3 Self draining
Verticle mounting angles for self draining
Verticle mounting angles for self drainingVerticle mounting angles for self draining
Verticle mounting angles for self draining
If the meter is mounted vertically and the installation requires the meter to be self draining,
mount the meter at the angle shown in the table. The angles are marked on the meter base
plate.
Set angles
3.4.4 Cross talk
Where more than one meter is being installed, a very high level of immunity to cross talk means
that the meters can be mounted within close proximity to each other. The meters can be
mounted either in series or parallel, as shown.

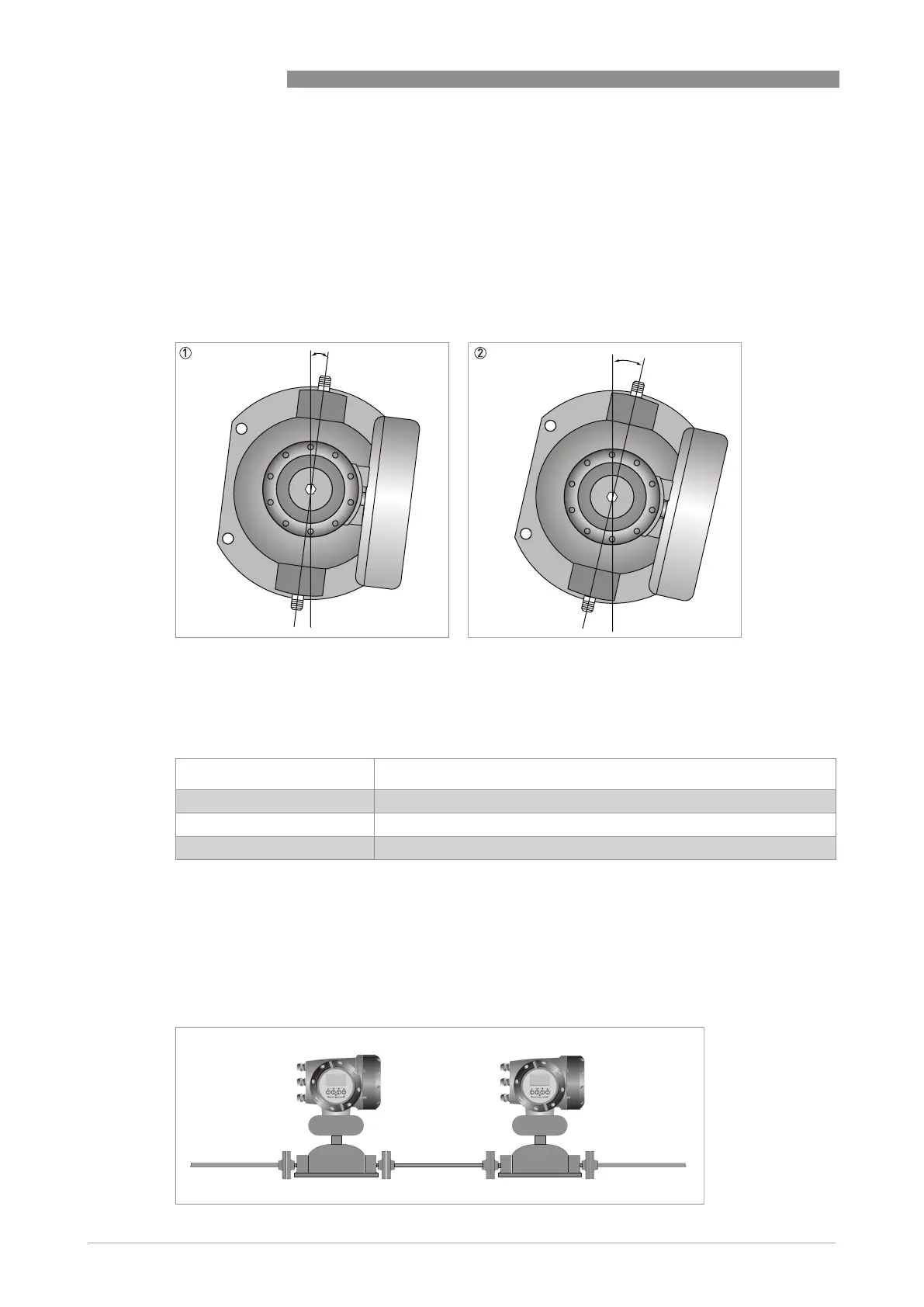

Figure 3-3: Angle of rotation for self draining
1 7º of clockwise rotation from the vertical for self draining. (See table for applicable meter sizes).
2 13º of clockwise rotation from the vertical for self draining. (See table for applicable meter sizes).
Meter size
Meter sizeMeter size
Meter size Angle of rotation (clockwise)
Angle of rotation (clockwise)Angle of rotation (clockwise)
Angle of rotation (clockwise)
01 7º
03 13º
04 13º
Meters in series
