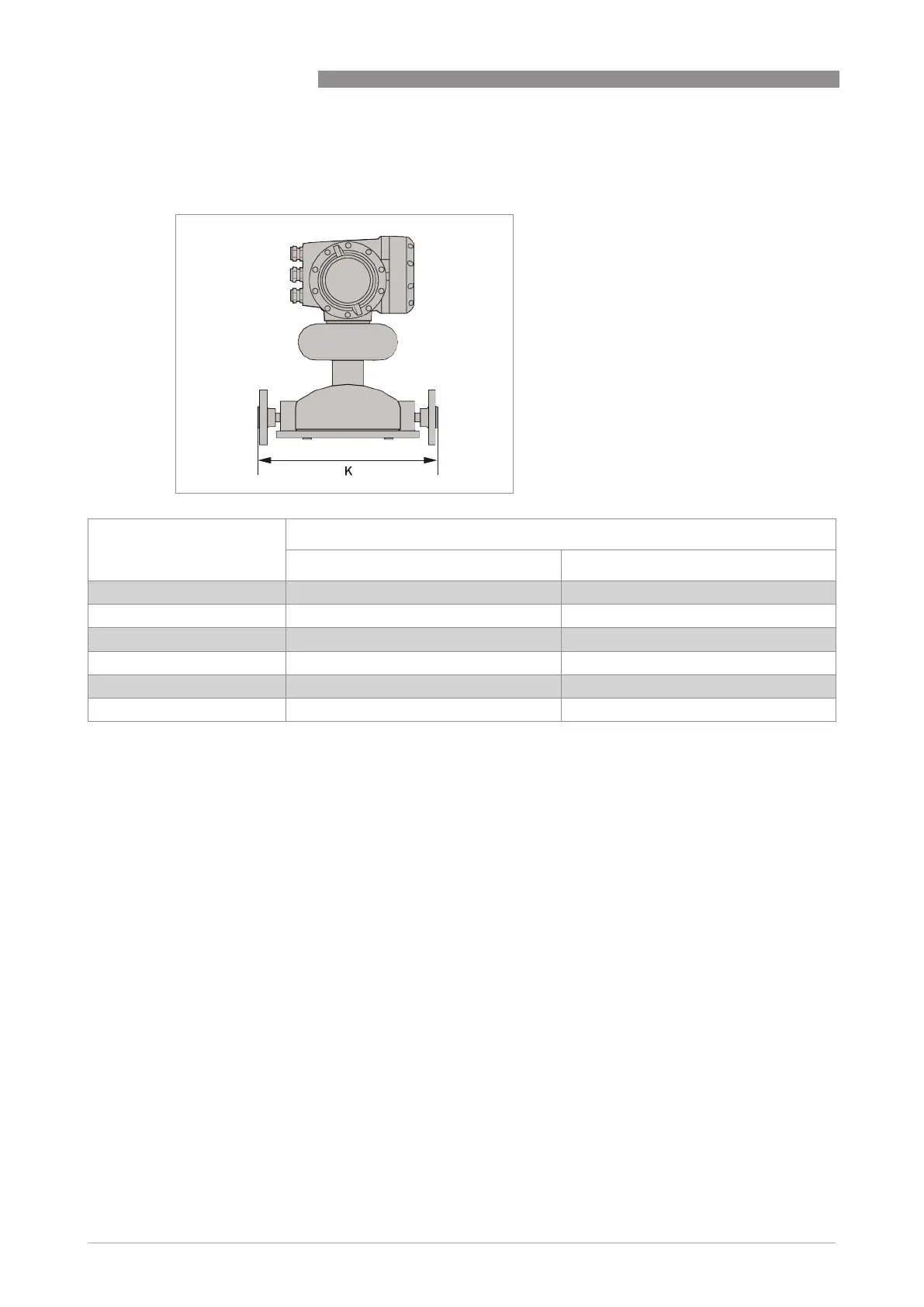

6.5.3 Flange connections
Connection type Dimension K
[mm] [inches]
ASME150 286±3 11.3 ±0.1
ASME300 286±3 11.3 ±0.1
ASME600 295±3 11.6 ±0.1
DN15 PN40 286±3 11.3 ±0.1
DN15 PN63 295±3 11.6 ±0.1
15A JIS 20K 286±3 11.3 ±0.1
