3.4.6 Horizontal mounting
Mount the meter on a firm, rigid base.
3.4.7 Vertical mounting
If the meter is mounted vertically, the process flow MUST be upwards.

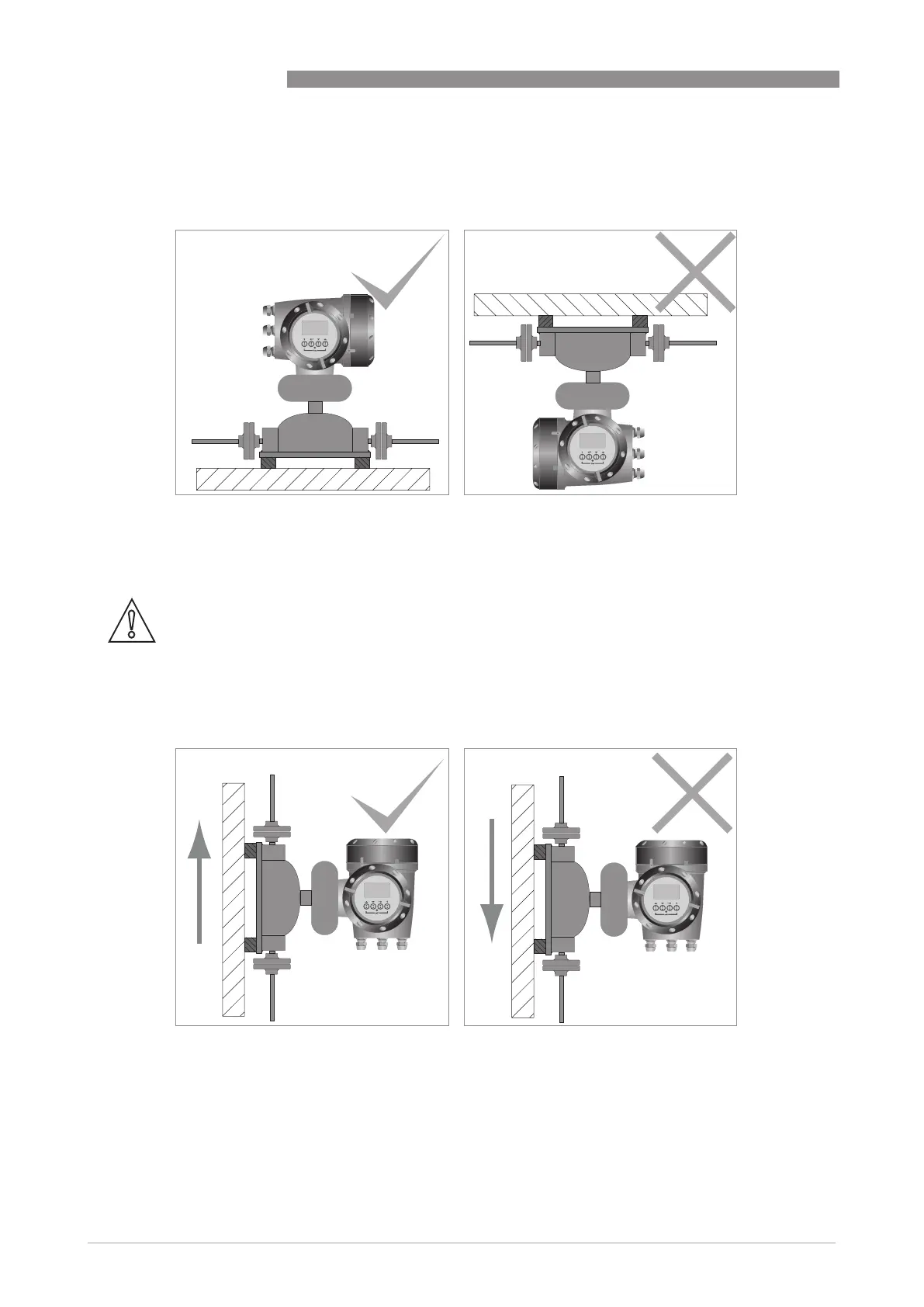

Figure 3-5: Horizontal mounting
CAUTION!
DO NOT mount the meter upside down.
Figure 3-6: Vertical flow direction
