INSTALLATION 3
17
OPTIMASS 3000
www.krohne.com10/2015 - 4001593002 - MA OPTIMASS 3000 R02 en

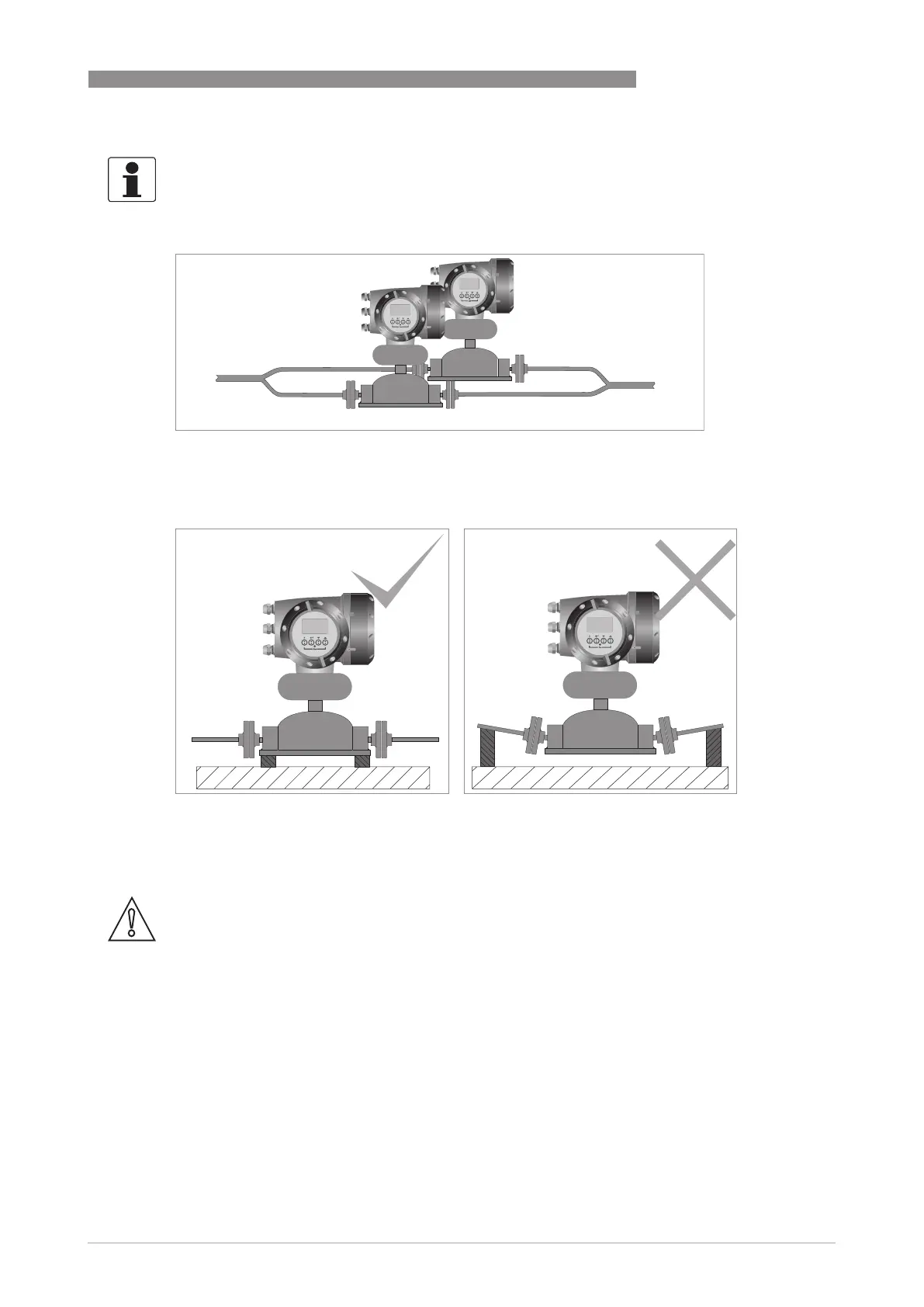

3.4.5 Meter support
Use the base plate to mount and fully support the weight of the meter.
INFORMATION!
Where the meters are installed in series, it is strongly recommended that the process pipe
diameter remains constant. For more information, please contact the manufacturer.
Meters in parallel
Figure 3-4: Supporting the meter
CAUTION!
DO NOT use the process pipework to support the weight of the meter. This will cause severe
damage.
MA_OPTIMASS_3000_en_151014_4001593002_R02.book Page 17 Wednesday, October 14, 2015 1:20 PM
