Technical data
6.1 Measuring principle (single Z tube)
A Coriolis single Z tube mass flowmeter consists of a single Z shaped measuring tube (1) two
drive coils (2) and two sensors (3 and 4) that are positioned either side of the drive coils.

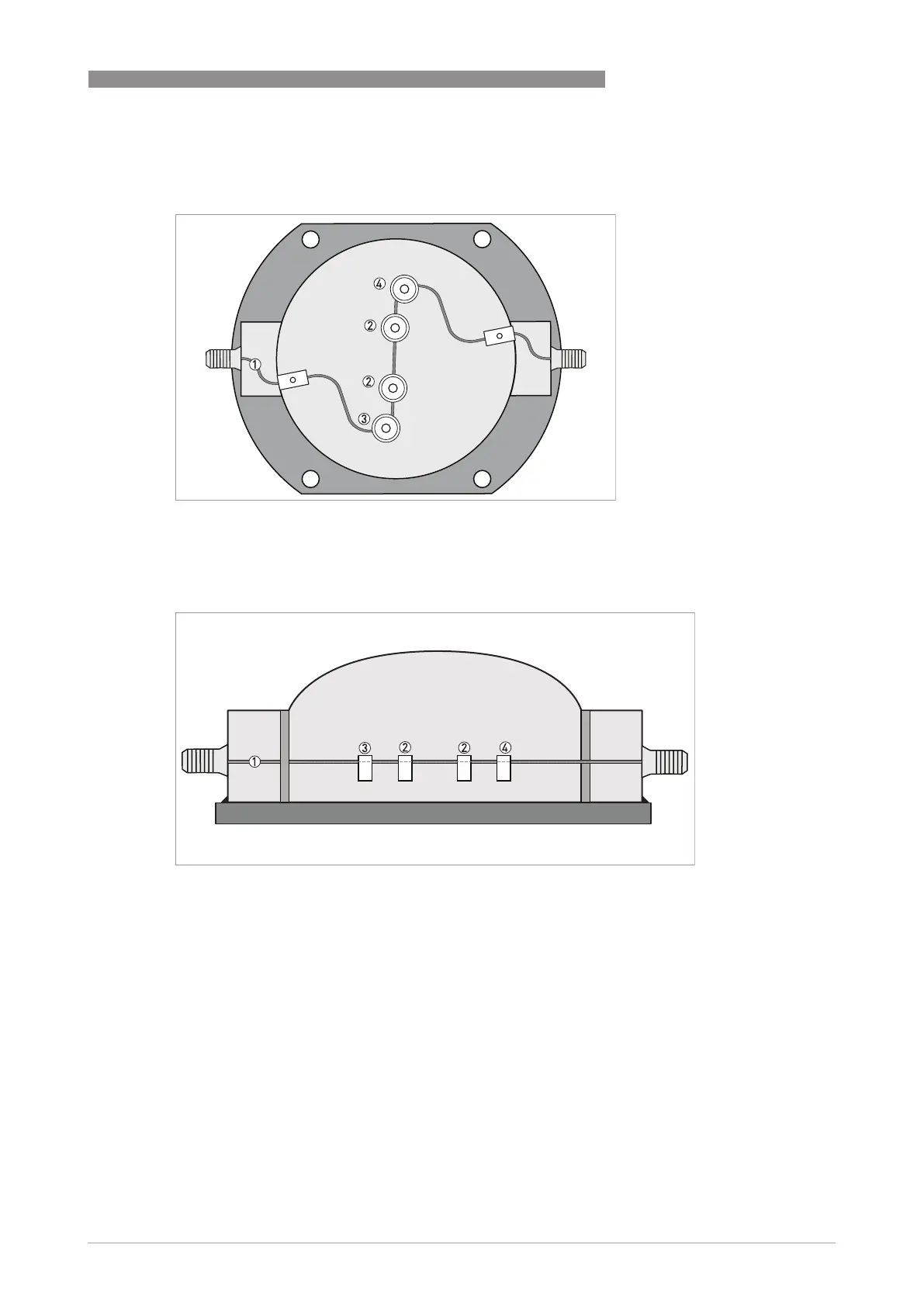

Meter tube layout, shown from above
1 Measuring tube
2 Drive coils
3 Sensor 1
4 Sensor 2
Static meter not energised and with no flow
1 Measuring tube
2 Drive coils
3 Sensor 1
4 Sensor 2
