1 Connecting the terminal
1.3 Connecting the KRONE ISOBUS terminal (CCI1200)
8
RP701-10 , RP701-11 , RP701-20 , RP701-21 , RP701-30 , RP701-31 , RP701-40 , RP701-41 , RP701-51
Comfort 1.0_en
Tractors with integrated ISOBUS system
EQ001-173
ü The machine is shut down and safeguarded, Shutting down and safeguarding the machine.

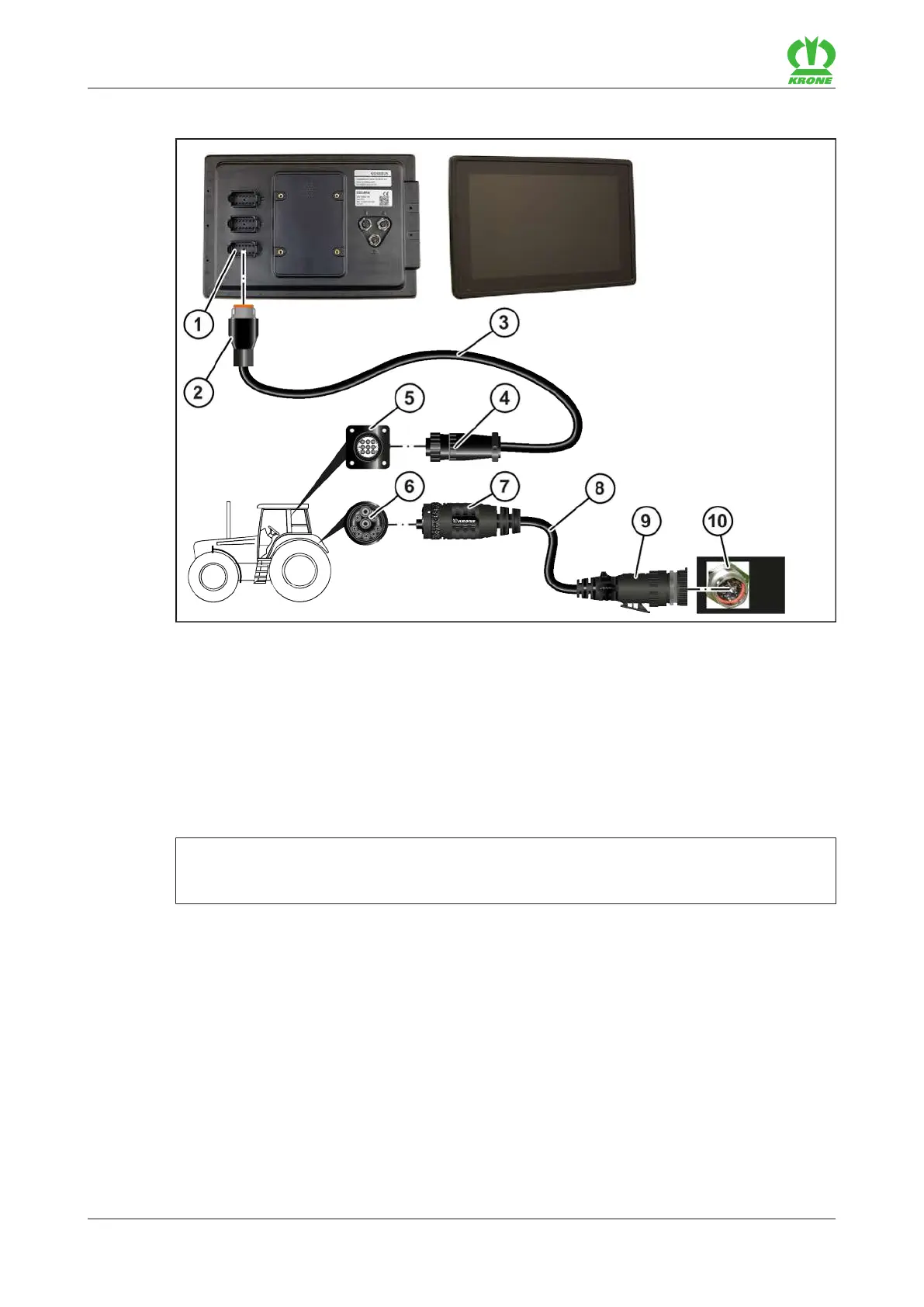

Connection terminal to tractor
Connect the 12-pin plug(2) of the cable(3) to the 12-pin socket(1) of the terminal.
Connect the 9-pin plug (4) of the cable (3) to the 9-pin socket (5) (In-cab).
Connection tractor to machine
INFORMATION
The cable(8) can be ordered by quoting the order number 20086886*.
Connect the 9-pin plug (7) of the cable (8) to the 9-pin ISOBUS socket (6) of the tractor.
Connect the 11-pin plug (9) of the cable (8) to the 11-pin socket (10) of the machine.
