3. Disconnect the following cables from the main board in the order shown.

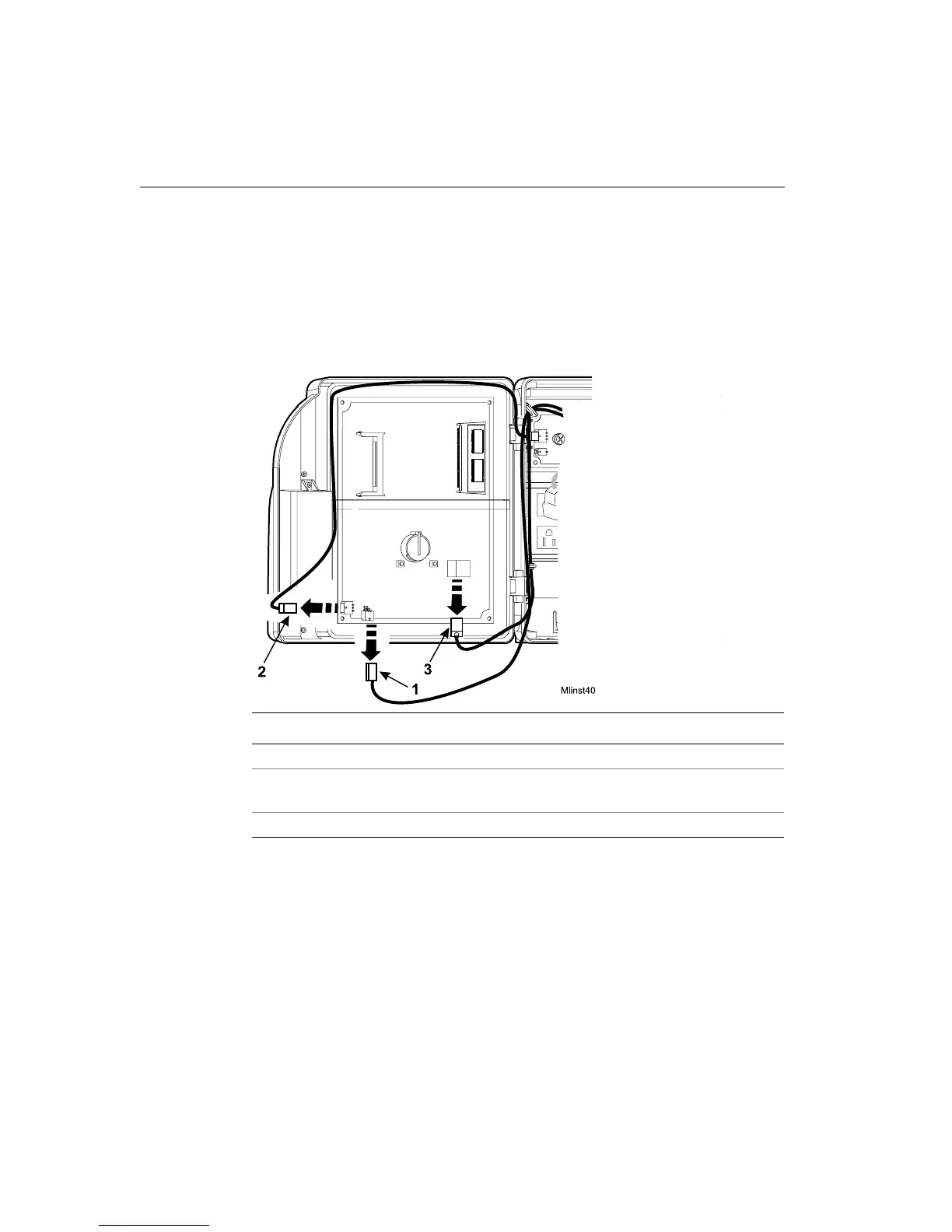

Refer to the following illustration:
! Transformer cable
! Backup battery cable (if the backup battery is installed)
! Ethernet cable
Number Description
1 Disconnecting the transformer from the main board
2 Disconnecting the battery charger board from the main board (if you
installed the backup battery)
3 Disconnecting the Ethernet cable from the main board
