KSB CPK - Sectional Drawing of CPK y Pumps

CPK

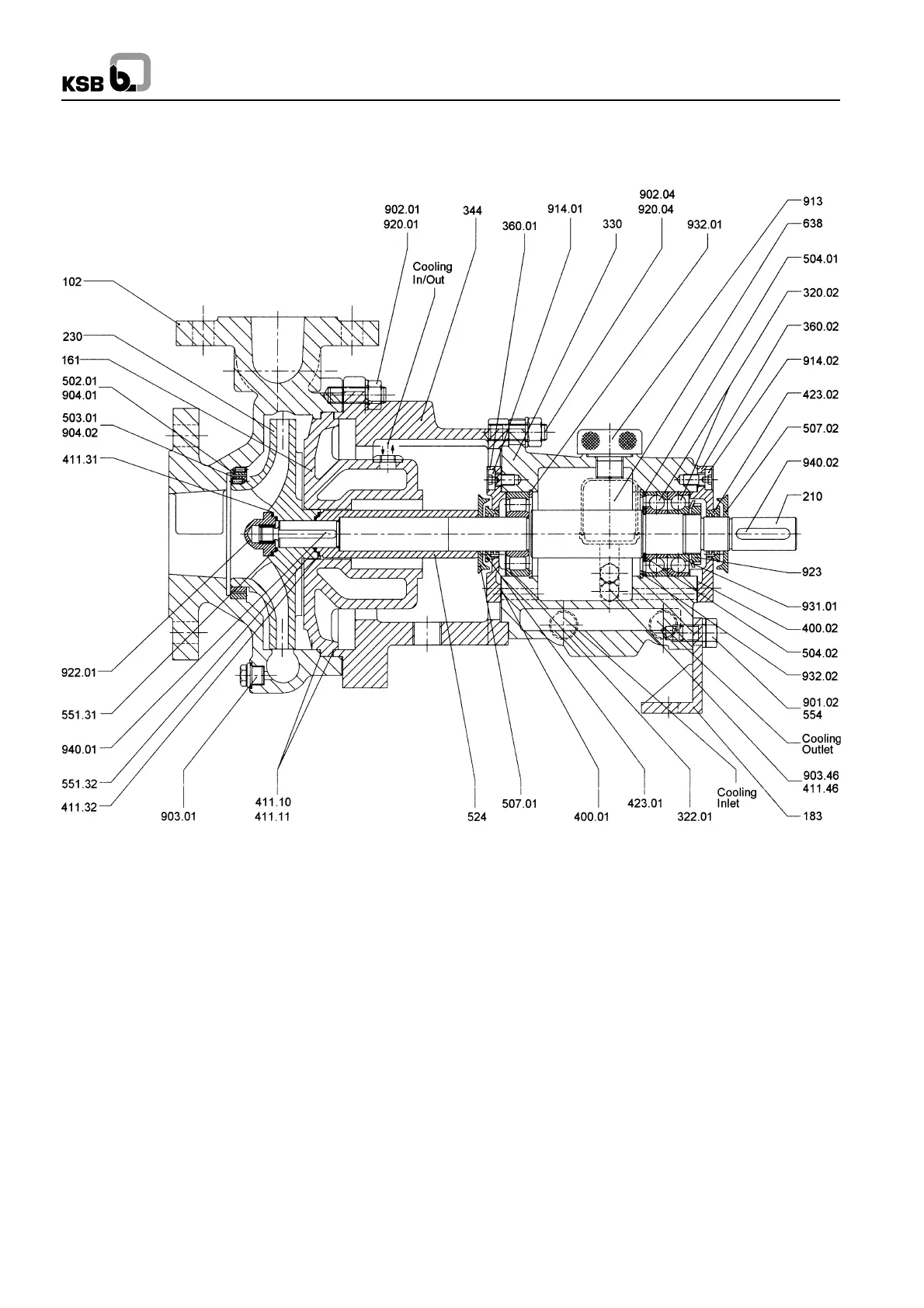

9.1 Sectional drawing of CPK Y Pumps.
Typical arrangement showing CPK Y Pump with heavy bearing bracket. In case you need more details about the pump
available with you; please contact our Authorised Dealer or KSB office.
102 Volute casing
502.01 Wearing ring - Casing
904.01 Allen grub plug - Casing wearing ring
903.01 Hex. Hd. Plug - Casing drain
902.01 / 920.01 Stud / Hex. Nut - volute casing
411.10 Gasket - Volute casing
161 Casing Cover
411.11 Gasket - Casing cover
230 Impeller
503.01 Impeller Ring
904.02 Allen grub plug - Impeller ring
922.01 Impeller nut
551.31 / 551.32 Washer - Impeller
411.31 / 411.32 Gasket - Impeller
210 Shaft
940.01 / 940.02 Key
524 Shaft protection sleeve
344 Bearing bracket lantern
902.04 / 920.04 Stud / Hex. Nut - Brg. Bkt / Brg. Bkt.
Lantern
183 Support foot
901.02 Hex. Hd. Bolt - Support foot
554 Spring Washer - Support foot
330 Bearing bracket
322.01 Cylindrical roller bearing
320.02 Angular contact bearing
932.01 / 932.02 Circlip
504.01 / 504.02 Adjusting Disc
931.01 Lock Washer
923 Withdrawl nut
400.01 / 400.02 Gasket - Bearing cover
360.01 / 360.02 Bearing cover
914.01 / 914.02 Socket Hd. Cap Screw - Bearing cover
423.01 / 423.02 Labyrinth ring
507.01 / 507.02 Splash ring
913 Vent plug
638 Constant lever oiler
903.46 / 411.46 Hex. Hd. Plug / Gasket - oil drain
Part no. Description Part no. Description
13
