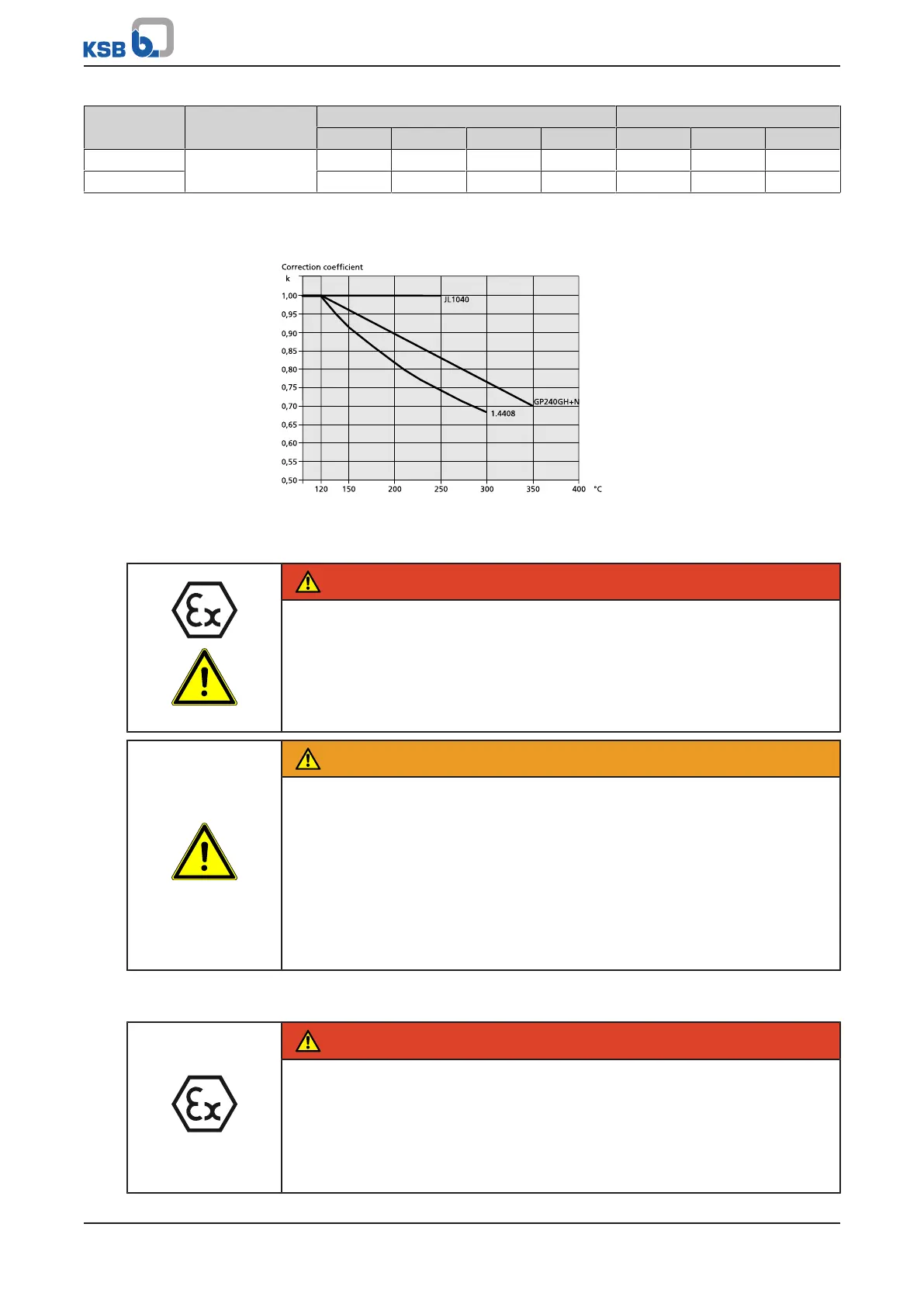

5 Installation at Site
23 of 76
CTN / CTN-H
Size Materials Forces (in N) Moments (in Nm)
F
x
F
y
F
z
F
res
M
x
M
y
M
z
200 1.4408 7600 7200 6840 9930 3800 2580 1860
250 11000 10050 9900 14110 5000 3400 2450
For temperatures of more than 120 °C, the values specified must be reduced in line
with the drop in yield strength of the relevant material (see diagram below).
Correction coefficients depending on material and temperature (see diagram below).
Fig.5: Temperature correction coefficients
5.4.3 Auxiliary connections
DANGER
Risk of potentially explosive atmosphere by incompatible fluids mixing in the
auxiliary piping
Risk of burns!
Explosion hazard!
▷ Make sure that the barrier fluid or quench liquid are compatible with the fluid
handled.
WARNING
Failure to use or incorrect use of auxiliary connections (e.g. barrier fluid, flushing
fluid, etc.)
Risk of injuries by escaping fluid!
Risk of burns!
Malfunction of the pump!
▷ Refer to the general arrangement drawing, the piping layout and pump
markings (if any) for the number, dimensions and locations of auxiliary
connections.
▷ Use the auxiliary connections provided.
5.5 Enclosure/insulation
DANGER
Risk of potentially explosive atmosphere due to insufficient venting
Explosion hazard!
▷ Ensure adequate venting of the space in the bearing bracket lantern/drive
lantern.
▷ Never close or cover the perforations of the contact guard on the drive lantern
(e.g. with insulation).
