4.1 General description
▪ Heat transfer fluid pump with shaft seal
Pump for handling hot water or organic heat transfer fluids in piping or tank
systems.
The HPK-E type series is type-tested to TRD (German Steam Boiler Regulations) by
TÜV (German Association for Technical Supervision). (Special design)
4.2 Product information as per Regulation No. 1907/2006(REACH)
For information as per chemicals Regulation (EC) No. 1907/2006 (REACH), see https://
www.ksb.com/ksb-en/About-KSB/Corporate-responsibility/reach/ .
4.3 Designation
Example: HPK SY F 80 - 160
Table5: Key to the designation
Code Description
HPK Type series
S Material of wetted components, e.g. nodular cast iron
Y Centreline pump feet
F Additional code, e.g. F = off-standard flange design
80 Nominal discharge nozzle diameter [mm]
160 Nominal impeller diameter [mm]
4.4 Name plate
KSB SE & Co. KGaA
Johann-Klein-Straße 9
67227 Frankenthal
ZN 3804 - E 37 X 52
Q
n
H
P-No.
Mat. No. 01220221
HPK SY F 80-160
2018
0520-5-P-10000-31
997125086300550001
115
m³/h
2955
1/min
25
m
1
2
5
4
3
6
7

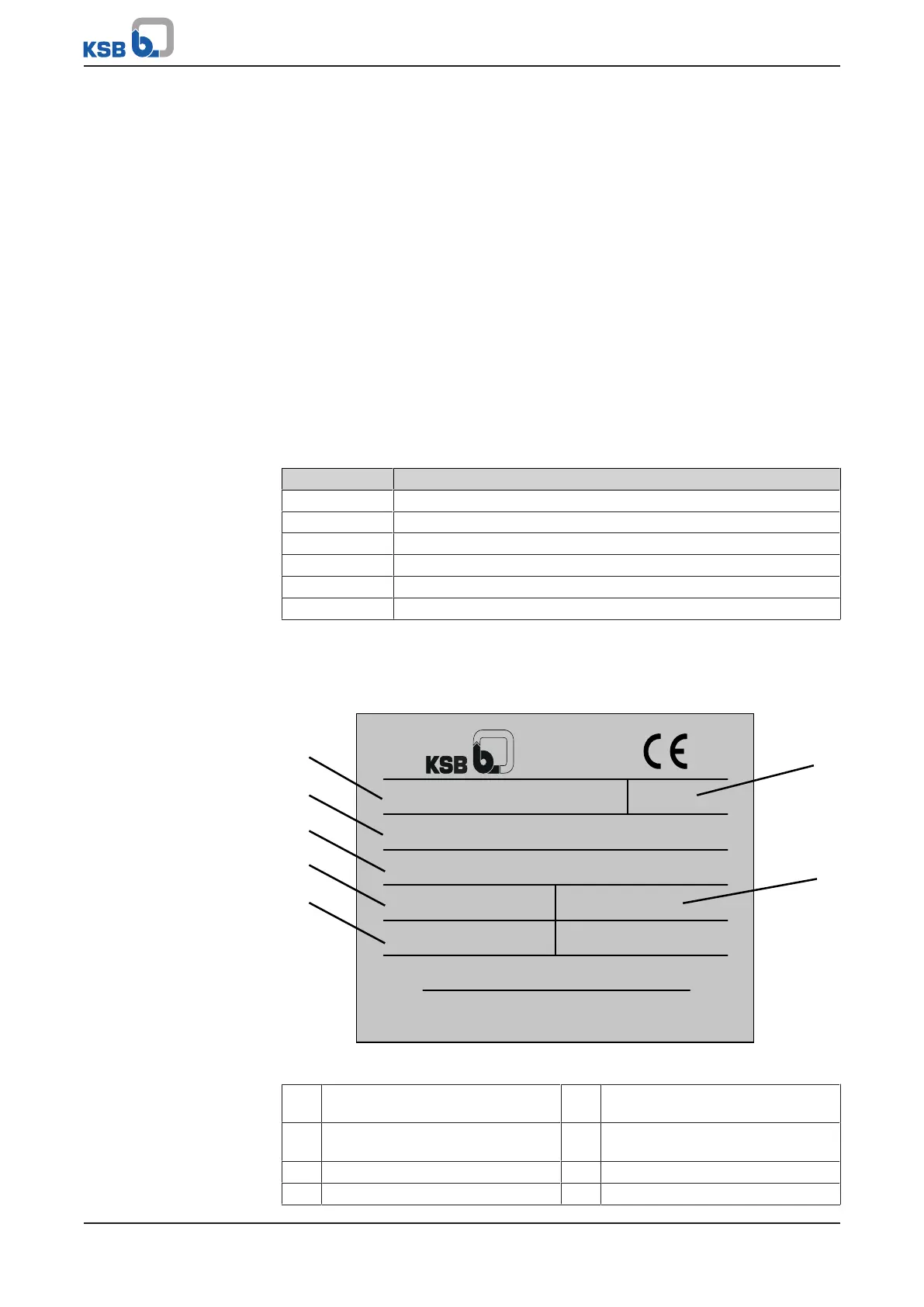

Fig.5: Name plate (example)
1 Type series, size 2 Customer-specific information
(optional)
3 KSB order number and order item
number
4 Flow rate
5 Speed 6 Year of construction
7 Head
