Part. No. Comprising Description
411 411 Joint ring
421 421 Lip seal
502.01
20)
502.01
20)
Casing wear ring
561.01 Parallel pin
507.01 507.01 Thrower
524.01 524.01 Shaft protecting sleeve
411.32 Joint ring
550 550 Disc
561 561 Grooved pin
638 638 Constant level oiler
672 672 Vent
680 680 Guard
901 901 Hexagon head bolt
902 902 Stud
903 903 Screw plug
914 914 Hexagon socket head cap screw
920 920 Nut
922 922 Impeller nut
411.31 Joint ring
930 930 Safety device
931 931 Lock washer
932 932 Circlip
940 940 Key
9.2 Version with gland packing
463.01
456.01
524.01 461.01 454.01
452.01
902.02
920.02
550.01

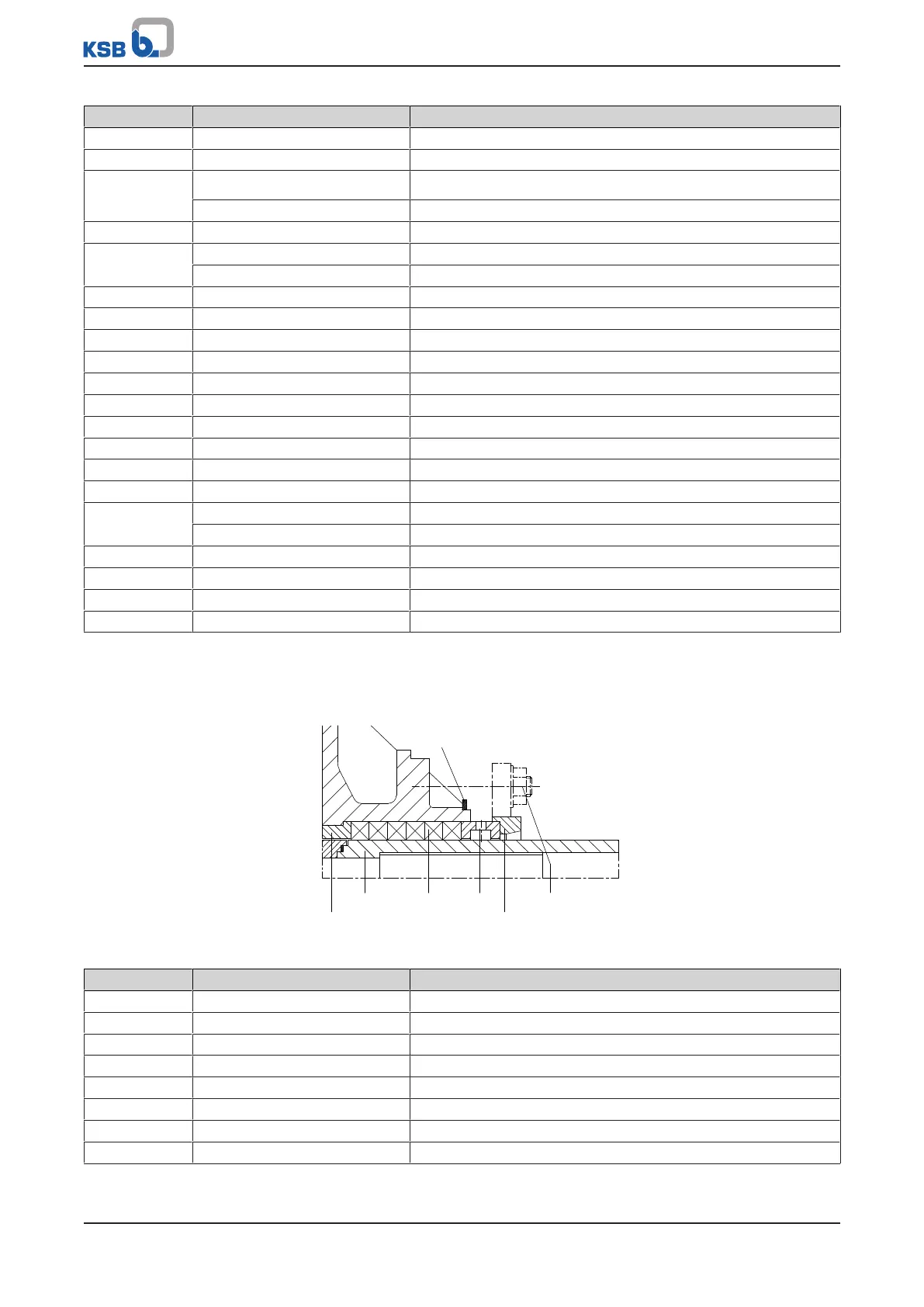

Fig.23: Gland packing version of HPK-E/EX/EY/S/SX/SY
Part. No. Comprising Description
452 452 Gland follower
454 454 Stuffing box ring
461 461 Gland packing
463 463 Drip plate
524 524 Shaft protecting sleeve
550 550 Disc
902 902 Stud
920 920 Nut
