KSB KWP-Bloc - List of Components

9 Related Documents
57 of 64
KWP-Bloc
Mechanical seal, John Crane
2100
524.01
433.02
504.54

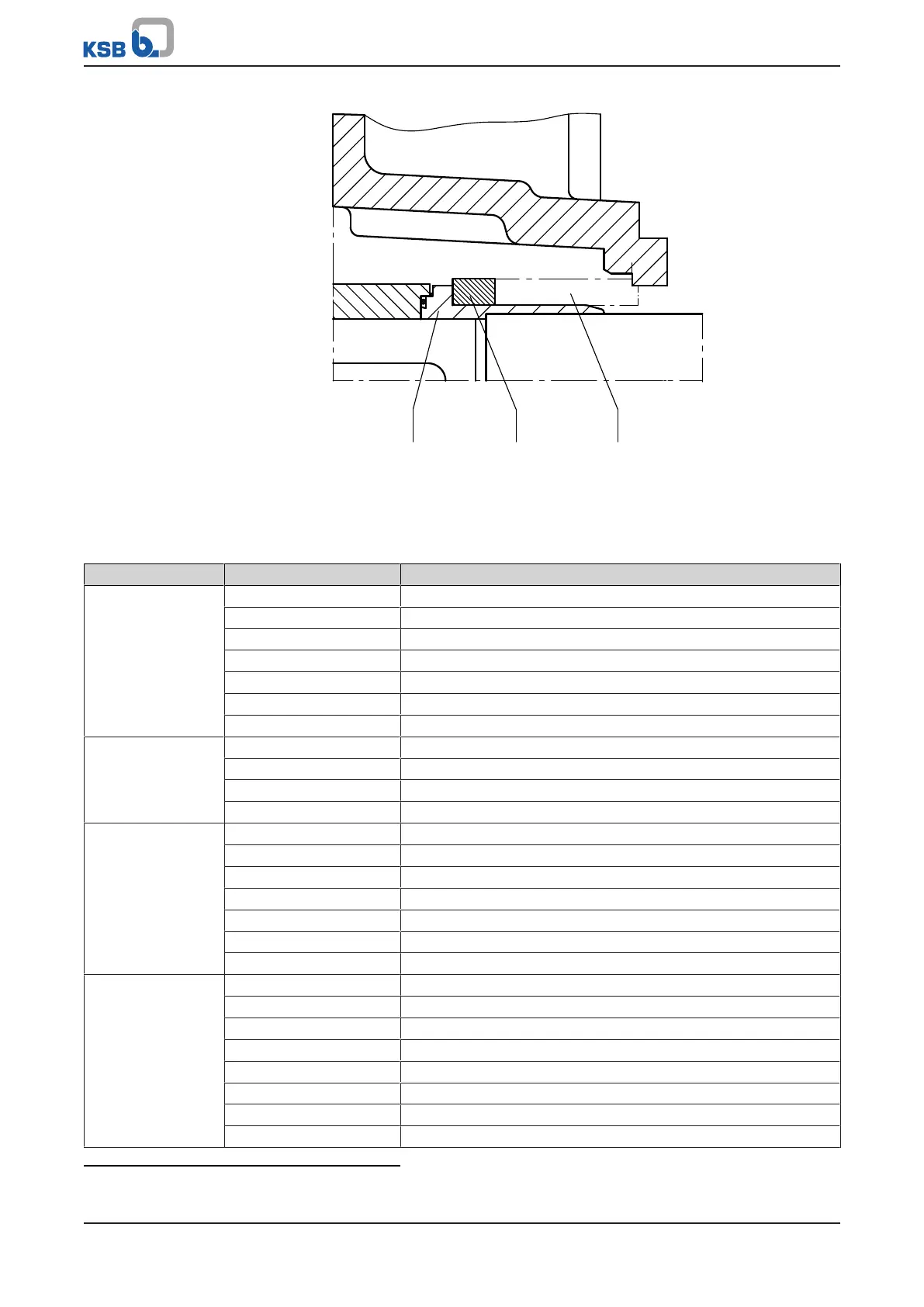

Fig.15: Mechanical seal, John Crane 2100
9.1.4 List of components
Table22: List of components
19)
Part No. Comprising Scope of supply
101 101 Pump casing
411.01
20)
/.02
20)
/.03
20)
/.10 Joint ring
550.44 Disc
901.01 Hexagon head bolt
902.01 Stud
903.01
20)
/.02
20)
/.03
20)
Screw plug
920.01 Hexagon nut
135 135 Wear plate
411.13 Joint ring
412.05/.75 O-ring
914.05 Hexagon socket head cap screw
146 146 Intermediate lantern
550.57 Disc
913 Vent plug
901.57 Hexagon head bolt
903.17/.25/.26 Screw plug
920.04 Hexagon nut
932.01 Circlip
163 163 Discharge cover
412.08 O-ring
550.45/.22 Disc
901.30 Hexagon head bolt
902.15 Stud
920.15 Hexagon nut
914.22 Hexagon socket head cap screw
500.14 Ring
19) Depending on the design
20) If any
