12.2.6 Field buses

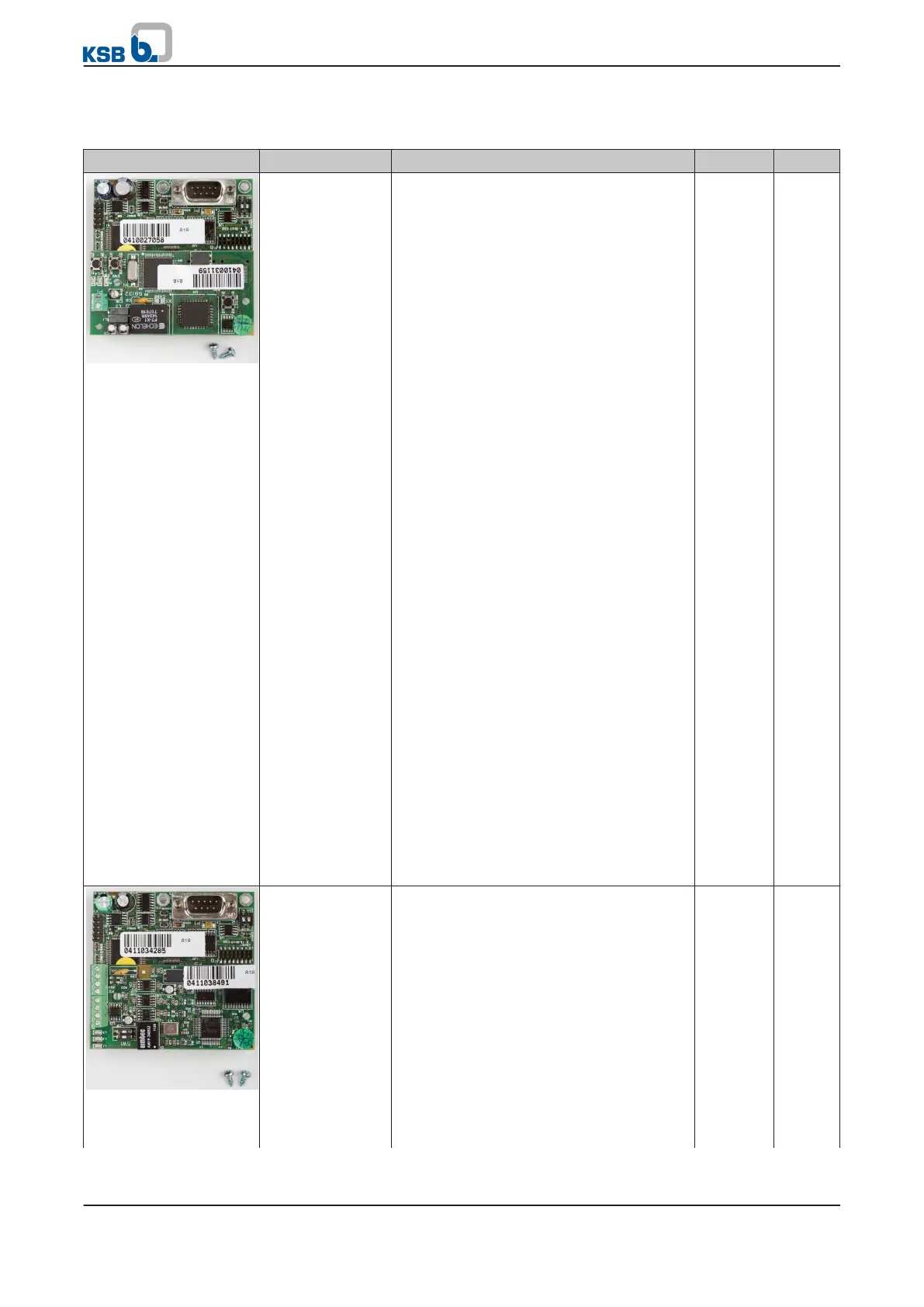

Table 130: Installation module accessories
Description Design Mat. No. [kg]
LON set of
accessories
For connecting PumpDrive BASIC/ADVANCED
to LON networks
LON field bus module including software
version 0.93 and 1.00 as well as operating
manual on CD-ROM
Scope of supply of LON field bus module set
of accessories:
▪ Field bus module, LON module for
PumpDrive
▪ Operating manual, field bus module,
LON 0.93 profiles for PumpDrive
▪ CD-ROM with operating manuals and
software
The modular, plug-on LON interface field bus
module is connected to an available, on-site
LON network field bus module. The LON
interface field bus module is equipped with
an FTT-10A transceiver (Free Topology
Transceiver).
The following parameters can be transferred,
for example:
Start, pump status, stop, pump fault,
setpoint, operating hours, actual value,
energy consumption, speed, shaft power,
pressure (if a sensor is connected)
Further details and parameters can be found
in the LON field bus module literature for
PumpDrive; refer to the Product Catalogue
on the KSB web site. The LON literature is
based on the LONMARK Functional Profile
Pump Controller V 0.93 - SFPTpumpController
standard. HVAC Profile 1.0 can also be
supported if required. The LON interface
field bus module is commissioned on site.
Note: Every PumpDrive used as a single-pump
drive can be monitored or controlled (open
and closed loop) by an LON field bus module.
A multiple pump configuration can only be
monitored; each PumpDrive then needs to be
equipped with an LON field bus module.
01131432 0.3
Profibus set of
accessories
For connecting PumpDrive BASIC /
ADVANCED to Profibus networks,
Profibus field bus module incl. software and
operating instructions on CD-ROM
Scope of supply of Profibus set of accessories:
▪ Profibus module for PumpDrive
▪ PumpDrive Profibus module operating
manual
▪ CD-ROM with operating manuals and
software
The modular, plug-on Profibus interface is
connected to an available, on-site Profibus
network. The Profibus module corresponds to
a Profibus DPV0 slave.
01131431 0.3
