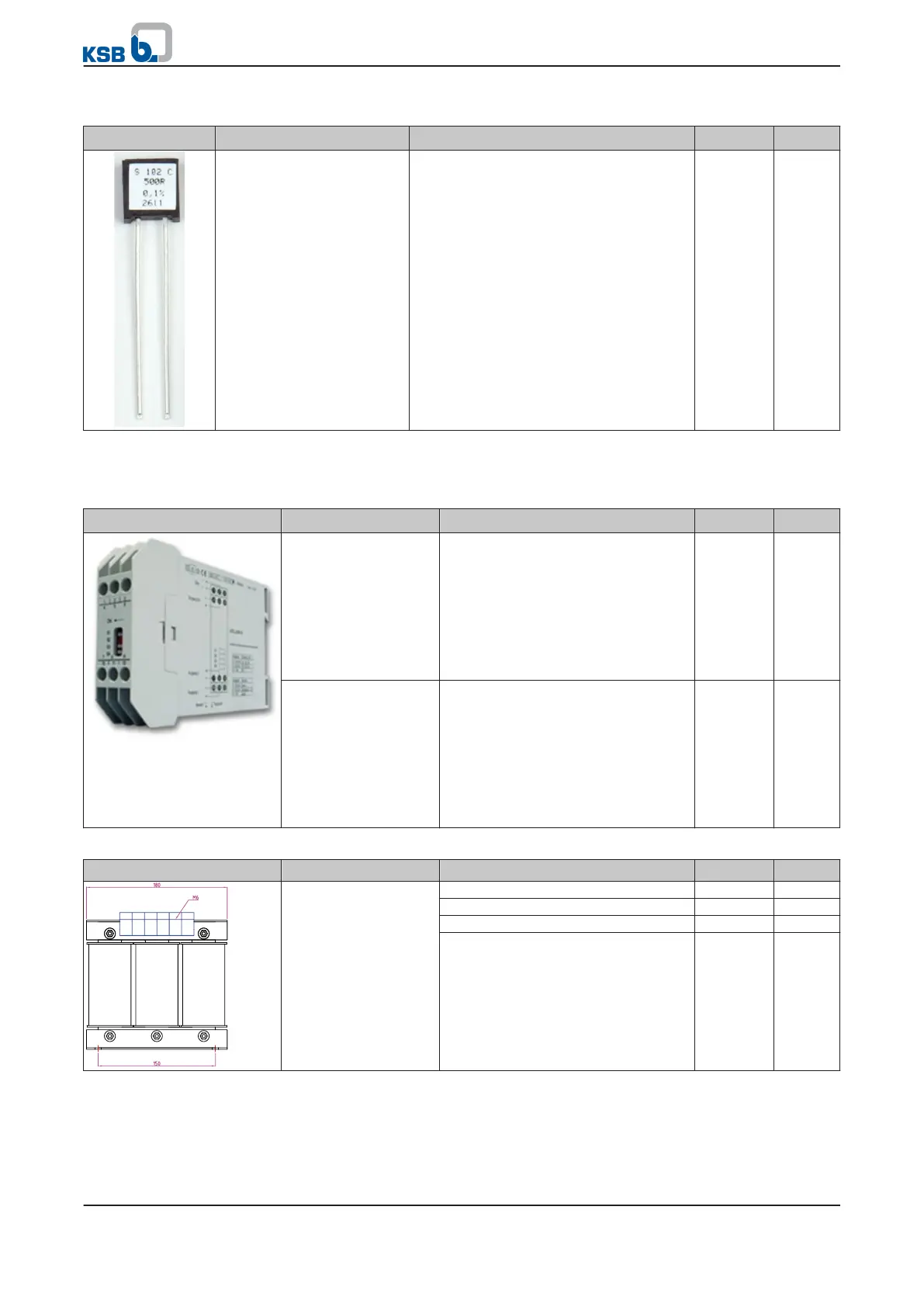

Table 136: Accessories – Measuring resistor
Description Design Mat. No. [kg]
Measuring resistor 500 Ohm For converting analog input signals 0-10 V
DC <-> 0…20 mA
01127044 0.001
12.2.8 Control cabinet mounting
Table 137: Accessories – Potential separator
Description Design Mat. No. [kg]
Potential separator
For volt-free signal
transmission between
PumpDrive and
external controllers.
Differences in
potential can damage
analog and digital
inputs.
Top hat rail mounting, external
supply voltage 24 V DC, IP40 housing,
IP20 terminals, 22,5 x 82 x 118,2 mm
(B x H x T)
01085905 1.2
Potential separator
For volt-free signal
transmission between
PumpDrive and
external controllers.
Differences in
potential can damage
analog and digital
inputs.
Top hat rail mounting, external
supply voltage 230 V AC, IP40
housing, IP20 terminals, 22,5 x 82 x
118,2 mm (B x H x T)
01086963 1.2
Table 138: Accessories – Filters
Category Description Design Mat. No. [kg]
Line chokes for
PumpDrive for
preventing mains
feedbackProtection of
PumpDrive from
current peaks, IP00
enclosure
0,55 - 4 kW 01093105 3.6
5,5 - 11 kW 01093106 8.3
15 - 22 kW 01093107 10.5
30 - 45 kW 01093108 10.8
