5. Installation
5.1 Packing list
Prior to installation, please check if the outer appearance of machine is intact and the parts
i
attachment bag are not inconsistent with the list.
No. Name Quantit Description
1 Inverter 1 Power storage inverter
2 Installation pendants 1 Used for installing the inverter
3 Protective cover 2
Battery protective cover ， AC
protective cover and M4 mounting
screw ×8
4 Expansion tube 4
Used for fixing the installation
pendants
5 Self-tapping screw 4
Used for fixing the installation
pendants
6 Combined screw 2
Used for fixing the inverter on the
installation pendant
7 PV connection terminal 4
The PV input DC terminal, including
the positive and negative terminals
8 Wiring terminal 2 Wiring terminal of battery terminals
9 Slotted screwdriver 1 Used for removing PV connector
10 Battery screw 2 Battery wiring screw
Cd ilf li i i f

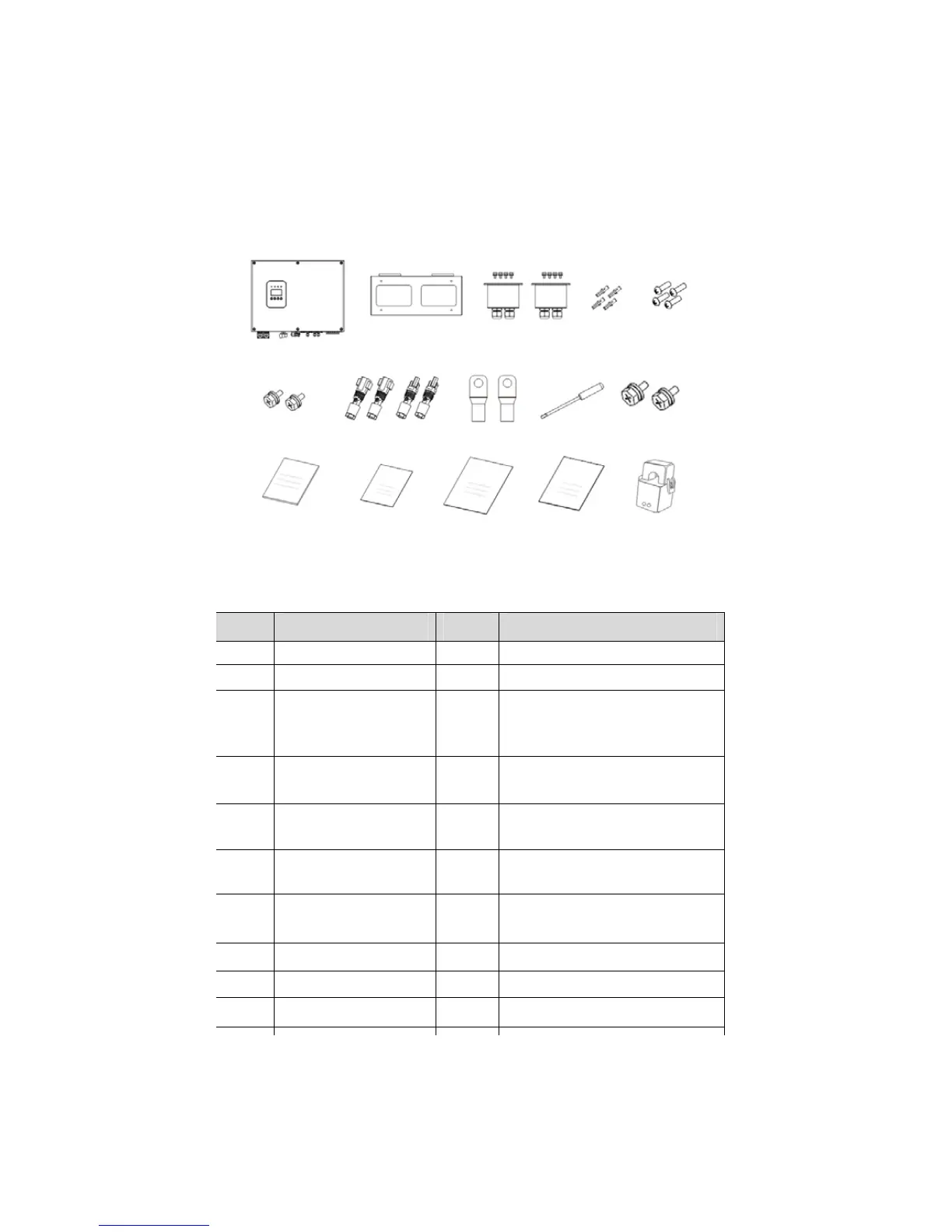

Figure 3
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
