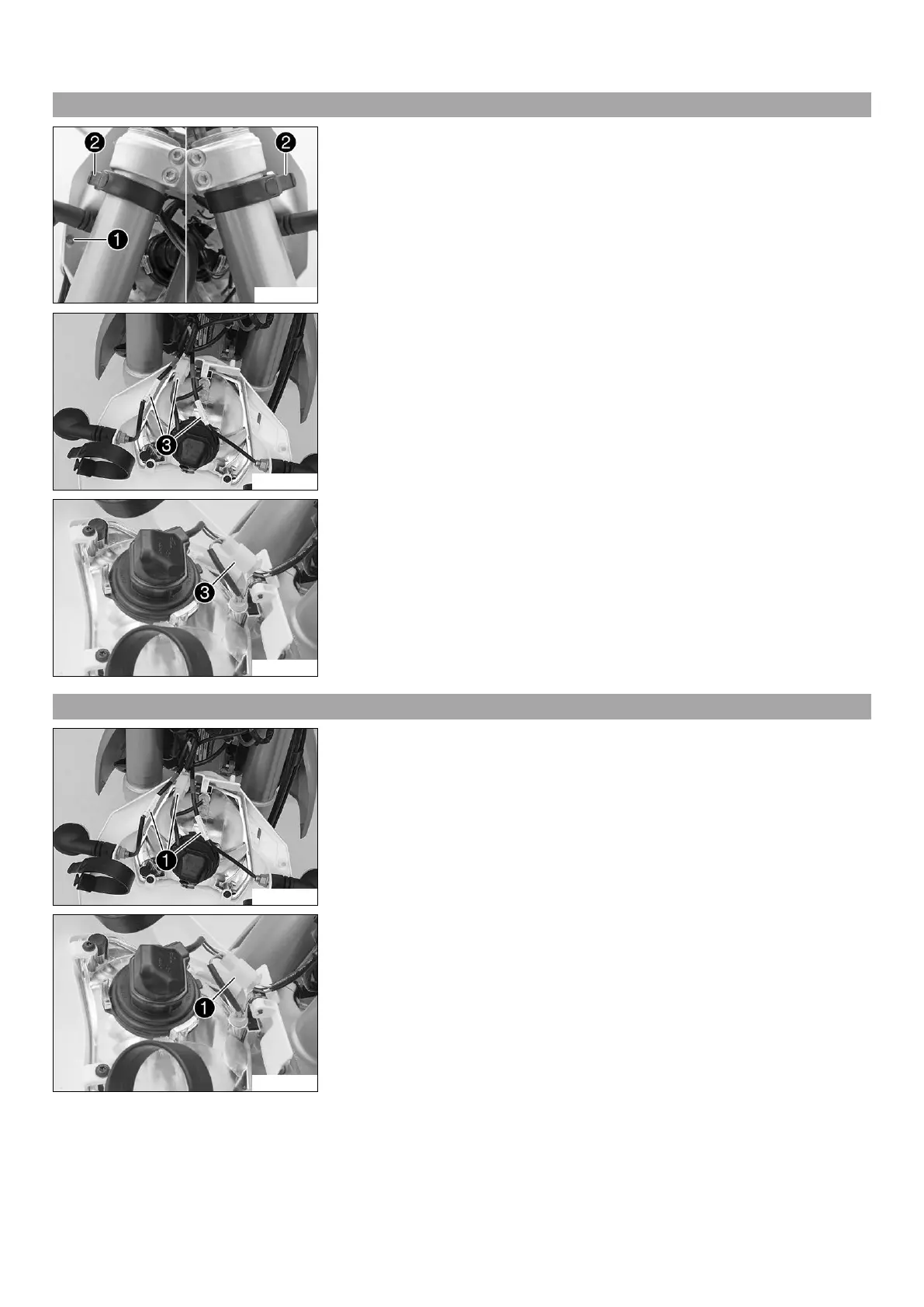

15 ELECTRICAL SYSTEM 98
15.5 Removing the headlight mask with the headlight
602762-10
Switch off all power consumers and switch off the engine.
Remove screw
and take off the clamp.
Release rubber straps
. Slide the headlight mask up and swing it forward.
M00589-10
(All EXC models)
Detach plug-in connectors
and take off the headlight mask with the head-
light.
M00590-10
(All XC-W models)
Detach plug-in connector
and take off the headlight mask with the head-
light.
15.6 Refitting the headlight mask with the headlight
M00589-11
Main work
(All EXC models)
Connect plug-in connectors
.
M00590-11
(All XC-W models)
Connect plug-in connector
.
