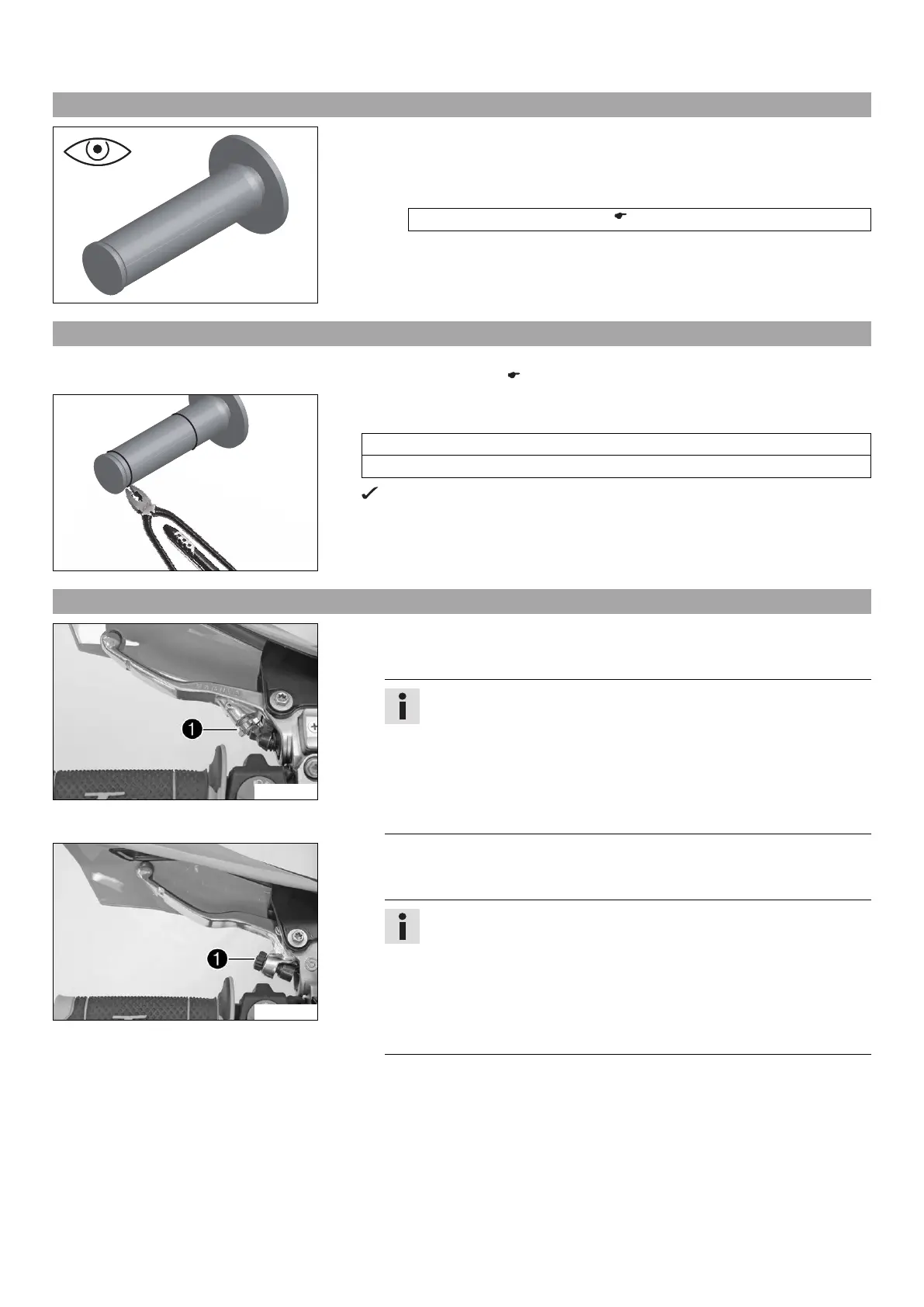

12 SERVICE WORK ON THE CHASSIS 77
12.41 Checking the rubber grip
401197-01
– Check the rubber grips on the handlebar for damage and wear and to ensure they
are firmly seated.
» If a rubber grip is damaged, worn, or loose:
– Change and secure the rubber grip.
Grip adhesive (00062030051) ( p. 144)
12.42 Additionally securing the rubber grip
Preparatory work
– Check the rubber grip. ( p. 77)
401198-01
Main work
– Secure the rubber grip at two points using the securing wire.
Securing wire (54812016000)
Wire twister forceps (U6907854)
The twisted wire ends face away from the hands and are bent toward the rub-
ber grip.
12.43 Adjusting the basic position of the clutch lever
102286-10
(All 125/200 models)
– Adjust the basic setting of the clutch lever to your hand size by turning adjust-
ing screw

.
Info
When the adjusting screw is turned counterclockwise, the clutch lever
moves away from the handlebar.
When the adjusting screw is turned clockwise, the clutch lever moves
closer to the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply any force.
Do not make any adjustments while riding!
102287-10
(All 250/300 models)
– Adjust the basic setting of the clutch lever to your hand size by turning adjust-
ing screw

.
Info
When the adjusting screw is turned counterclockwise, the clutch lever
moves closer to the handlebar.
When the adjusting screw is turned clockwise, the clutch lever moves
away from the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply any force.
Do not make any adjustments while riding!
