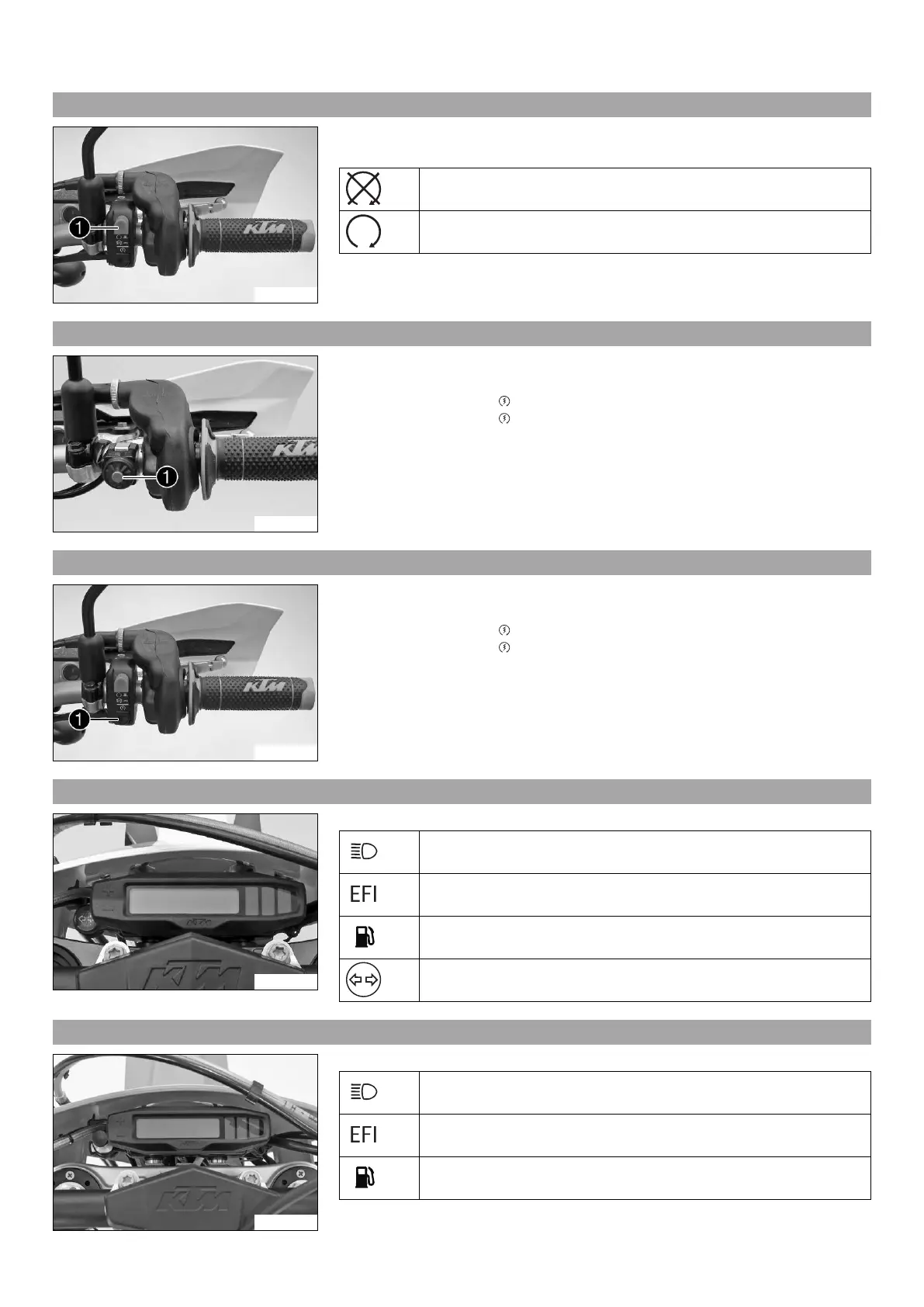

6 CONTROLS 15
6.10 Emergency OFF switch (EXC AU)
602728-10
The emergency OFF switch
is fitted on the right side of the handlebar.
Possible states
Ignition off In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
Ignition on In this position, the ignition circuit is closed, and the
engine can be started.
6.11 Electric starter button (All 200/250/300 EU/US models, 300 EXC BR)
602699-10
The electric starter button
is fitted on the right side of the handlebar.
Possible states
Electric starter button in basic position
Electric starter button pressed In this position, the electric starter is actuated.
6.12 Electric starter button (EXC AU)
602728-11
The electric starter button
is fitted on the right side of the handlebar.
Possible states
Electric starter button in basic position
Electric starter button pressed In this position, the electric starter is actuated.
6.13 Overview of indicator lamps (All EXC models)
602767-01
Possible states
The high beam indicator lamp lights up blue The high beam is
switched on.
EFI warning lamp (MIL) inoperative
Low fuel warning lamp inoperative
Turn signal indicator light flashes green The turn signal is switched
on.
6.14 Overview of indicator lamps (All XC-W models)
102252-01
Possible states
The high beam indicator lamp lights up blue inoperative
EFI warning lamp (MIL) inoperative
Low fuel warning lamp inoperative
