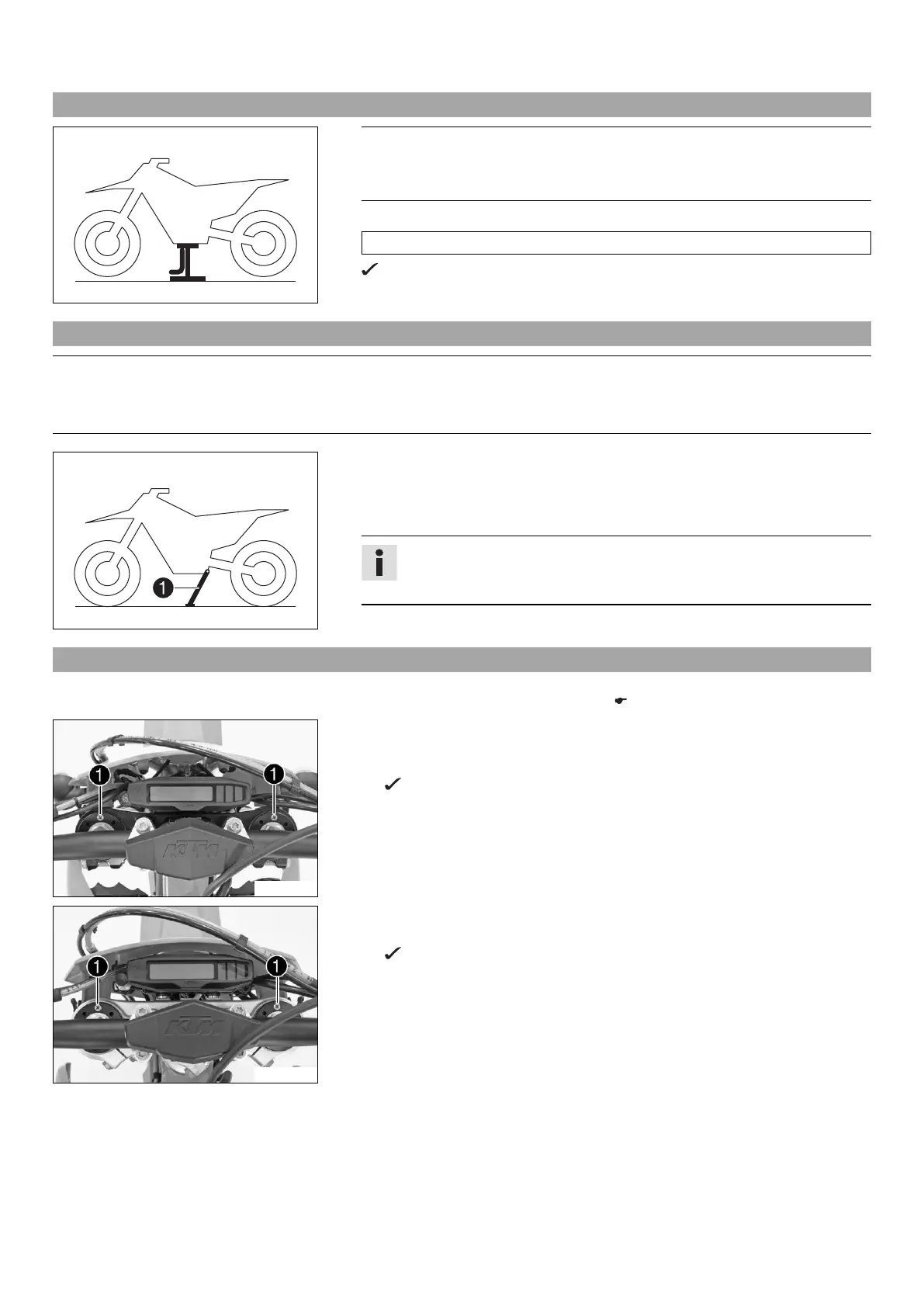

12 SERVICE WORK ON THE CHASSIS 52
12.1 Raising the motorcycle with the lift stand
401942-01
Note
Danger of damageThe parked vehicle may roll away or fall over.
Always place the vehicle on a firm and even surface.
Raise the motorcycle at the frame underneath the engine.
Lift stand (54829055000)
Neither wheel is in contact with the ground.
Secure the motorcycle against falling over.
12.2 Removing the motorcycle from the lift stand
Note
Danger of damageThe parked vehicle may roll away or fall over.
Always place the vehicle on a firm and even surface.
401943-10
Remove the motorcycle from the lift stand.
Remove the lift stand.
To park the motorcycle, press side stand
to the ground with your foot and lean
the motorcycle on it.
Info
When you are riding, the side stand must be folded up and secured with the
rubber band.
12.3 Bleeding the fork legs
Preparatory work
Raise the motorcycle with the lift stand. ( p. 52)
102259-10
Main work
(EXC EU/AU)
Release bleeder screws
.
Any excess pressure escapes from the interior of the fork.
Tighten the bleeder screws.
102260-10
(200 XCW US, 250 XCW US, 300 EXC BR, 300 XCW US)
Release bleeder screws
.
Any excess pressure escapes from the interior of the fork.
Tighten the bleeder screws.
