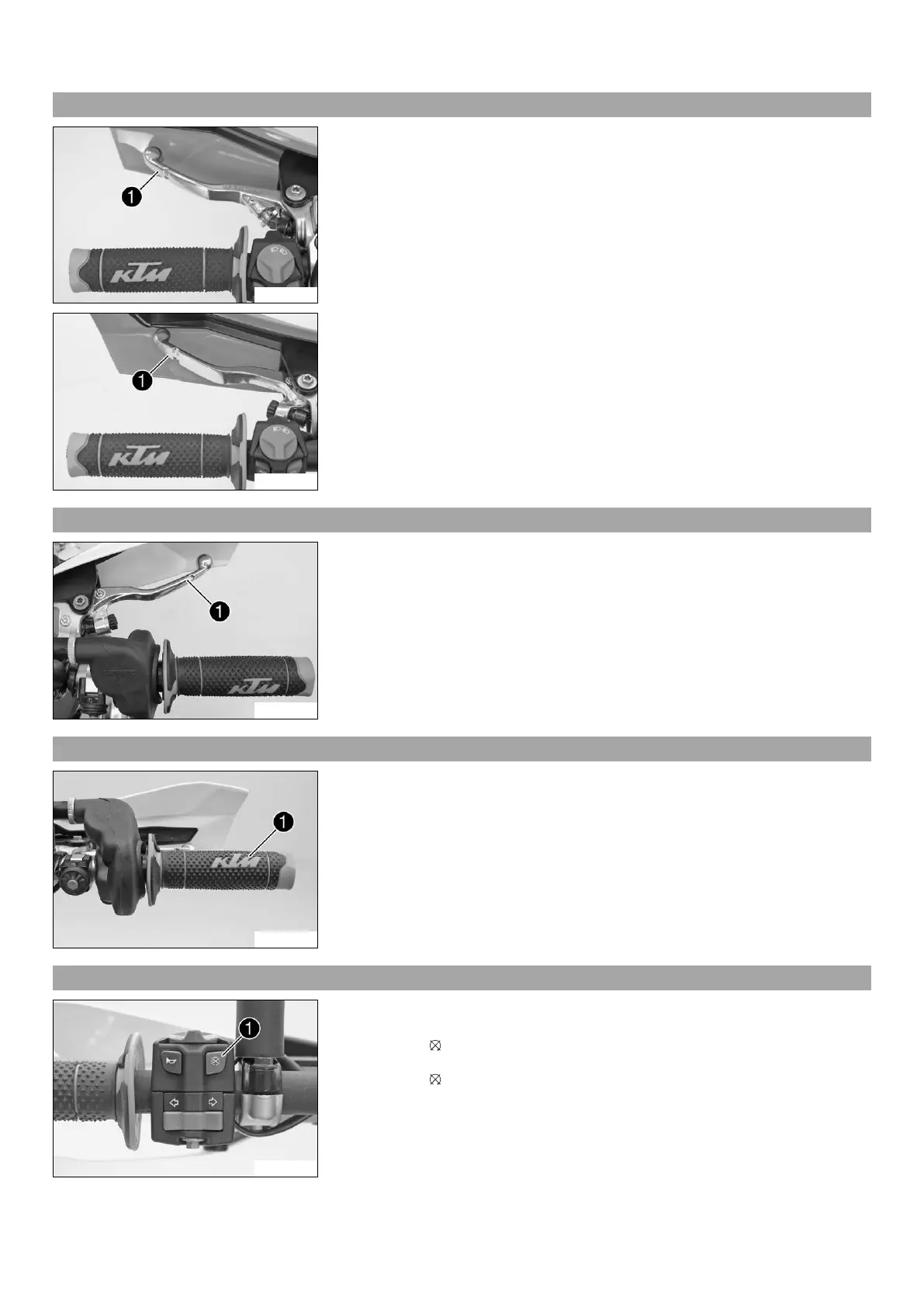

6 CONTROLS 13
6.1 Clutch lever
102251-10
(All 125/200 models)
The clutch lever
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
102265-10
(All 250/300 models)
The clutch lever
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
602697-10
Hand brake lever
is located on the right side of the handlebar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
602698-10
Throttle grip
is fitted on the right side of the handlebar.
6.4 Kill switch (All EXC models)
102044-10
The kill switch
is fitted on the left side of the handlebar.
Possible states
Kill switch in the basic position In this position, the ignition circuit is closed
and the engine can be started.
Kill switch is pressed In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
