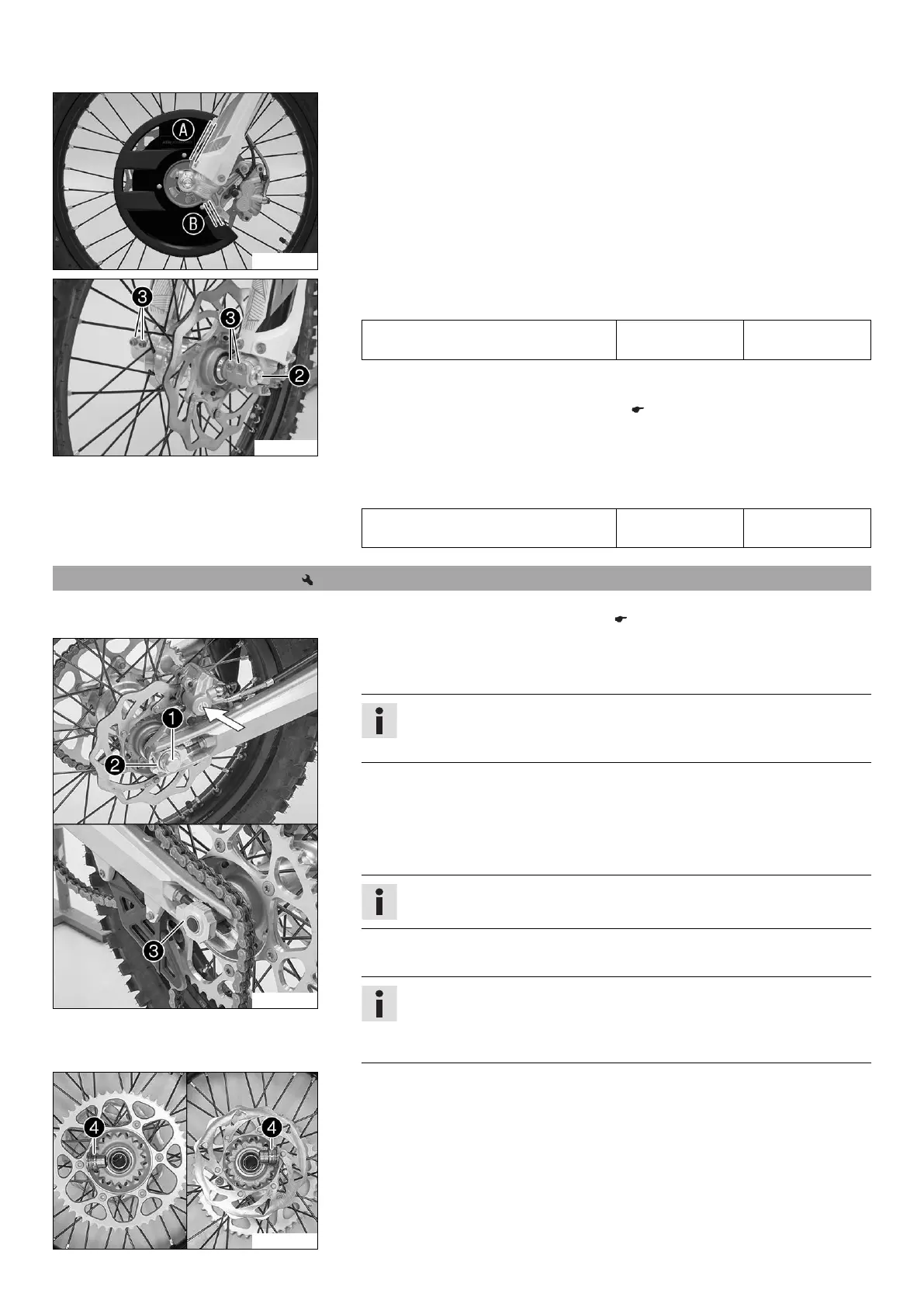

14 WHEELS, TIRES 91
M01022-10
(Six Days)
Align the brake disc guard so that gaps
and
are the same size.
102291-11
Mount and tighten screw
.
Guideline
Screw, front wheel spindle M20x1.5 35 Nm
(25.8 lbf ft)
Operate the hand brake lever several times until the brake linings are lying correctly
against the brake disc.
Remove the motorcycle from the lift stand. ( p. 52)
Pull the front wheel brake and push down hard on the fork several times to align
the fork legs.
Tighten screws
.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
14.3 Removing the rear wheel
Preparatory work
Raise the motorcycle with the lift stand. ( p. 52)
M00123-10
Main work
Press the brake caliper onto the brake disc by hand in order to push back the brake
piston.
Info
Make sure when pushing back the brake piston that you do not press the
brake caliper against the spokes.
Remove nut
.
Remove chain adjuster
. Withdraw wheel spindle
only enough to allow the
rear wheel to be pushed forward.
Push the rear wheel forward as far as possible. Remove the chain from the rear
sprocket.
Info
Protect the components against damage by covering them.
Holding the rear wheel, withdraw the wheel spindle. Take the rear wheel out of the
swingarm.
Info
Do not operate the foot brake when the rear wheel is removed.
Always lay the wheel down in such a way that the brake disc is not dam-
aged.
M00124-10
Remove spacers
.
