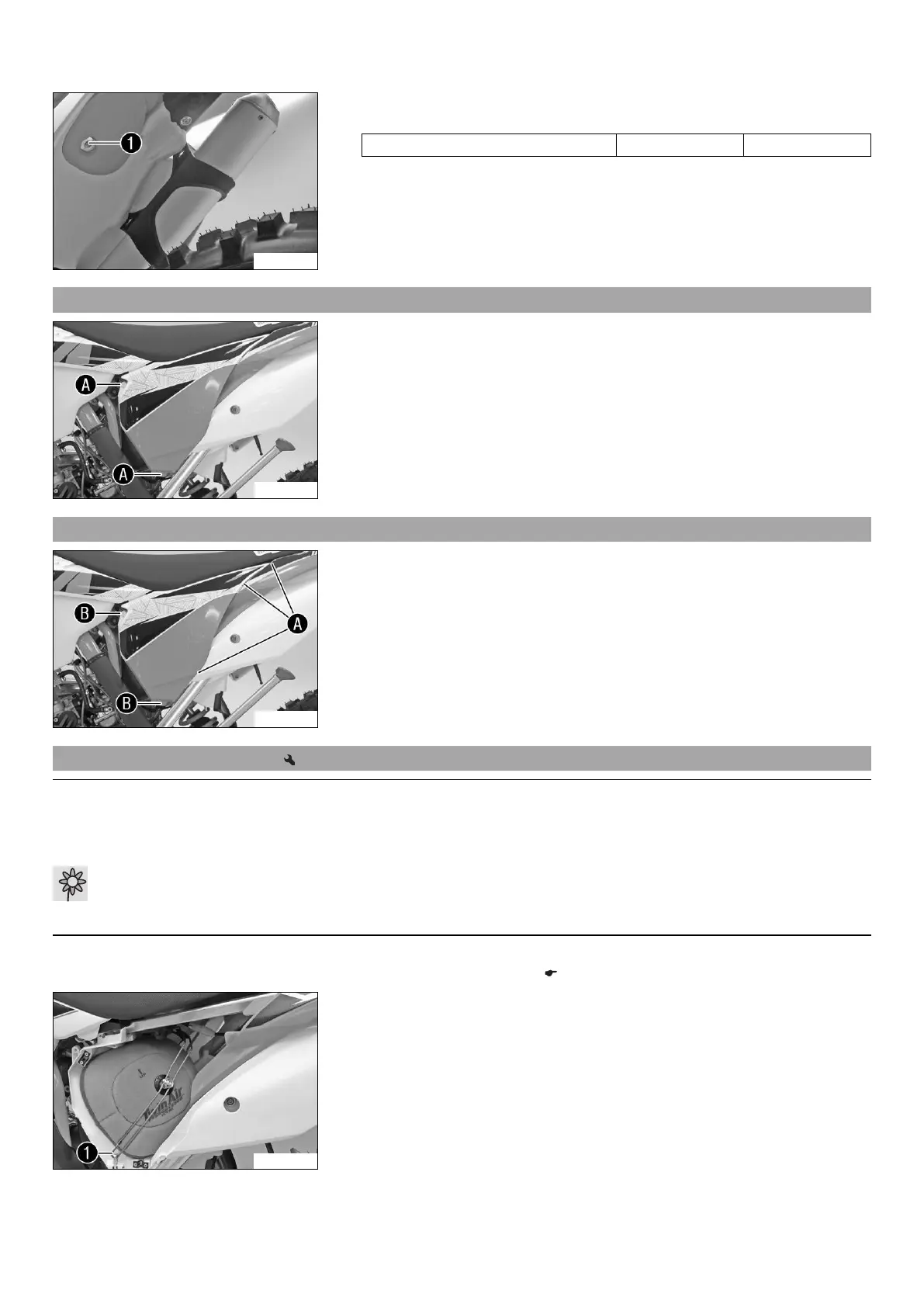

12 SERVICE WORK ON THE CHASSIS 67

B00817-10

–

Mount and tighten screw



of the seat fixation.

Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

12.22 Removing the air filter box lid

102283-10

–

Pull off the air filter box lid in area



sideways and remove it toward the front.

12.23 Installing the air filter box lid

102283-11

–

Insert the air filter box lid into the rear area



and clip it into the front area



12.24 Removing the air filter

Note

Engine failure Unfiltered intake air has a negative effect on the service life of the engine.

– Never operate the vehicle without an air filter as dust and dirt will enter the engine and lead to increased wear.

Warning

Environmental hazard Hazardous substances cause environmental damage.

– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.

Preparatory work

– Remove the air filter box lid. ( p. 67)

B02160-10

Main work

–

Detach air filter holder



at the bottom and swing it to one side. Remove the air

filter with the air filter support.

– Remove the air filter from the air filter support.
