11 TUNING THE CHASSIS 51

M00993-11

(200 XC‑W US, 250 XC‑W US, 300 EXC BR, 300 XC‑W US)

–

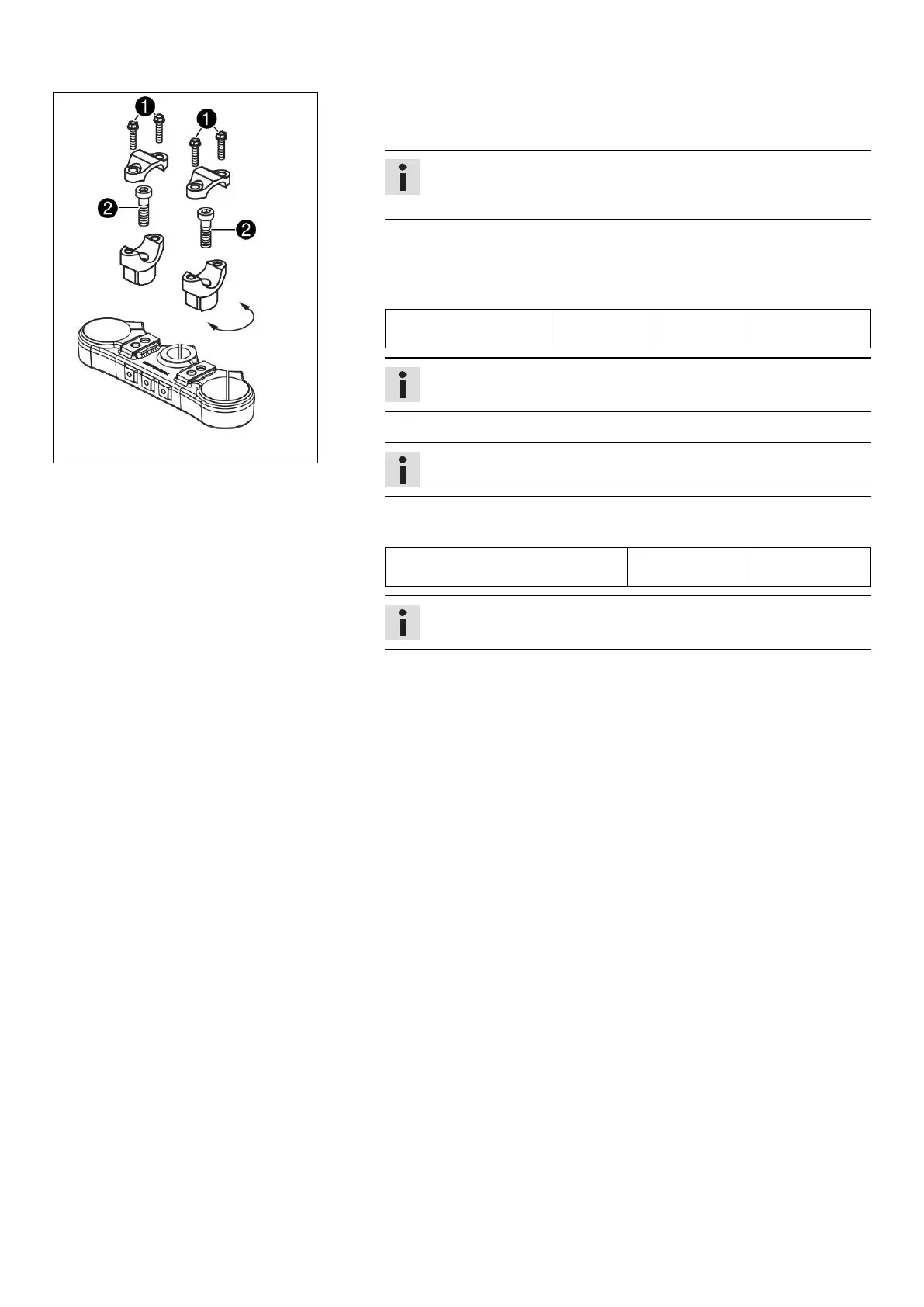

Remove screws



. Take off the handlebar clamps. Remove the handlebar and

lay it to one side.

Info

Cover the components to protect them against damage.

Do not kink the cables and lines.

–

Remove screws



. Remove the handlebar support.

– Place the handlebar support in the required position. Mount and tighten

screws



Guideline

Screw, handlebar support M10 40 Nm

(29.5 lbf ft)

Loctite

243™

Info

Position the left and right handlebar supports evenly.

– Position the handlebar.

Info

Make sure the cables and wiring are positioned correctly.

–

Position the handlebar clamps. Mount screws



and tighten evenly.

Guideline

Screw, handlebar clamp M8 20 Nm

(14.8 lbf ft)

Info

Make sure the gap widths are even.
