KTM 200 XC-W User Manual

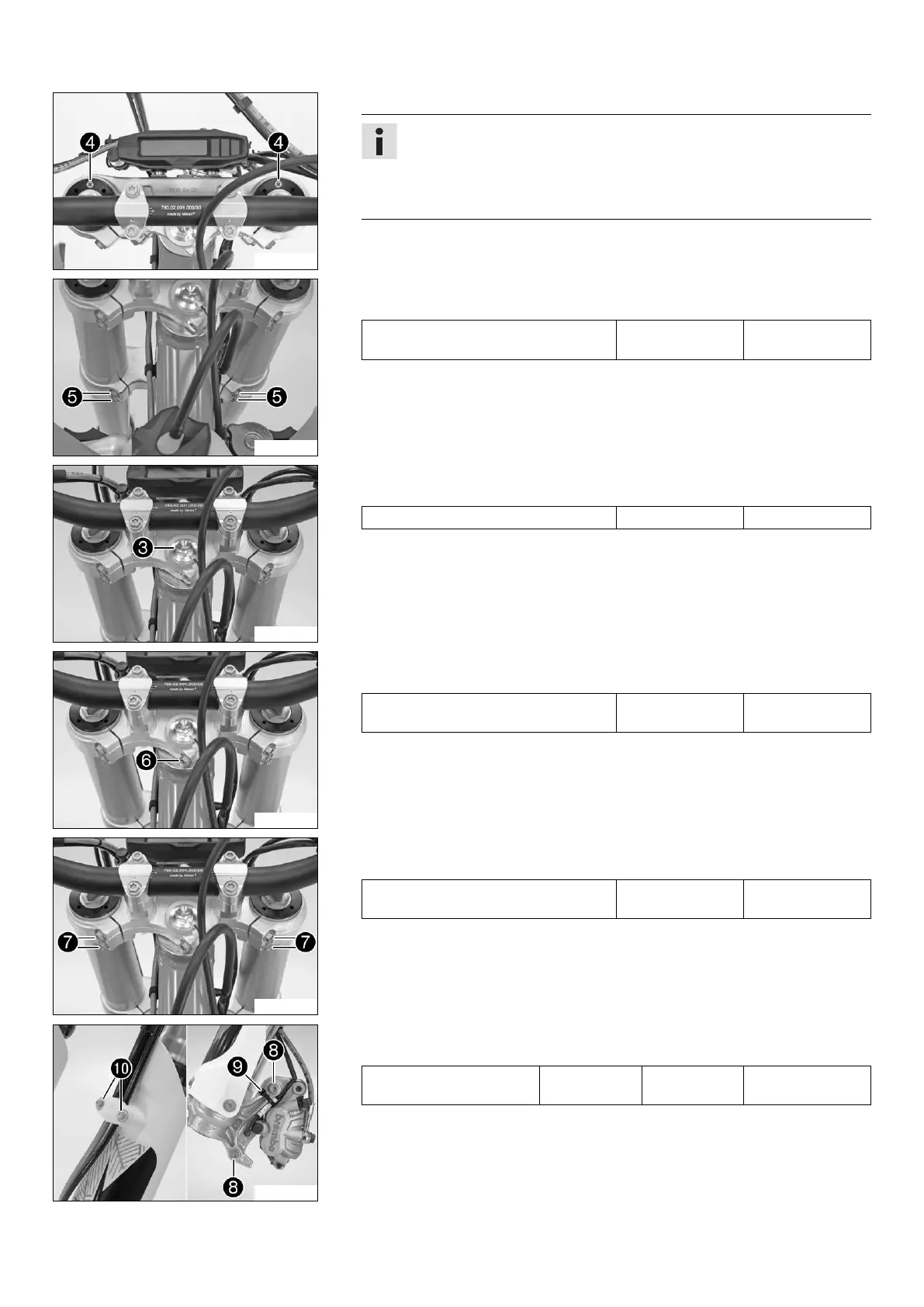

12 SERVICE WORK ON THE CHASSIS 58
102269-10
– Position the fork legs.
Info
Grooves are milled into the side of the upper end of the fork legs. The sec-
ond milled groove (from the top) must be flush with the top edge of the
upper triple clamp.
Position bleeder screws

toward the front.
102270-10
–
Tighten screws

.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
102271-10
–
Tighten screw

.
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
102272-10
–
Tighten screw

.
Guideline
Screw, top steering stem M8 20 Nm
(14.8 lbf ft)
102272-11
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
102261-12
–
Position the brake caliper. Mount and tighten screws

.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
–
Mount cable binder

.
– Position the brake line and wiring harness. Put on the clamp and mount and
tighten screws

.

KTM 200 XC-W Specifications

General

Starter	Electric Starter
Transmission	6-speed
Fuel System	Keihin PWK 36S AG
Ignition	Kokusan
Rear Suspension	WP Xplor PDS shock absorber
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Seat Height	960 mm
Engine Type	2-stroke
Bore x Stroke	64.0 mm x 60.0 mm
