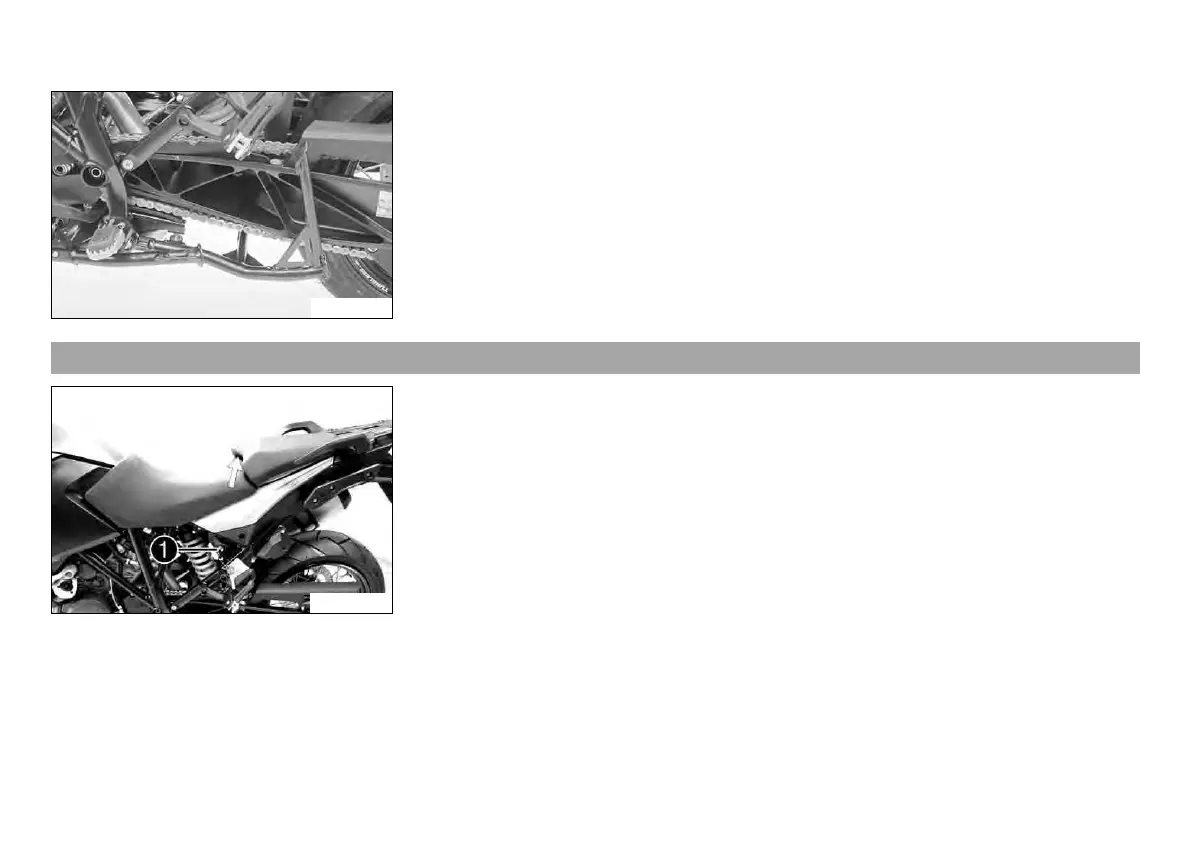

13 SERVICE WORK ON THE CHASSIS 103
202376-10
Unlock the steering and move the vehicle forward with both hands on the handlebar.
While the vehicle tips off of the center stand, activate the front brake to stop the vehi-
cle from rolling away.
Check that the center stand is folded all the way up.
13.3 Removing the passenger seat
G00574-10
Insert the ignition key in seat lock
1
and turn it clockwise.
Raise the front of the passenger seat, pull it toward the tank, and remove it upward.
Remove the ignition key.
