KTM 2014 1190 Adventure User Manual

8 ERGONOMICS 69

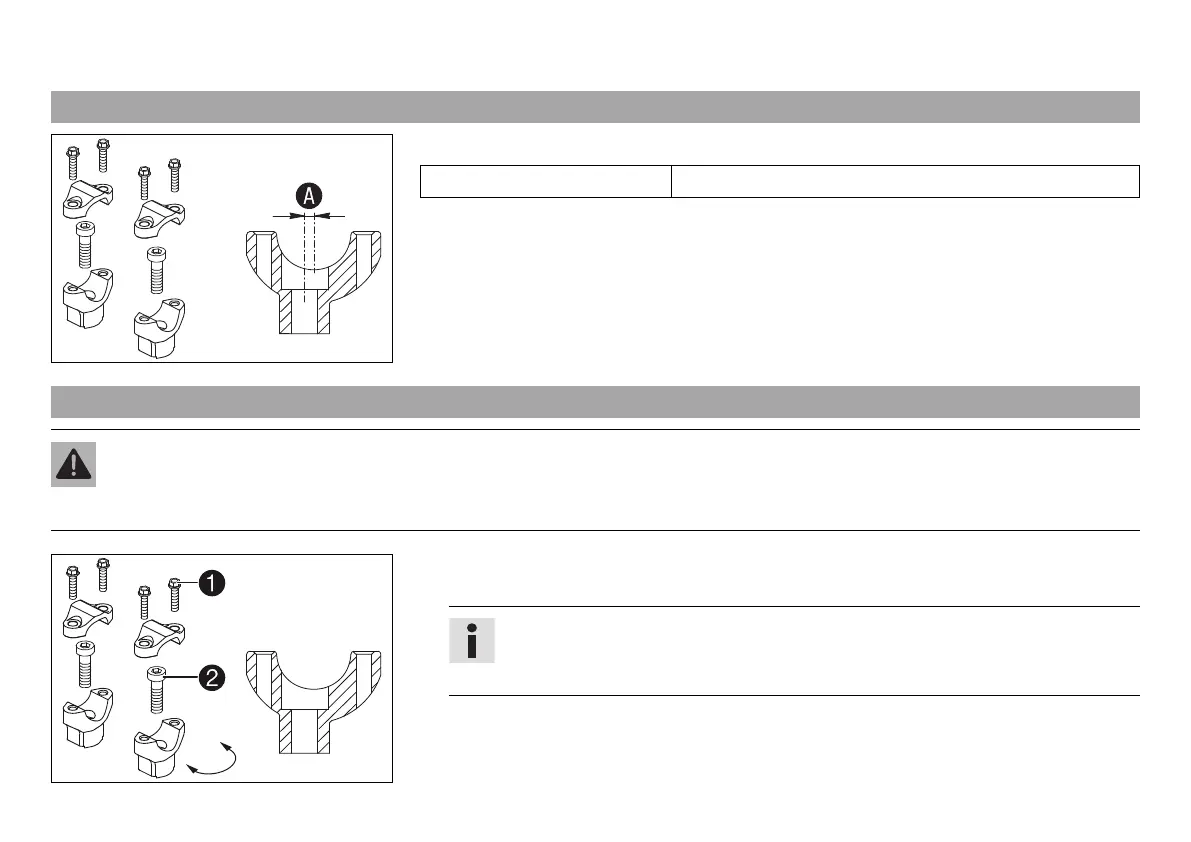

8.2 Handlebar position
401666-11
The holes on the handlebar support are placed at a distance of
A
from the center.
Hole distance
A
3.5 mm (0.138 in)
The handlebar can be mounted in two different positions. In this way, the handlebar can be
mounted in the position that is most comfortable for the rider.
8.3 Adjusting the handlebar position x
Warning
Danger of accidents Handlebar breakage.
– If the handlebar is bent or straightened it will cause material fatigue, and the handlebar can break. Always replace handlebar.
308080-01
–
Remove screws
1
. Remove the handlebar clamps. Remove the handlebar and lay it to
one side.
Info
Protect the motorcycle and its attachments against damage by covering them.
Do not bend the cables and lines.
–
Remove screws
2
. Remove the handlebar support.
–
Place the handlebar support in the required position. Mount and tighten screws
2
.

KTM 2014 1190 Adventure Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Compression Ratio	12.5:1
Torque	125 Nm @ 7500 rpm
Fuel System	Electronic Fuel Injection
Transmission	6-speed
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Front Tire	120/70 ZR 19
Rear Tire	170/60 ZR 17
Dry Weight	217 kg
Fuel Capacity	23 liters
Power	150 hp (110 kW) @ 9500 rpm
Clutch	PASC slipper clutch, hydraulically operated
Front Brake	2 x Brembo 320 mm discs, 4-piston radial calipers
Rear Brake	Brembo 267 mm disc, 2-piston caliper
ABS	Bosch 9ME Combined ABS
Seat Height	860 mm
