KTM 2014 1190 Adventure User Manual

15 WHEELS, TIRES 142
S00365-10
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the
brake discs.
– Always keep the brake discs free of oil and grease, and clean them with
brake cleaner when necessary.
–

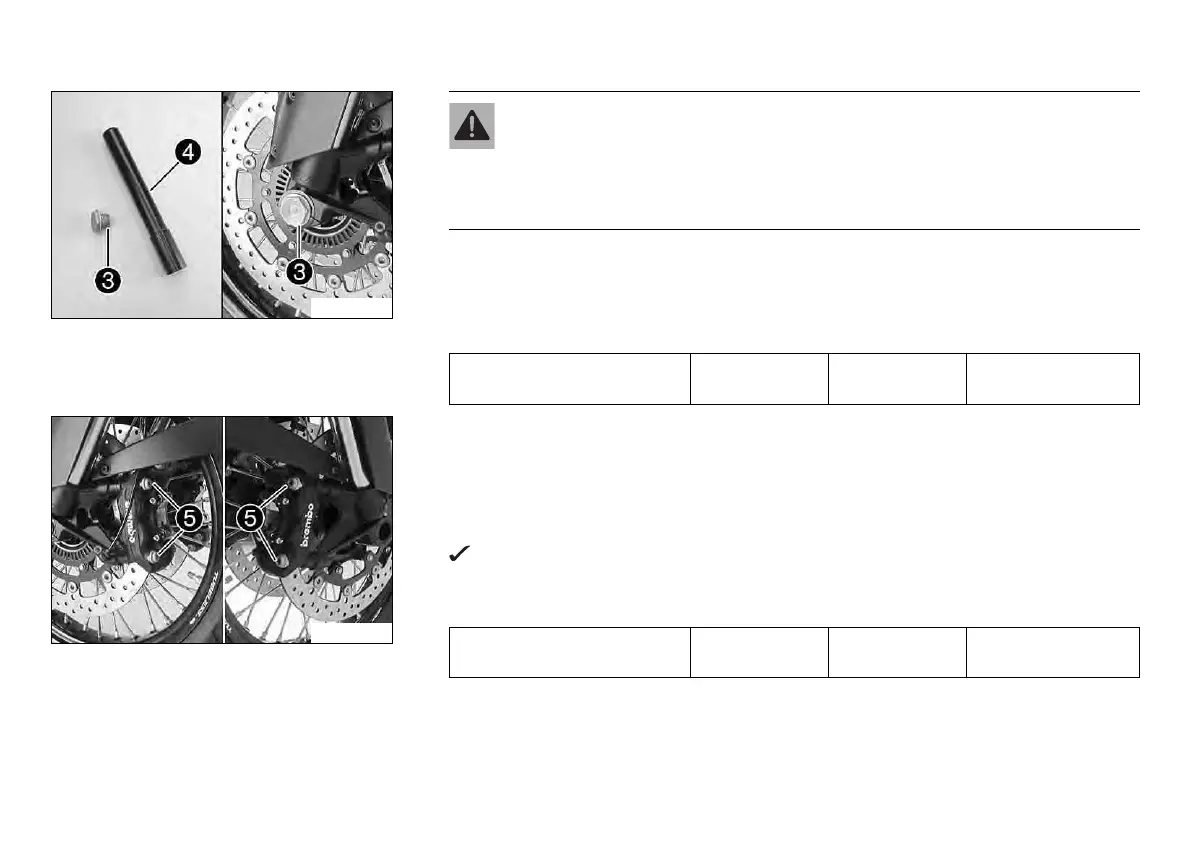

Clean screw
3
and wheel spindle
4
.
– Lift the front wheel into the fork, position it, and insert the wheel spindle.
–
Mount and tighten screw
3
.
Guideline
Screw, front wheel spindle M25x1.5 45 Nm
(33.2 lbf ft)
Thread greased
S00363-11
– Position the brake calipers and check that the brake linings are seated correctly.
–
Mount screws
5
on both brake calipers but do not tighten yet.
– Operate the hand brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point. Fix the hand brake lever in the activated posi-
tion.
The brake calipers straighten.
–
Tighten screws
5
on both brake calipers.
Guideline
Screw, front brake caliper M10 45 Nm
(33.2 lbf ft)
Loctite
®
243™
– Remove the fixation of the hand brake lever.

KTM 2014 1190 Adventure Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Compression Ratio	12.5:1
Torque	125 Nm @ 7500 rpm
Fuel System	Electronic Fuel Injection
Transmission	6-speed
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Front Tire	120/70 ZR 19
Rear Tire	170/60 ZR 17
Dry Weight	217 kg
Fuel Capacity	23 liters
Power	150 hp (110 kW) @ 9500 rpm
Clutch	PASC slipper clutch, hydraulically operated
Front Brake	2 x Brembo 320 mm discs, 4-piston radial calipers
Rear Brake	Brembo 267 mm disc, 2-piston caliper
ABS	Bosch 9ME Combined ABS
Seat Height	860 mm
