10 TUNING THE CHASSIS
34
Info
Turn clockwise to increase the damping; turn counter-
clockwise to reduce damping when the shock absorber
rebounds.

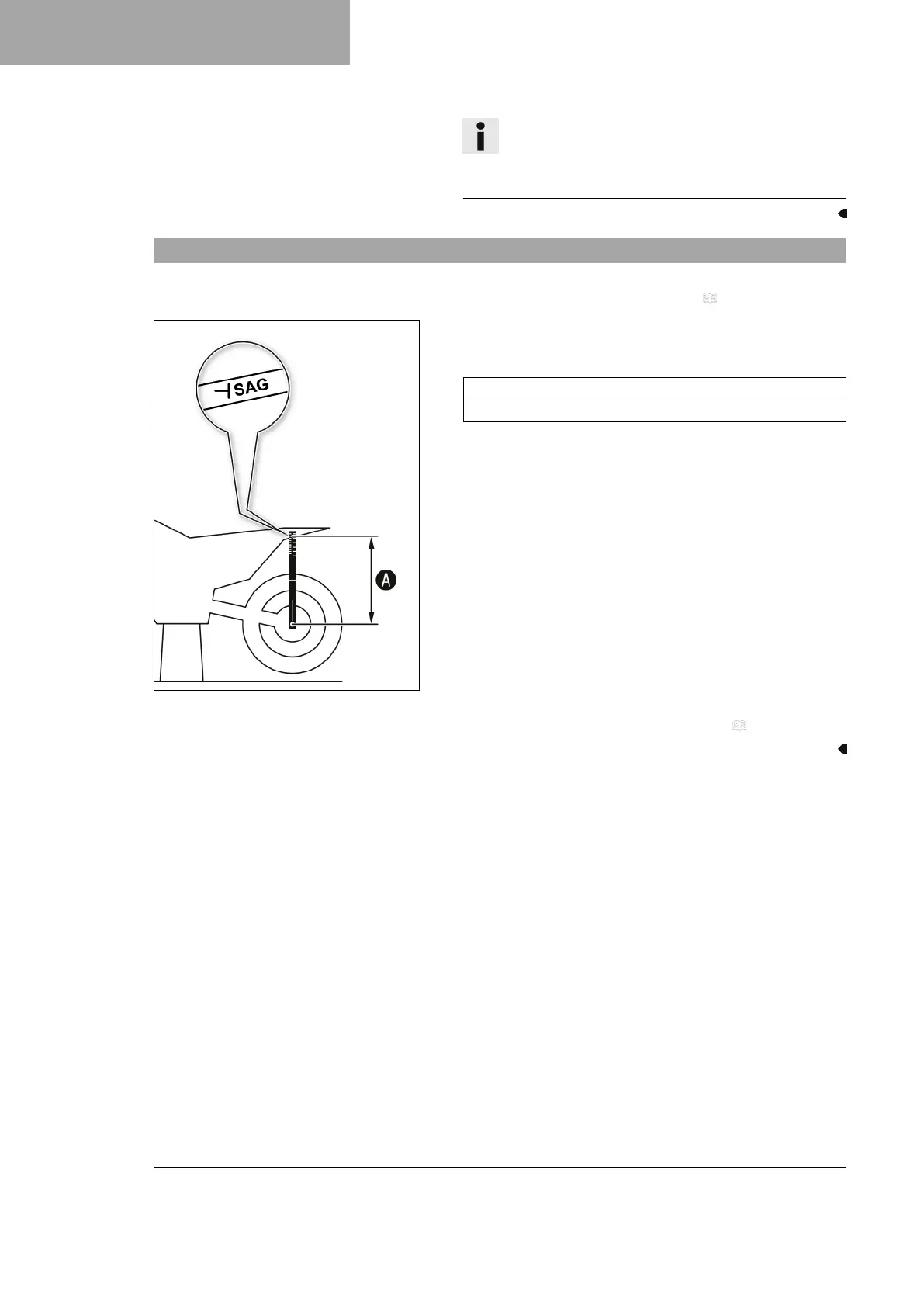

10.7 Measuring the rear wheel dimension unloaded
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 42)
402415-10
Main work
– Position the sag gage in the rear axle and measure the
distance to marking SAG on the rear fender.
Sag gauge (00029090500)
Sag gage pin (00029990010)
–
Note down the value as dimension
A
.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 42)
