When disconnecting, excess pressure will escape from the
hose – the fork leg itself does not lose any air.
The fork airpump indicator switches off automatically after
80 seconds.
– Mount the protection cap.
Info
Only tighten the protection cap by hand.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 42)

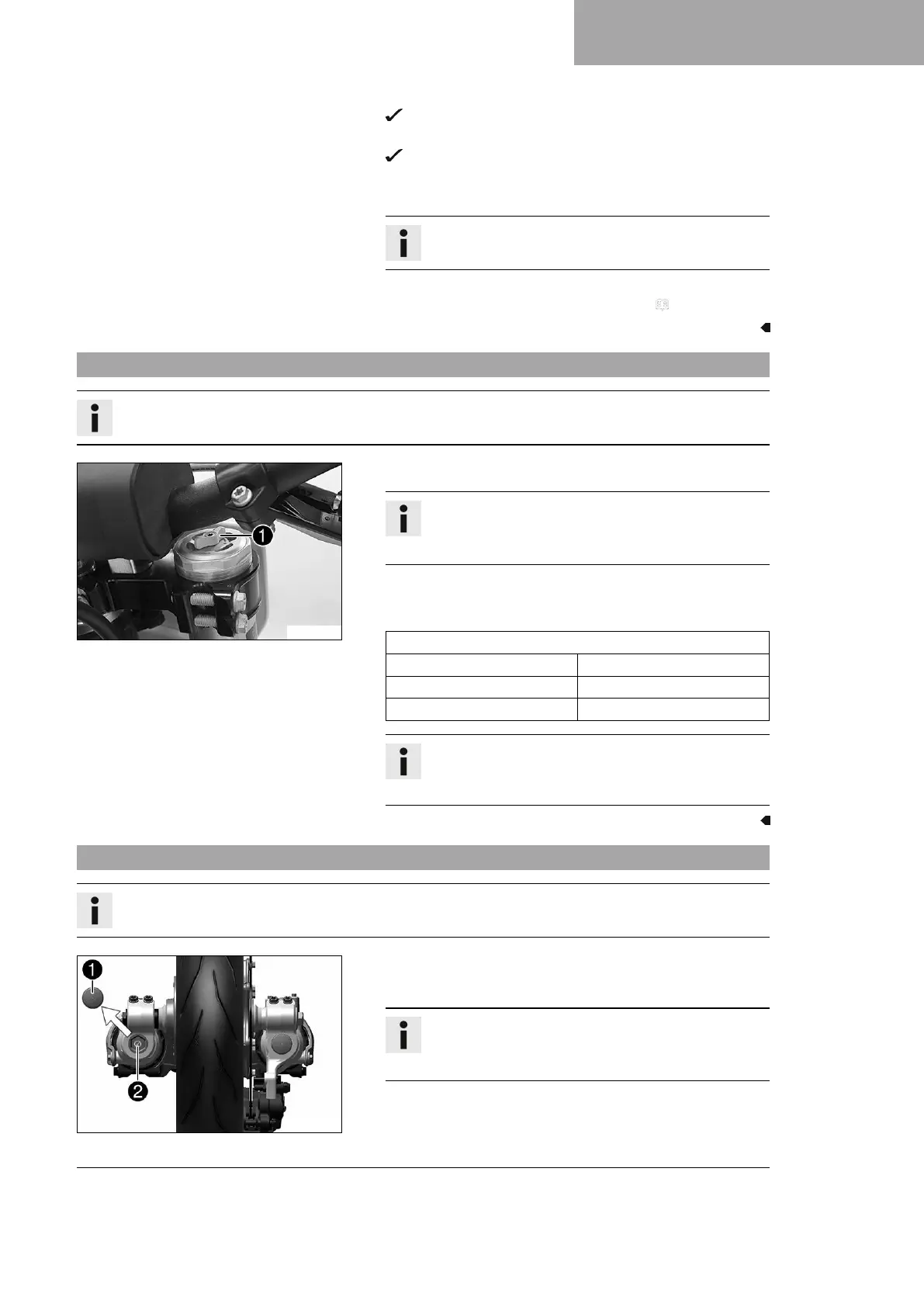

10.14 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
V01856-10
–
Turn adjusting screw
1
clockwise all the way.
Info
Adjusting screw
1
is located at the upper end of the
right fork leg.
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Compression damping
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping during compression.
10.15 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
M01100-11
–
Take off protection cap
1
.
–
Turn adjusting screw
2
clockwise all the way.
Info
Adjusting screw
2
is located at the lower end of the
right fork leg.
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
