KTM 450 SMR 2021 - Installing the Lower Triple Clamp

11 SERVICE WORK ON THE CHASSIS
46
V01432-10

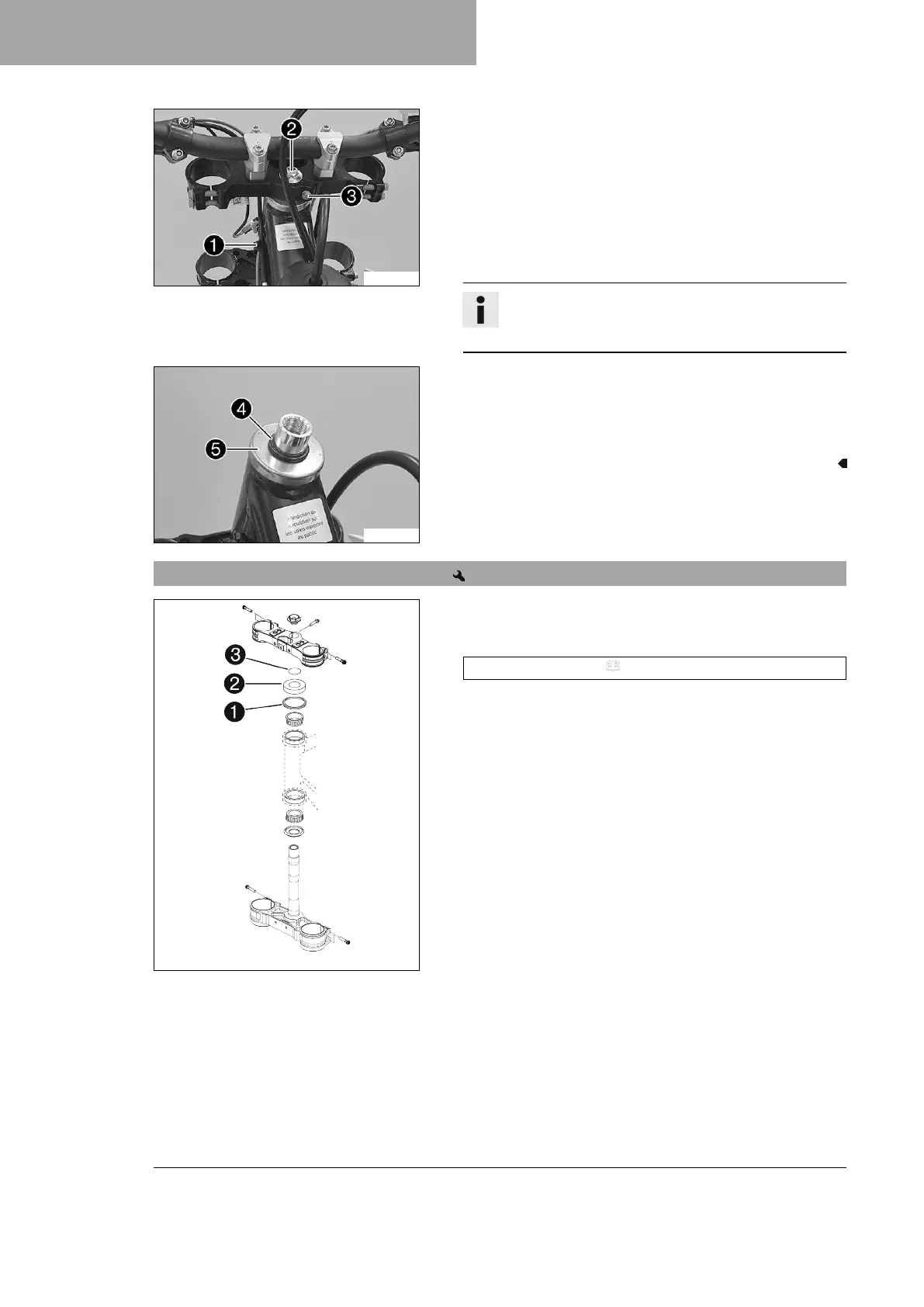

Main work
– Remove indicator lamp holder.
–
Open cable holder
1
on the left and detach the wiring har-
ness.
–
Remove screw
2
.
–
Remove screw
3
.
– Take off the upper triple clamp with the handlebar and place
to one side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
V01433-10
–
Remove O-ring
4
.
–
Remove protective ring
5
.
– Remove the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
11.10 Installing the lower triple clamp
800221-10
Main work
– Clean the bearing and sealing elements, check for damage,
and grease.
High viscosity grease ( p. 128)
– Insert the lower triple clamp with the steering stem. Mount
upper steering head bearing.
–
Check whether upper steering head seal
1
is correctly posi-
tioned.
–
Slide on protective ring
2
and O-ring
3
.
