KTM 450 SMR 2021 - Changing Main Fuse

14 ELECTRICAL SYSTEM
94
Finishing work
– Install the 12 V battery. ( p. 92)
– Mount the seat. ( p. 55)
14.4 Changing main fuse
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Info
The main fuse protects all electrical power consumers of the vehicle. It is located in the starter relay hous-
ing under the seat.
Preparatory work
– Remove the seat. ( p. 55)

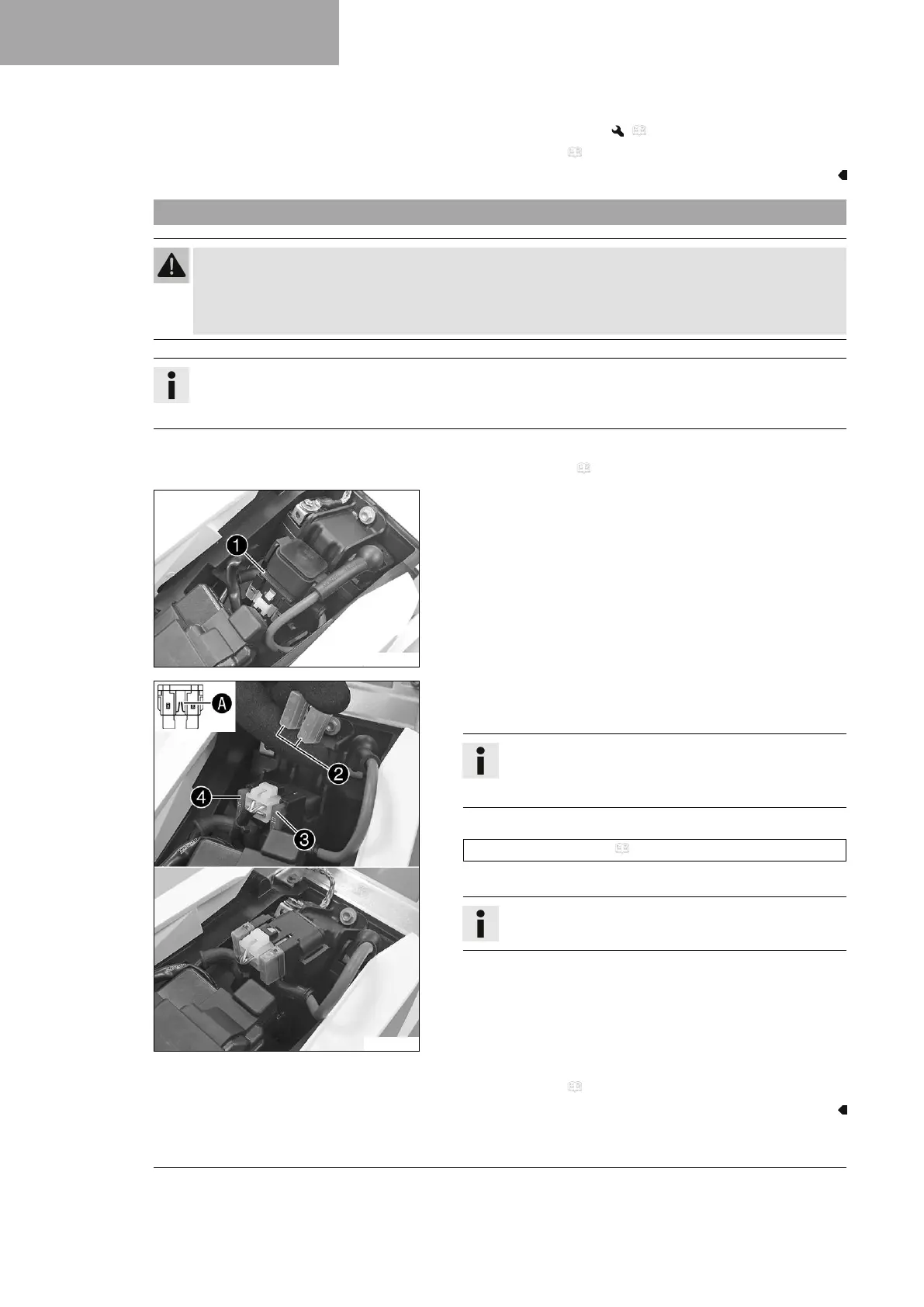

F00136-10
Main work
–
Pull starter relay
1
from the holder.
F00135-10
–
Take off protection caps
2
.
–
Remove faulty main fuse
3
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
4
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109110) ( p. 122)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and route the cable.
Finishing work
– Mount the seat. ( p. 55)
