11 SERVICE WORK ON THE CHASSIS
44

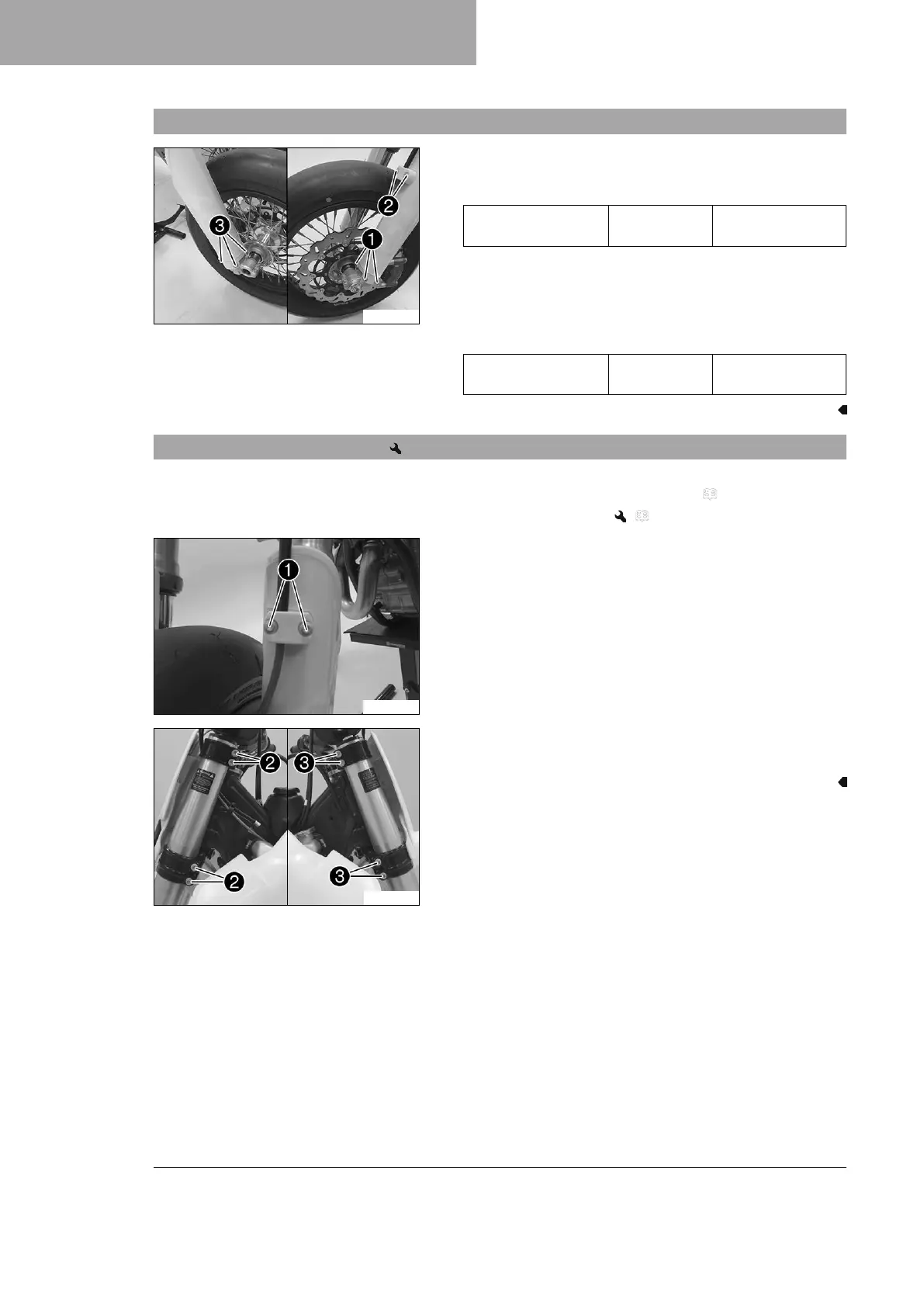

11.6 Installing the fork protector
G04200-11
– Position the fork protector on the left fork leg. Mount and
tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line and clamp. Mount and tighten
screws
2
.
– Position the fork protector on the right fork leg. Mount and
tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
11.7 Removing the fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 42)
– Remove the front wheel. ( p. 84)
G04201-10
Main work
–
Remove screws
1
and take off the clamp.
– Allow the brake caliper and brake line to hang loosely to the
side.
V01431-10
–
Loosen screws
2
. Remove the left fork leg.
–
Loosen screws
3
. Remove the right fork leg.
