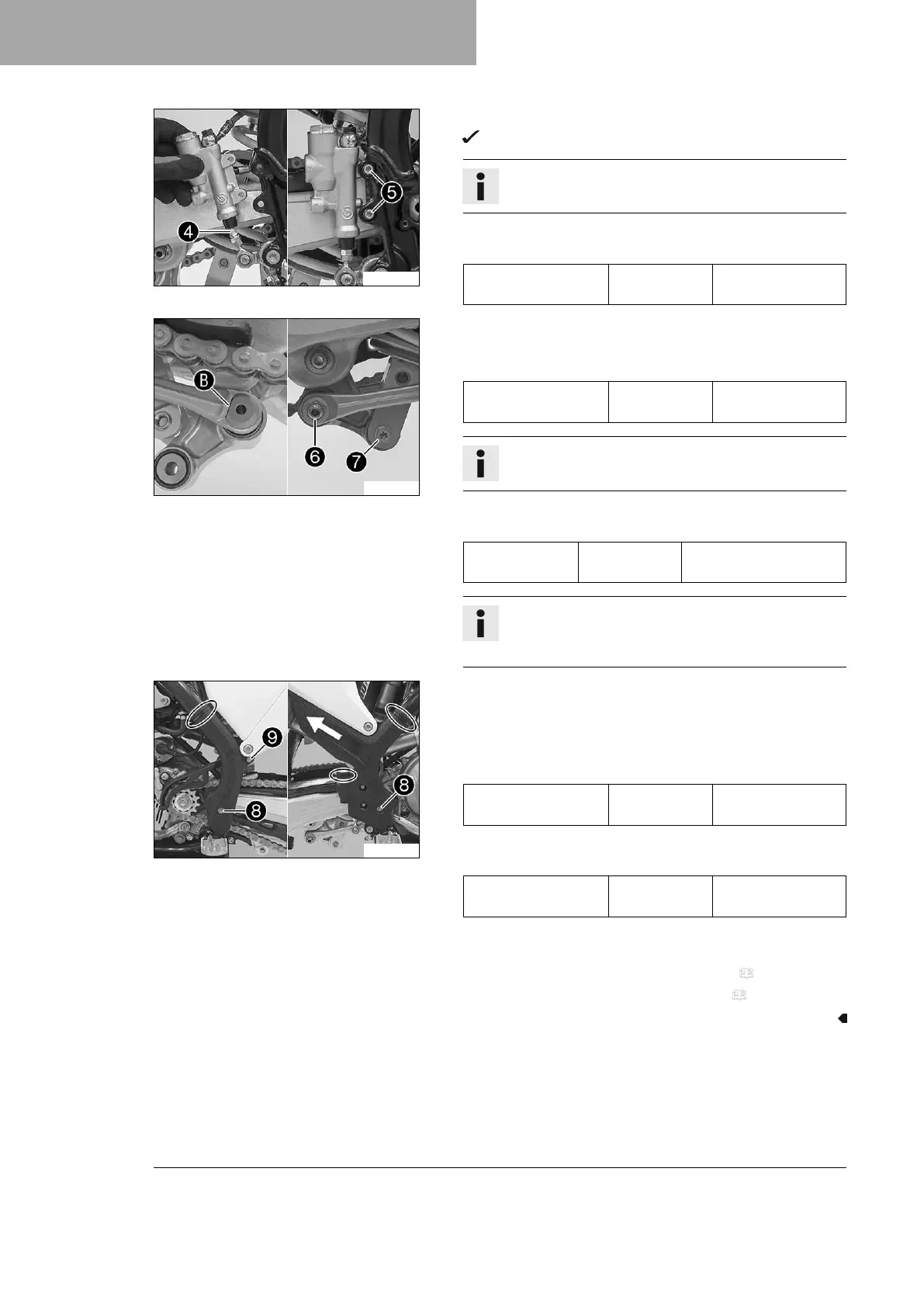

11 SERVICE WORK ON THE CHASSIS
54
K01098-01
– Position the foot brake cylinder.
Push rod
4
engages in the foot brake cylinder.
Info
Ensure that the dust boot is correctly seated.
–
Mount and tighten screws
5
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
F00425-10
– Position the angle lever and linkage lever.
–
Mount and tighten fitting
6
.
Guideline
Nut, linkage lever on
angle lever
M14x1.5 60 Nm (44.3 lbf ft)
Info
Pay attention to flat area
B
.
–
Mount and tighten screw
7
.
Guideline
Screw, bottom
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
Info
Raise the swingarm slightly to be able to mount the
screw more easily.
F01527-11
– Position the left frame protector.
– Insert the right frame protector from below and push it to the
rear.
–
Mount and tighten screws
8
with the washers.
Guideline
Screw, frame protec-
tor
M5 3 Nm (2.2 lbf ft)
–
Mount and tighten screw
9
.
Guideline
Screw, frame protec-
tor
M5 3 Nm (2.2 lbf ft)
– Mount the new cable ties.
Finishing work
– Check the free travel of the foot brake lever. ( p. 78)
– Remove the motorcycle from the lift stand. ( p. 42)
