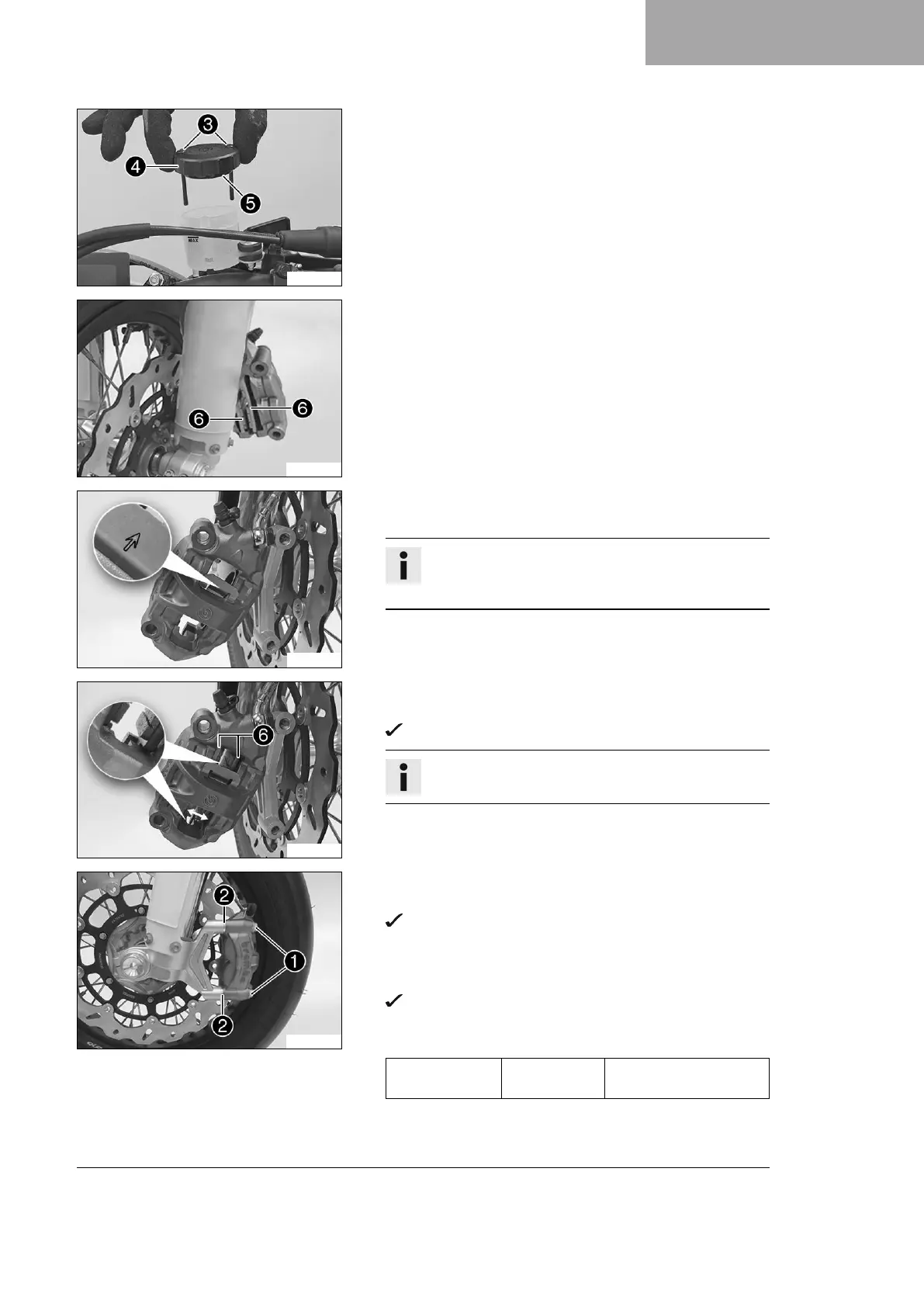

BRAKE SYSTEM 12
77
V01453-11
– Move the brake reservoir mounted on the handlebar to a hori-
zontal position.
–
Remove screws
3
.
–
Take off cover
4
with membrane
5
.
E01976-10
–
Press the brake piston back into the basic position and ensure
that brake fluid does not flow out of the brake fluid reservoir;
extract some if necessary.
–
Press together brake linings
6
and remove them from the
brake caliper.
F00418-10
– Clean the brake caliper and spring plate.
– Ensure that the spring plate is correctly positioned.
Info
The arrow on the spring plate points in the direction of
rotation of the brake disc.
F00419-10
–
Position the new brake linings
6
in the guides and press
toward the pistons.
The spring plate is seated correctly in the brake caliper.
Info
Always change the brake linings in pairs.
G04194-10
–
Position the brake caliper. Mount screws
1
with washers
2
but do not tighten yet.
The brake linings are correctly positioned.
– Operate the hand brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point. Fix the hand brake lever in the activated position.
The brake caliper straightens.
–
Tighten screws
1
.
Guideline
Screw, front
brake caliper
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
– Remove the locking piece of the hand brake lever.
