KTM 690 SMC R 2021 User Manual

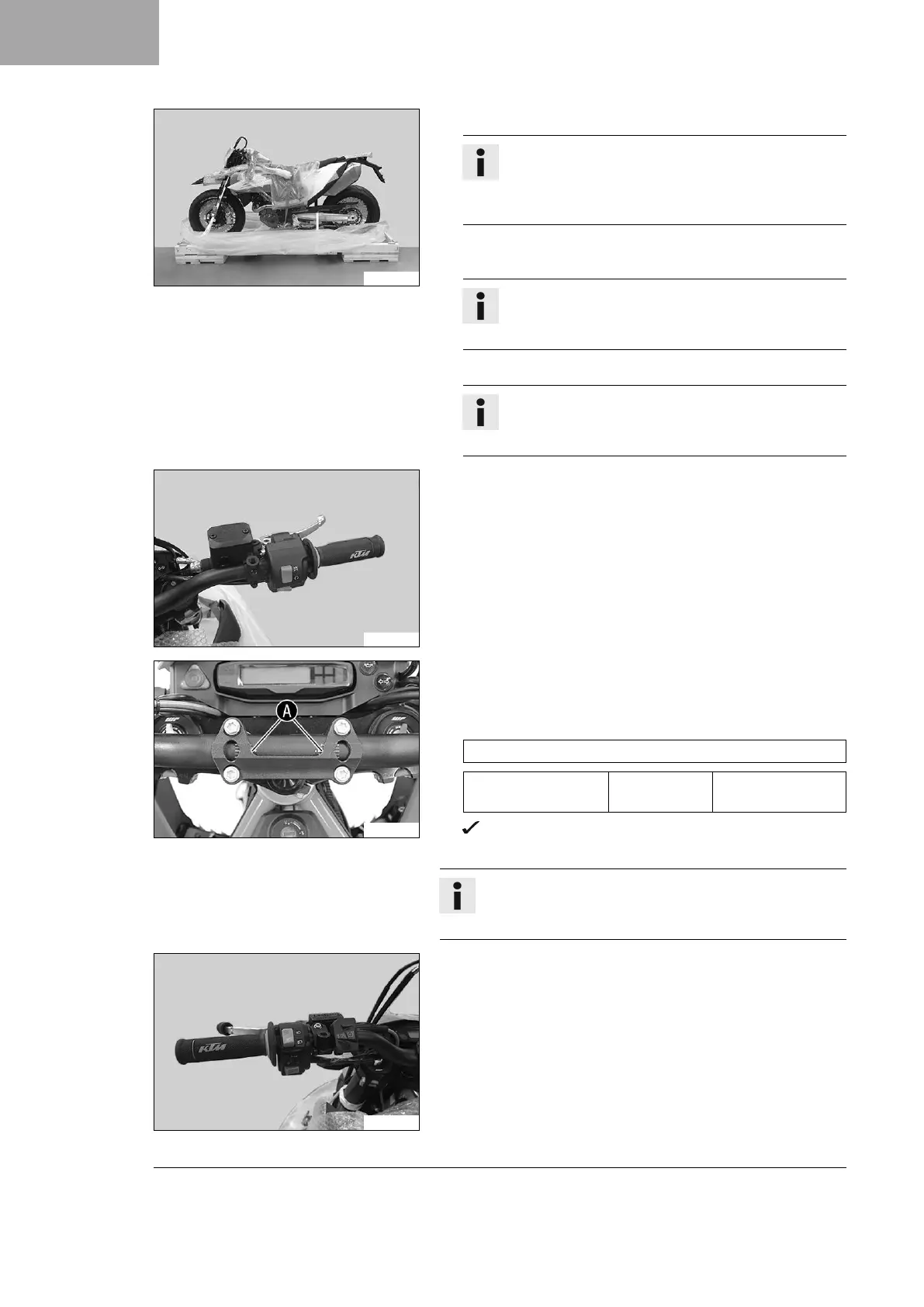

2 SETUP
4
S03394-01
– Roll down the film at the sides.
Info
To avoid damaging the motorcycle during unpacking,
leave the other films on the vehicle until you have fin-
ished work on the vehicle.
– Remove the separate enclosure and unpack it. Check that the
separate enclosure is complete using the enclosed packing list.
Info
The procedure for missing components is described in
the Customer Service Manual.
– Check the vehicle for transport damage.
Info
The procedure in the event of transport damage is
described in the Customer Service Manual.
S03395-01
– Position the throttle grip and the controls of the right handle-
bar half on the handlebar.
– Mount the screws, but do not tighten them yet.
S04680-10
– Position the handlebar.
– Position the handlebar clamp. Mount the four screws and
tighten evenly.
Guideline
Mount the handlebar clamp as shown in the figure.
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
The markings
A
of the handlebar scale are located cen-
trally between the handlebar clamp.
Info
The handlebar clamp is in the separate enclosure together
with the screws.
S03397-01
– Position the controls on the left handlebar half.
– Mount the screws, but do not tighten them yet.

KTM 690 SMC R 2021 Specifications

General

Displacement	692.7 cm³
Bore x Stroke	105 mm x 80 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Ground Clearance	237 mm
Fuel Tank Capacity	13.5 liters
Engine Type	Single cylinder, 4-stroke
Front Brake	Brembo four piston radial caliper, brake disc
Rear Brake	Brembo single-piston floating calliper, brake disc
ABS	Bosch 9.1 MP (incl. Supermoto ABS)
Weight (without fuel)	147 kg
