KTM 690 SMC R 2021 User Manual

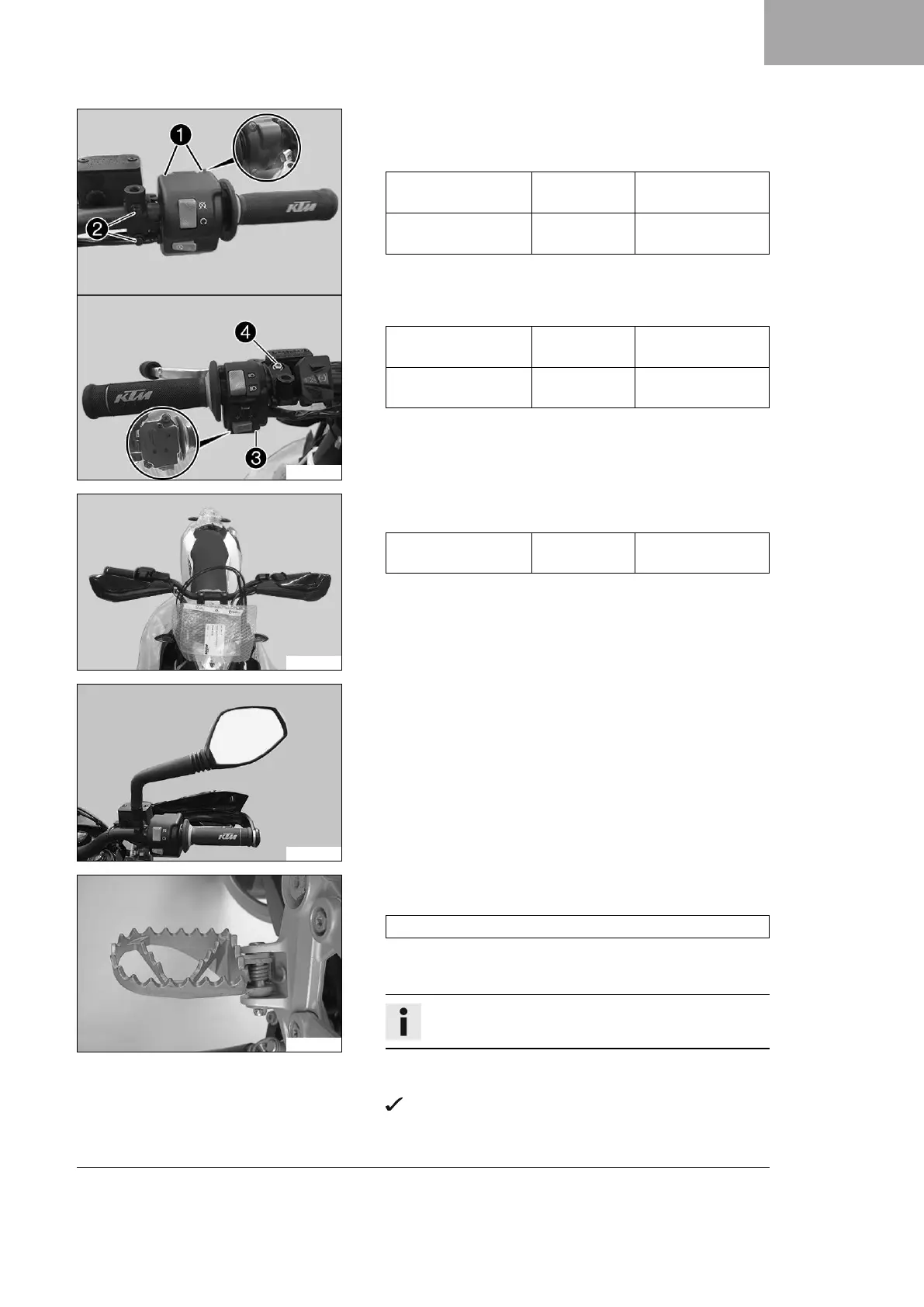

SETUP 2
5
S03400-10
– Position all controls in their exact positions on the handlebar.
–
Tighten screws
1
and
2
.
Guideline
Screw, throttle grip M5 3.5 Nm
(2.58 lbf ft)
Screw, brake assem-
bly
M6 5 Nm (3.7 lbf ft)
– Check the throttle grip for smooth operation.
–
Tighten screws
3
and
4
.
Guideline
Screw, combination
switch, left
M5 3.5 Nm
(2.58 lbf ft)
Screw, clutch assem-
bly
M6 5 Nm (3.7 lbf ft)
S03401-01
– Assemble the hand guards and mount on both sides.
Guideline
Handle bar end
screw
M8 15 Nm (11.1 lbf ft)
S03402-01
– Mount and tighten the rear mirror adapter and the rear mirror
on both sides.
100308-01
– Mount the footrests with springs and pins. Secure the pins
using washers and cotter pins.
Footrest spring plier (58429083000)
– Remove the protective film.
– Carefully loosen and remove the tension belt over the link fork.
Info
An assistant prevents the motorcycle from falling over.
– Carefully loosen and remove the tension belts around the lower
triple clamp.
The vehicle is released at the front.
– Together with an assistant, take the vehicle off the pallet.

KTM 690 SMC R 2021 Specifications

General

Displacement	692.7 cm³
Bore x Stroke	105 mm x 80 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Ground Clearance	237 mm
Fuel Tank Capacity	13.5 liters
Engine Type	Single cylinder, 4-stroke
Front Brake	Brembo four piston radial caliper, brake disc
Rear Brake	Brembo single-piston floating calliper, brake disc
ABS	Bosch 9.1 MP (incl. Supermoto ABS)
Weight (without fuel)	147 kg
