4 Assembly
Generally the coupling is delivered in parts. Before the assembly, the coupling has to be inspected regarding its
completeness.
4.1
Hub
Type
s
Type
1.0 with keyway and
thread
1.1 without keyway
with thread
1.2 without keyway
without thread
Hint: No ATEX
release.
Type up to size 14
standard/
Compact up to
size 19
2.0 single slotted
without keyway
2.1 single slotted with
keyway
Type from size 19
standard
2.5 double slotted
without keyway
2.6 double slotted
with keyway
Type
2.8 axially slotted without keyway
(size 7 to size 19 single slotted)
2.9 axially slotted with keyway
(size 7 to size 19 single slotted)
Type 4.2
1)
with CLAMPEX
®
KTR 250
Type 6.0/6.0 steel/
6.0 light
Clamping ring hub
Type 7.5 (without keyway) and
7.6 (with keyway)
Split clamping hub for DKM/ZR3
Type 7.8 (without keyway) and
7.9 (with keyway)
Hint: Subject to the position of the clamping
screws the application is recommended for
single-cardanic couplings only.
Type 9.0
Expansion hub
Hint: No ATEX release.

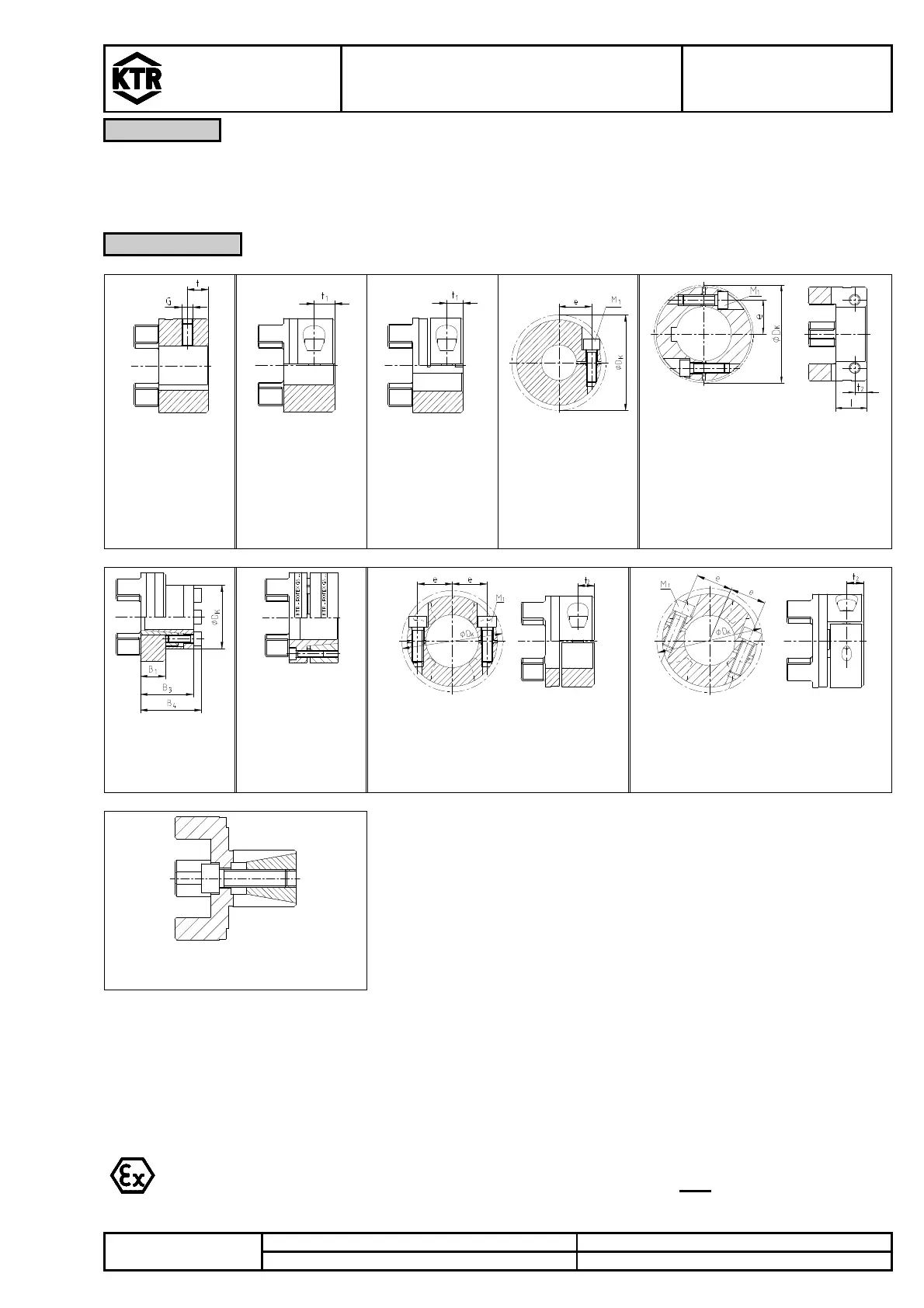

Illustration 11: Hub types
1)

AT T E N T I O N
!
Selection of clamping sets
With the use in explosion-proof areas the clamping hubs have to be selected in a way
that the difference between the peak torque of the machine including all operation
parameters and the rated torque of the clamping hub is at least a service factor of
s = 2.
P R E C A U T I O N !
Hub types 1.1, 2.0, 2.5, 2.8, 7.5 and 7.8 (without feather key) may only be used in category
3and are not permissible for applications according to DIN EN ISO 13849, part 2.
