5INSTRUMENT PANEL AND CONTROLS
ENGLISH
INSTRUMENT PANEL AND CONTROLS

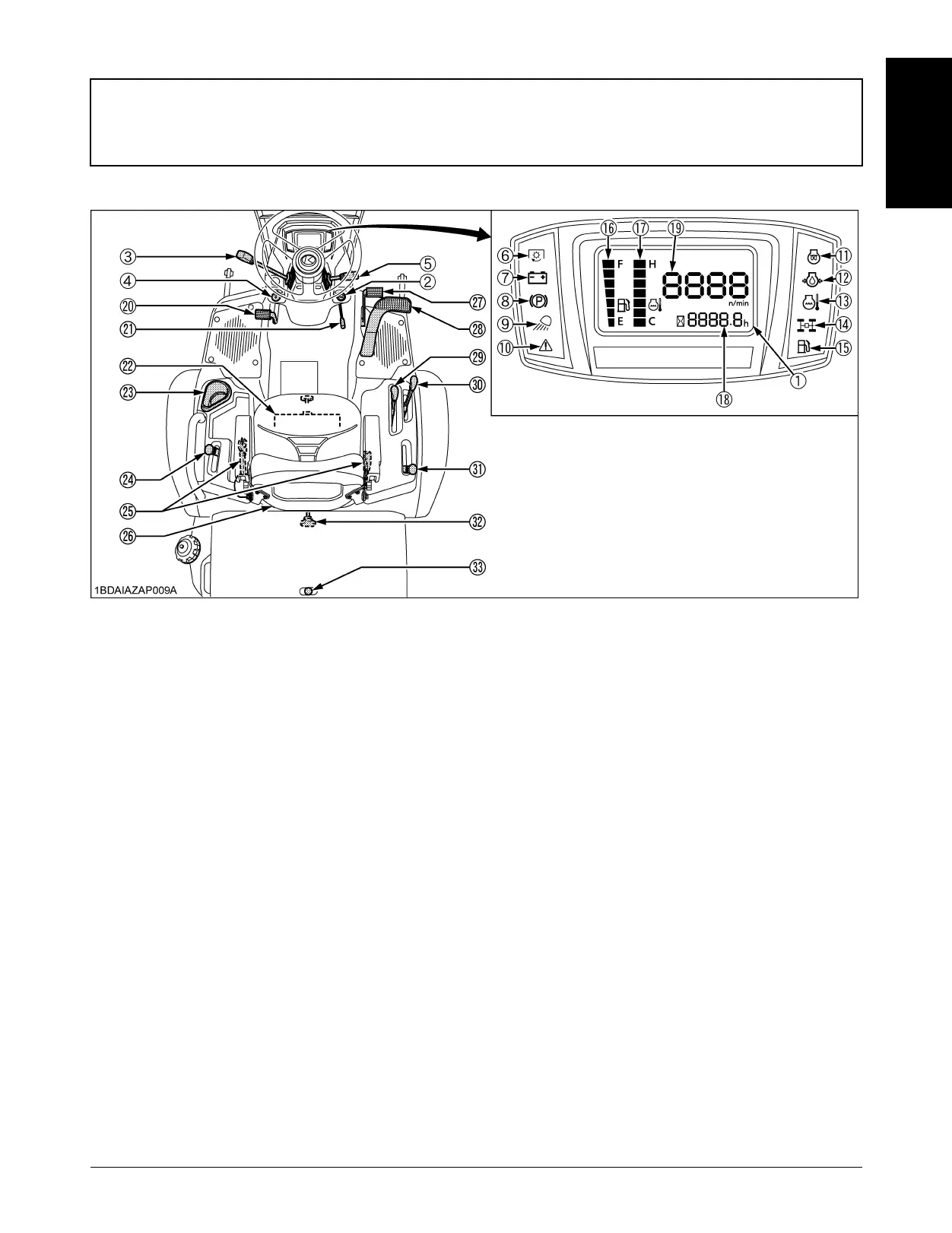

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS
INSTRUMENT PANEL, SWITCHES and
HAND CONTROLS
CONTROLS
(1) Liquid crystal display................................................... 25 (18) Hourmeter............................................................ 26
(2) Key switch.................................................................. 11 (19) Tachometer.......................................................... 26
(3) Throttle lever............................................................... 22 (20) Differential lock pedal........................................... 23
(4) Head light switch......................................................... 19 (21) Parking brake lever.............................................. 9
(5) Steering wheel tilt lever............................................... 19 (22) Glove box............................................................. 18
(6) PTO clutch indicator................................................... 9 (23) Cup holder
(7) Electrical charge warning indicator............................. 24 (24) 4WD lock lever (4WD only).................................. 21
(8) Parking brake warning indicator................................ 9 (25) Seat belt............................................................... 19
(9) Head light indicator................................................... 19 (26) Operator's seat..................................................... 18
(10) Master system warning indicator............................... 24 (27) Brake pedal.......................................................... 22
(11) Glow plug indicator................................................... 9 (28) Speed control pedal (HST pedal)......................... 23
(12) Engine oil pressure warning indicator....................... 24 (29) High - Low gear shift lever..................................... 21
(13) Engine overheat warning indicator............................ 24 (30) Hydraulic lift lever................................................. 20
(14) 4WD indicator........................................................... 21 (31) PTO lever............................................................. 22
(15) Fuel level indicator.................................................... 9 (32) Lift link lowering speed control knob.................... 20
(16) Fuel gauge................................................................ 25 (33) Hood lock lever.................................................... 37
(17) Coolant temperature gauge...................................... 25
