Kubota F2890E - To Raise the ROPS to Upright Position; Adjustment of Foldable ROPS

17OPERATING THE MACHINE
ENGLISH

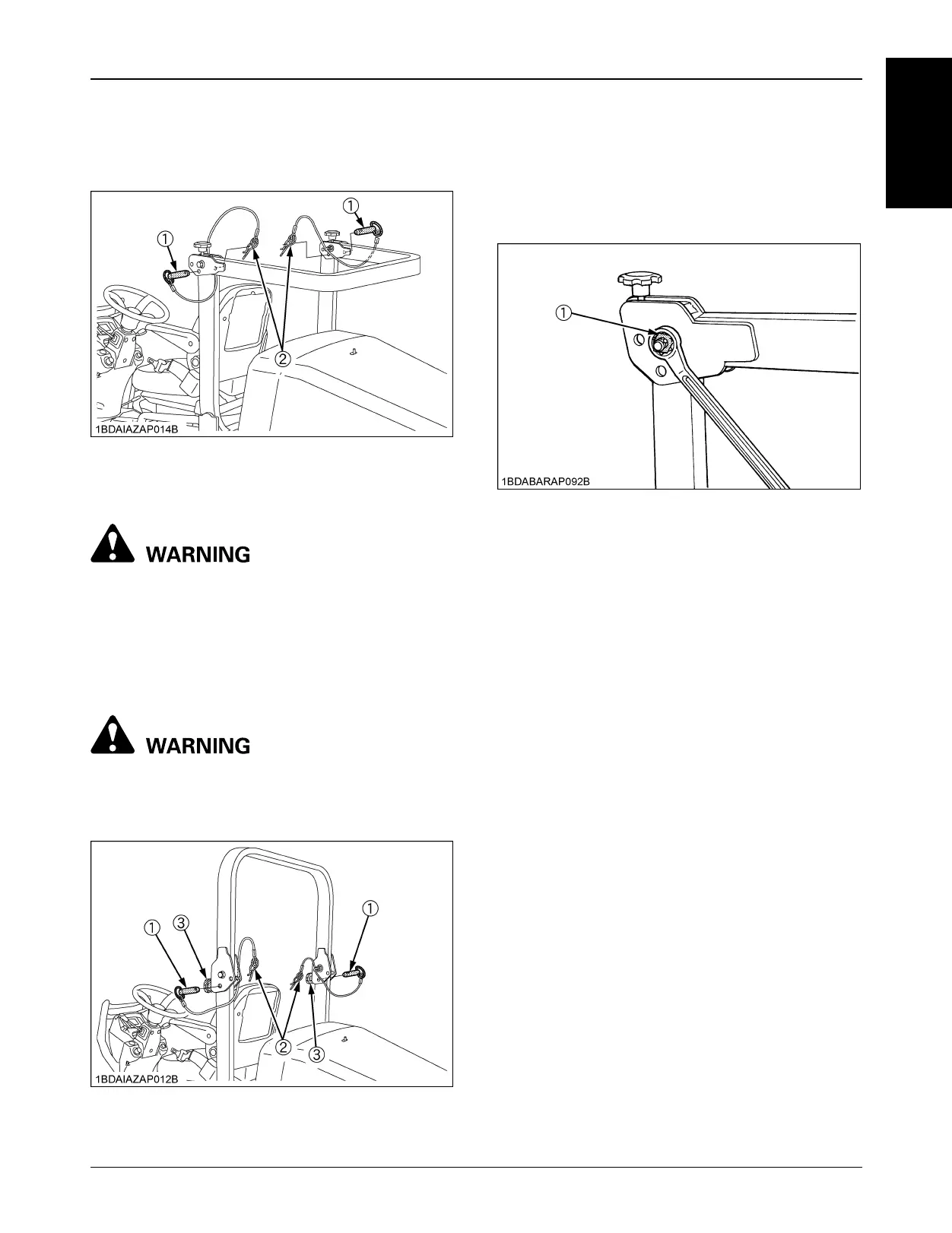

BTo Raise the ROPS to Upright Position
1. Remove both snap pins and lock pins.
2. Raise ROPS to the upright position.
To avoid serious injury or death:
A Hold the ROPS tightly with both hands and
raise the ROPS slowly and carefully.
A Do not use your fingers to align the holes.
3. Align lock pin holes, insert both lock pins and secure
them with the snap pins.
4. Tighten the knob bolts slightly.
To avoid serious injury or death:
A Make sure that both lock pins are properly
installed as soon as the ROPS is in the upright
position and secured with the snap pins.
BAdjustment of Foldable ROPS
A Adjust free fall of the ROPS upper frame regularly.
A If you feel less friction when folding the ROPS, tighten
the nut (1) until you feel the right friction in the
movement.
(1) Lock pin
(2) Snap pin
(1) Lock pin
(2) Snap pin
(3) Knob bolt
(1) Nut
