OPERATING FOLDABLE ROPS
To avoid serious injury or death:
A Always use the seat belt when the ROPS is
installed.
A Do not use the seat belt if a foldable ROPS is
down or there is no ROPS.
To avoid serious injury or death:
A When raising or folding the ROPS, apply
parking brake, stop the engine and remove the
key.
Always perform function from a stable position
from the rear of the machine.
A Fold the ROPS down only when absolutely
necessary and fold it up and lock it again as
soon as possible.
A Before proceeding to fold the ROPS, check for
any possible interference with installed
implements and attachments.
If interference occurs, contact your local
KUBOTA Dealer.

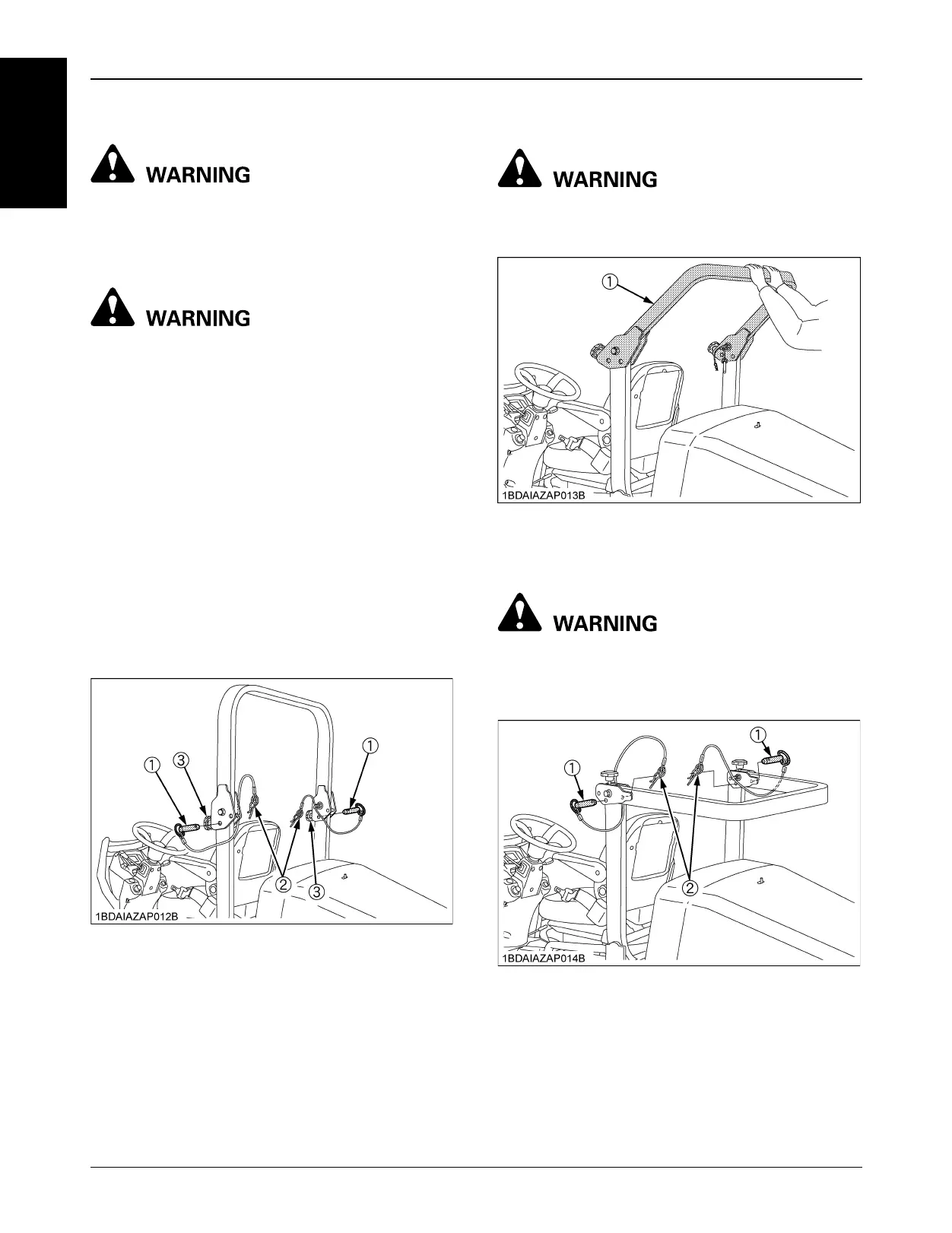

BTo Fold the ROPS
1. Unscrew the knob bolts 1 to 2 turns.
2. Remove both lock pins.
3. Fold the ROPS.
To avoid serious injury or death:
A Hold the ROPS tightly with both hands and fold
the ROPS slowly and carefully.
4. Align lock pin holes and insert both lock pins and
secure them with the snap pins.
To avoid serious injury or death:
A Make sure that both lock pins are properly
installed and secured with the snap pins.
A Do not use your fingers to align the holes.
(1) Lock pin
(2) Snap pin
(3) Knob bolt
(1) ROPS
(1) Lock pin
(2) Snap pin
