SERVICE AS REQUIRED
BReplacing Fuses
The machine electrical system is protected from potential
damage by fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
If any of the fuses should blow, replace with a new one of
the same capacity.
A Before replacing a blown fuse, determine why the fuse
blew and make any necessary repairs. Failure to
follow this procedure may result in serious damage to
the machine electrical system. Refer to the
"TROUBLESHOOTING" section of this manual or your
local KUBOTA Dealer for specific information dealing
with electrical problems.
If any of them should blow, replace with a new one of
the same capacity.
Do not use a fuse that is rated for a different capacity.

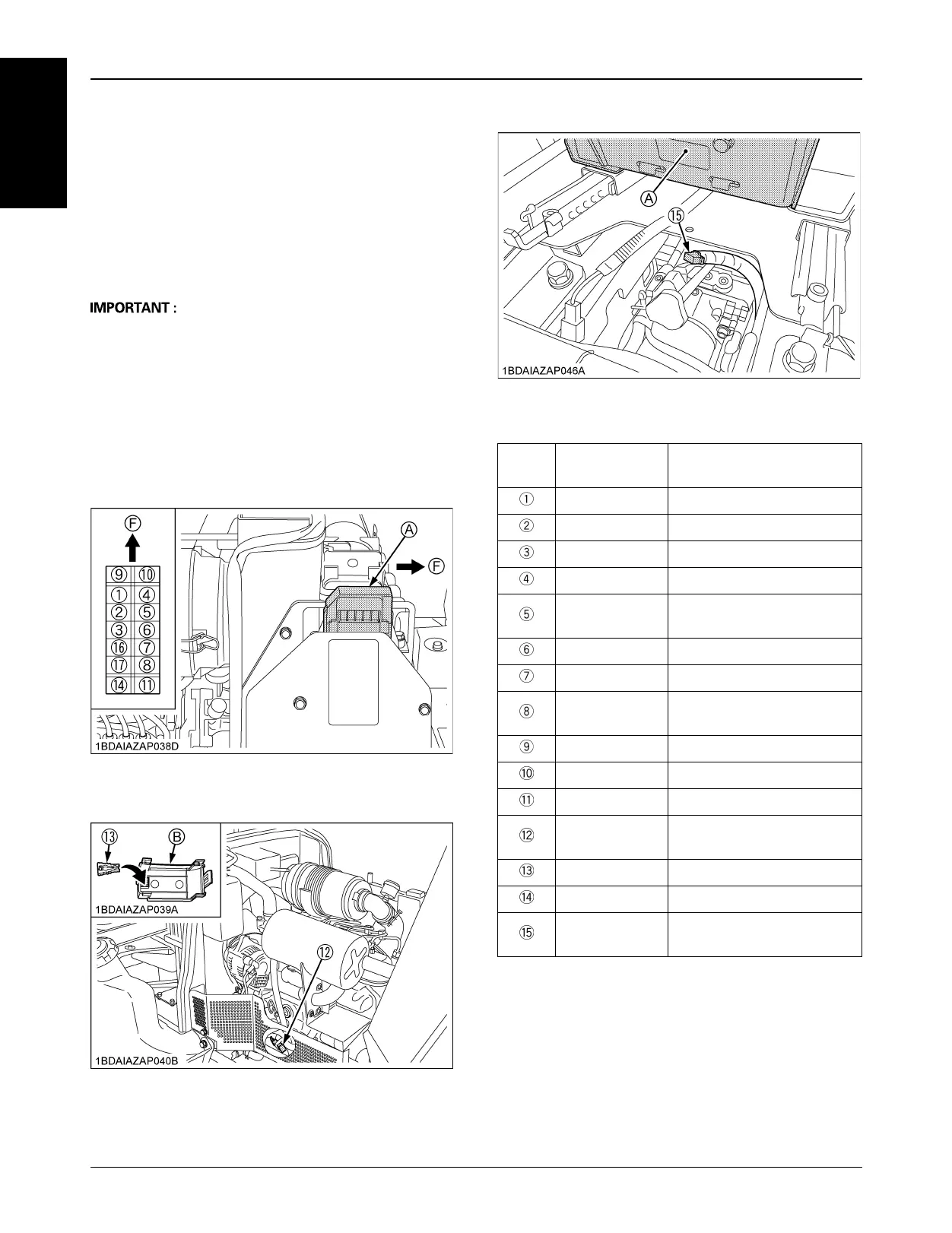

If fuse No.15 is equipped
* If fuse No.16 and 17 are NOT equipped,
(A) Fuse box
(F) Front
(B) Fuse box cover
(A) Seat
FUSE
No.
CAPACITY
(A)
Protected circuit
10 Flasher unit +B (option)
10 Fuel pump/head light
10 OPC control/rotation sensor
5 Glow plug
20
Combination switch/lamp
(option)
10 Brake lamp (option)
10 Flasher unit AC (option)
20
Horn relay/beacon lamp
(option)/work light (option)
10 Spare
20 Spare
10 Spare
Slow blow fuse
50
Check circuit against wrong
battery connection
- Fuse puller
7.5 Spare (if equipped)
7.5
Beacon lamp (option) (if
equipped)
