2-S16
GR1600EC2, WSM
TRANSAXLE

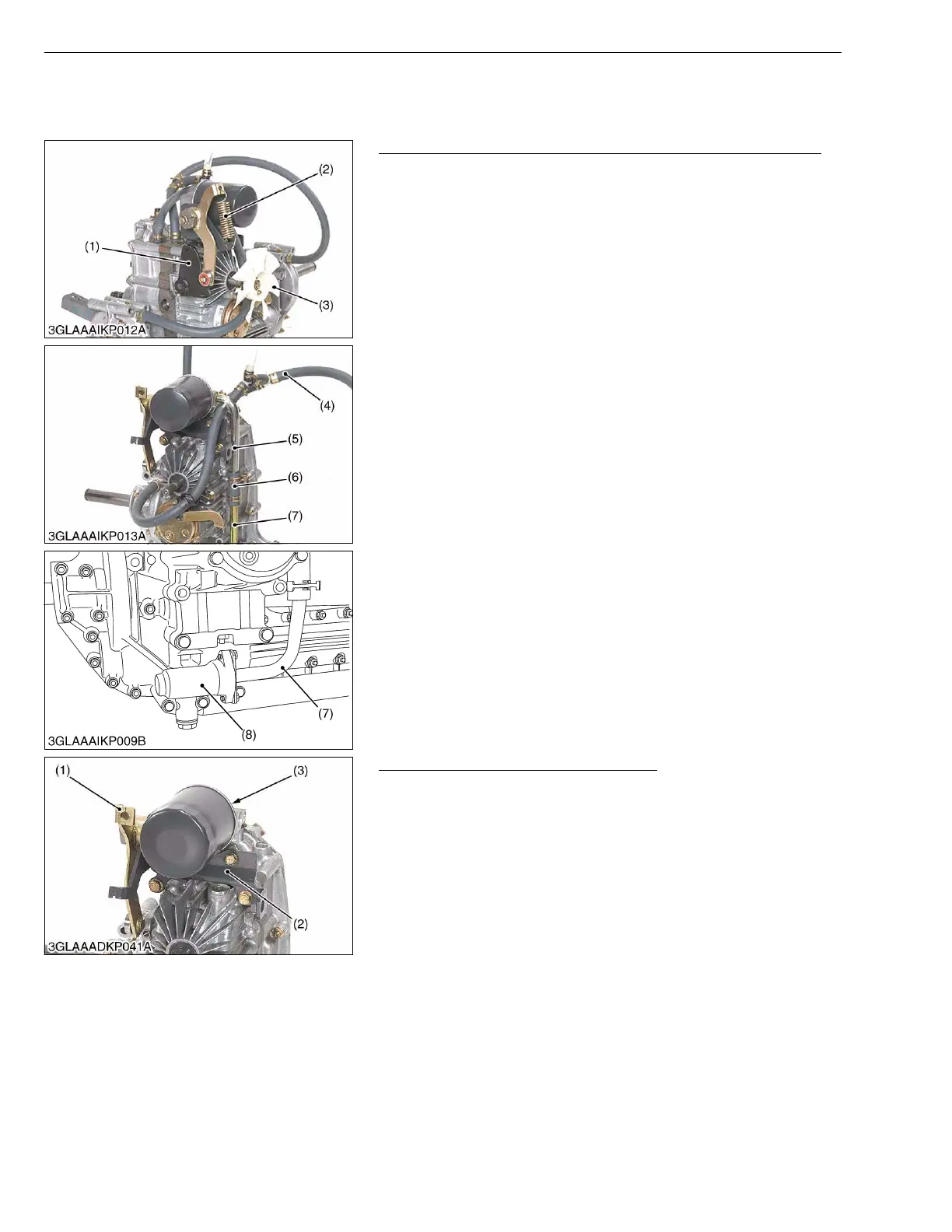

[3] DISASSEMBLING AND ASSEMBLING
(1) Hydrostatic Transmission
Speed Control Arm, Neutral Spring, Cooling Fan and Others
1. Remove the neutral spring (2).
2. Remove the speed control arm (1).
3. Remove the cooling fan (3).
4. Remove the breather hoses (4).
5. Remove the suction pipe 1, 2 (5), (7) and hose (6).
6. Remove the suction filter case (8).
W1017008
Neutral Arm Holder and Filter Bracket
1. Remove the neutral arm holder (2) with neutral arm (1).
2. Remove the filter bracket (3).
W1017280
(1) Speed Control Arm
(2) Neutral Spring
(3) Cooling Fan
(4) Breather Hose
(5) Suction Pipe 1
(6) Hose
(7) Suction Pipe 2
(8) Suction Filter Case
(1) Neutral Arm
(2) Neutral Arm Holder
(3) Filter Bracket
To Next Page
