Kubota GR1600EC2 - Check Point of Every 400 Hours

G-31
GR1600EC2, WSM
G GENERAL

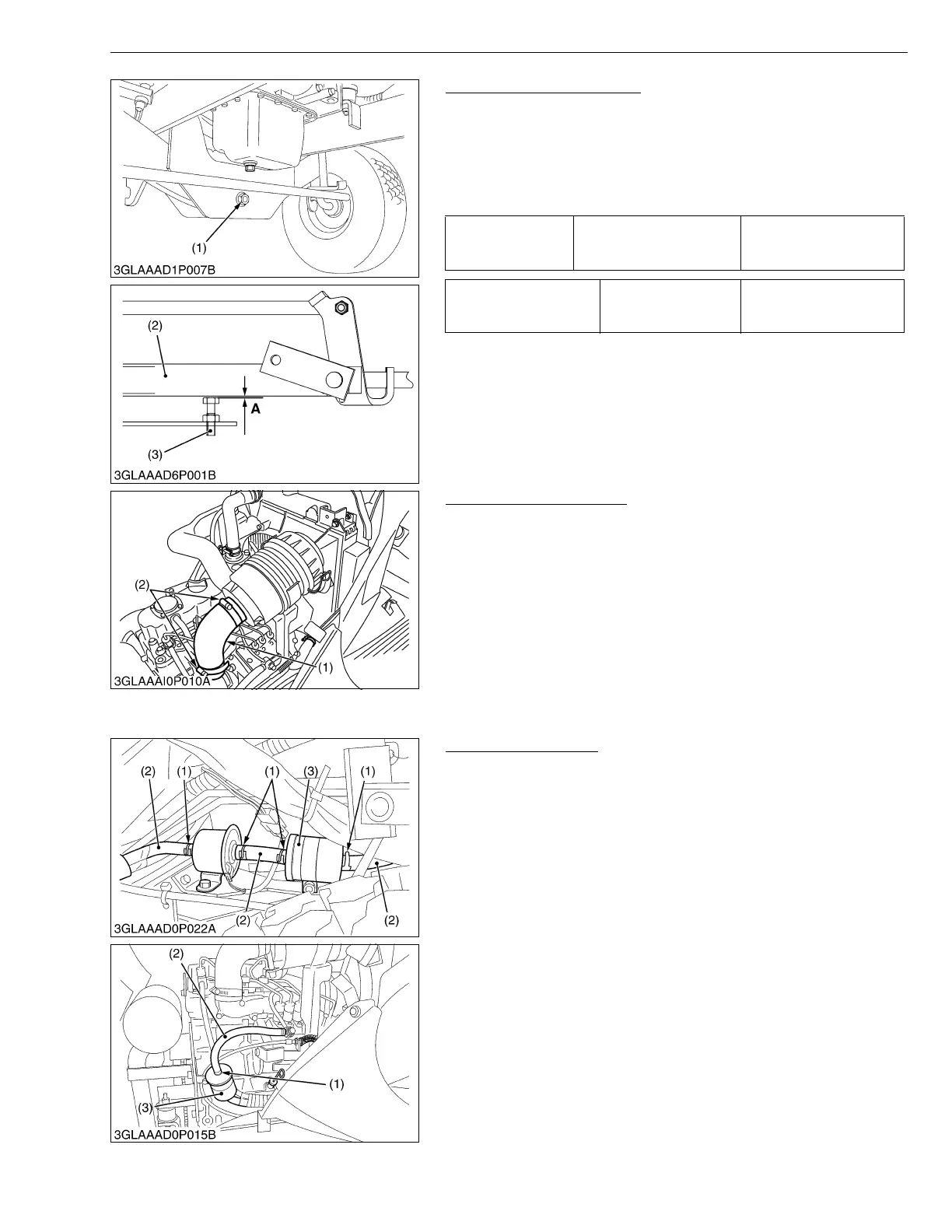

Adjusting Front Axle Pivot
1. Jack up the front of machine.
2. Tighten the center pin locking nut (1) with specified torque.
3. Measure the clearance between the front axle frame (2) and anti-
vibration bolt (3).
4. If the measurement exceeds the factory specification, adjust the
anti-vibration bolt.
W1065691
Checking Intake Air Line
1. Check to see that hose (1) and clamps (2) are tight and not
damaged.
2. If hose (1)and clamps (2) are found worn or damaged, replace or
repair them at once.
W1049152
[6] CHECK POINT OF EVERY 400 HOURS
Replacing Fuel Filter
1. Disconnect the fuel hoses and loosen the filter band to replace
the fuel filter (3).
NOTE■
• If the fuel line is removed, be sure to properly bleed the fuel
system. (See page G-37.)
W1019713
Tightening torque Center pin locking nut
77.4 to 90.2 N·m
7.89 to 9.20 kgf·m
57.1 to 66.5 ft-lbs
Clearance between front
axle frame and anti-
vibration bolt (A)
Factory spec.
0.3 to 0.5 mm
0.012 to 0.020 in.
(1) Center Pin Locking Nut
(2) Front Axle Frame
(3) Anti-vibration Bolt
A : Clearance
(1) Hose (2) Clamp
(1) Pipe Clamps
(2) Fuel Line
(3) Fuel Filter
KiSC issued 07, 2006 A
