4-S6
GR1600EC2, WSM
FRONT AXLE

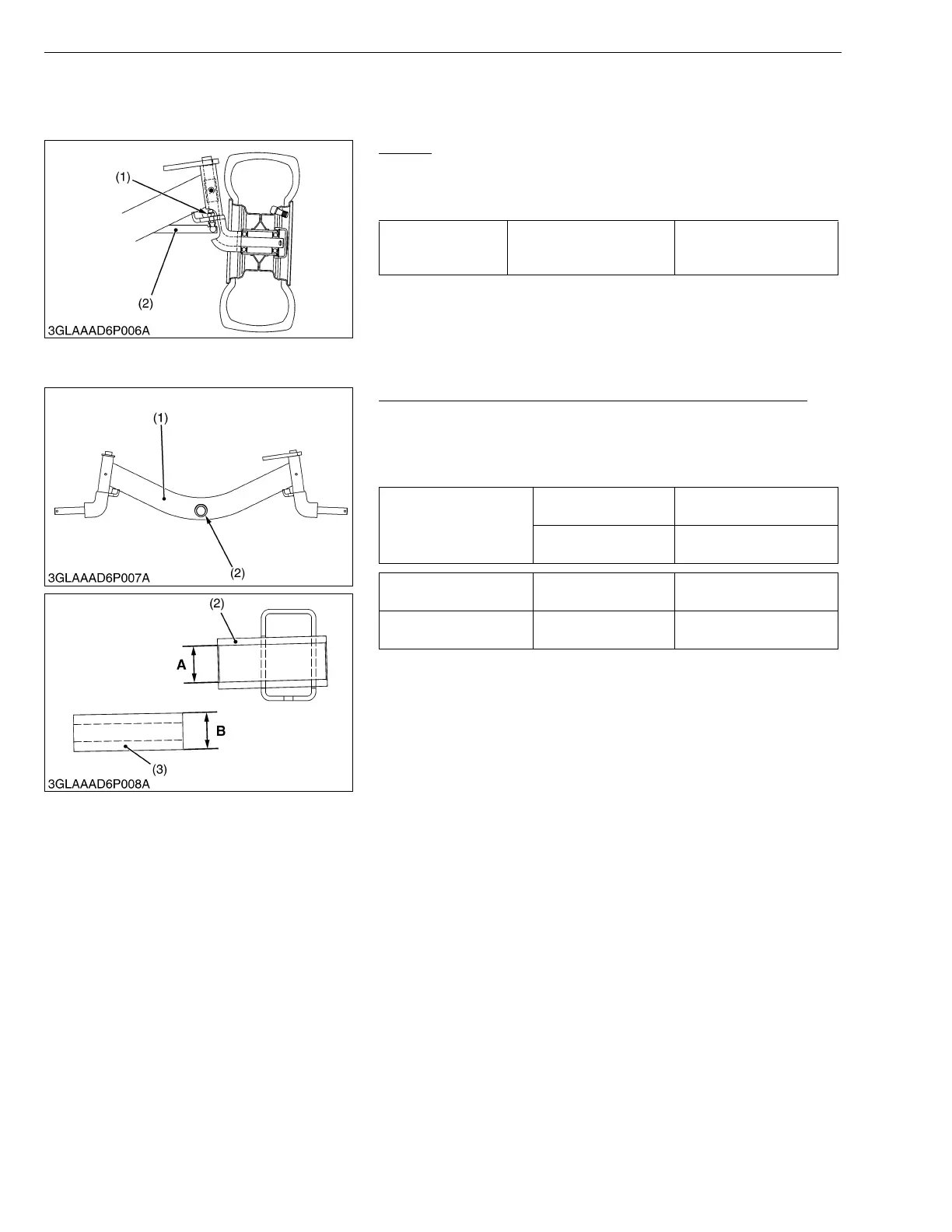

[3] DISASSEMBLING AND ASSEMBLING
(1) Front Axle Assembly
Tie-rod
1. Remove the tie-rod mounting locking nut (1).
2. Remove the tie-rod (2).
(When reassembling)
W1012154
[4] SERVICING
Clearance between Center Pin Boss and Center Pin Collar
1. Measure the center pin boss (2) I.D. with a cylinder gauge.
2. Measure the center pin collar (3) O.D. with an outside micrometer
and calculate the clearance.
3. If the clearance exceeds the allowable limit, replace them.
W1012404
Tightening torque
Tie-rod mounting locking
nut
49.9 to 54.2 N·m
5.09 to 5.53 kgf·m
36.8 to 40.0 ft-lbs
(1) Tie-rod Mounting Locking Nut (2) Tie-rod
Clearance between
center pin boss and
center pin collar
Factory spec.
0.109 to 0.200 mm
0.00430 to 0.00789 in.
Allowable limit
0.210 mm
0.0828 in.
Center pin boss I.D. (A) Factory spec.
25.400 to 25.430 mm
1.00000 to 1.00118 in.
Center pin collar O.D.
(B)
Factory spec.
25.230 to 25.291 mm
0.99329 to 0.99570 in.
(1) Front Axle Frame
(2) Center Pin Boss
(3) Center Pin Collar
To Next Page
