7-S11
GR1600EC2, WSM
MOWER

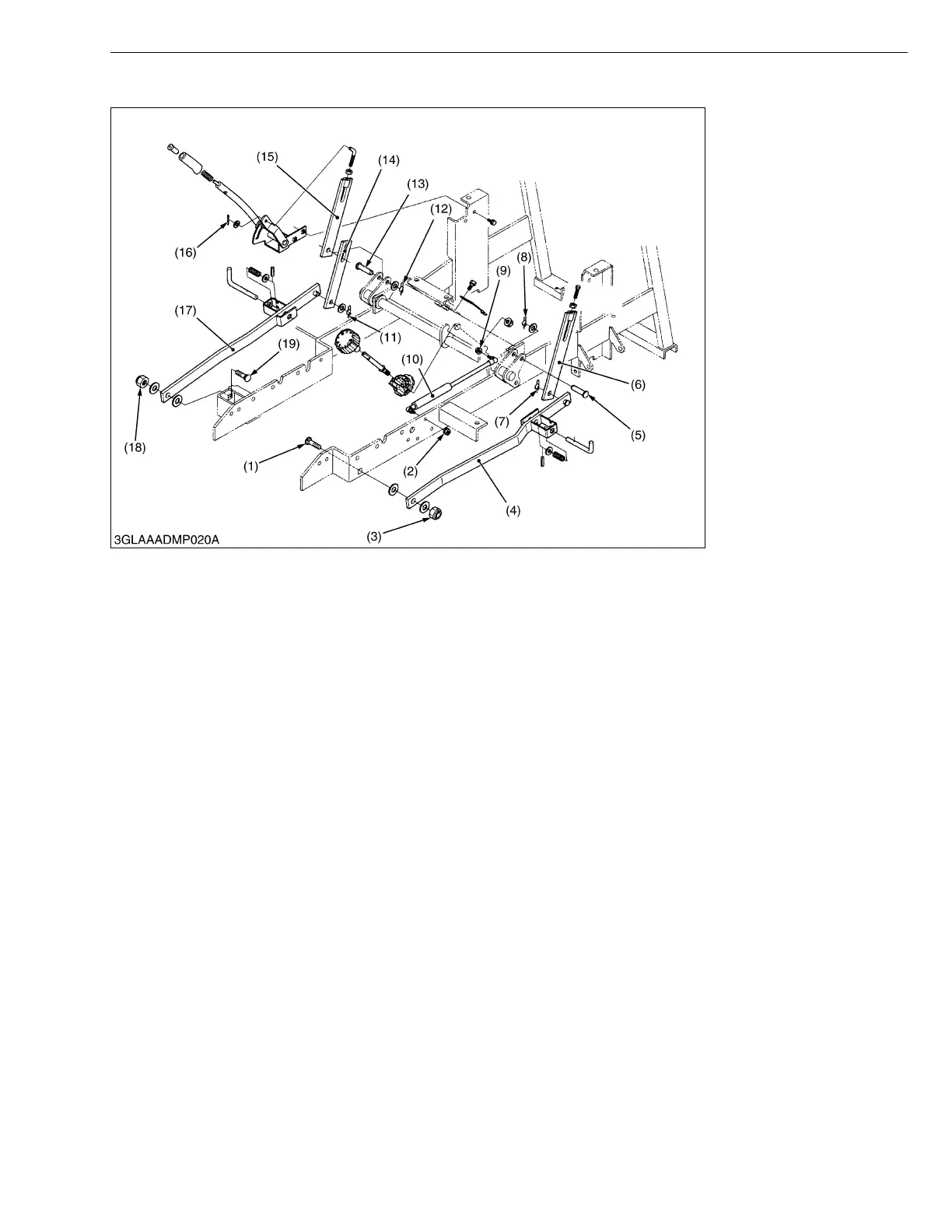

(2) Mower Lift Linkage
W1025253
1. Dismount the mower. (See page 7-S6.)
2. Remove the fender. (See page 2-S12.)
3. Set the mower lift lever to "LIFT" position.
4. Unscrew the gas spring mounting nuts (2), (9), and then remove the gas spring (10).
5. Remove the screws (1), (19) and lock nuts (2), (18), and pull out the rue rings (7), (11).
6. Remove the rear link LH (4) and RH (17).
7. Pull out the rue rings (7), (12) and remove the clevis pins (5), (13).
8. Remove the lift link LH (6) and RH (14).
9. Pull out the cotter pin (16), and remove the lift link (15) from the mower lift lever.
(1) Screw
(2) Gas Spring Mounting Nut
(3) Lock Nut
(4) Rear Link LH
(5) Clevis Pin
(6) Lift Link LH
(7) Rue Ring
(8) Rue Ring
(9) Gas Spring Mounting Nut
(10) Gas Spring
(11) Rue Ring
(12) Rue Ring
(13) Clevis Pin
(14) Lift Link RH
(15) Lift Link
(16) Cotter Pin
(17) Rear Link RH
(18) Lock Nut
(19) Screw
To Next Page
