G-28
GR1600EC2, WSM
G GENERAL

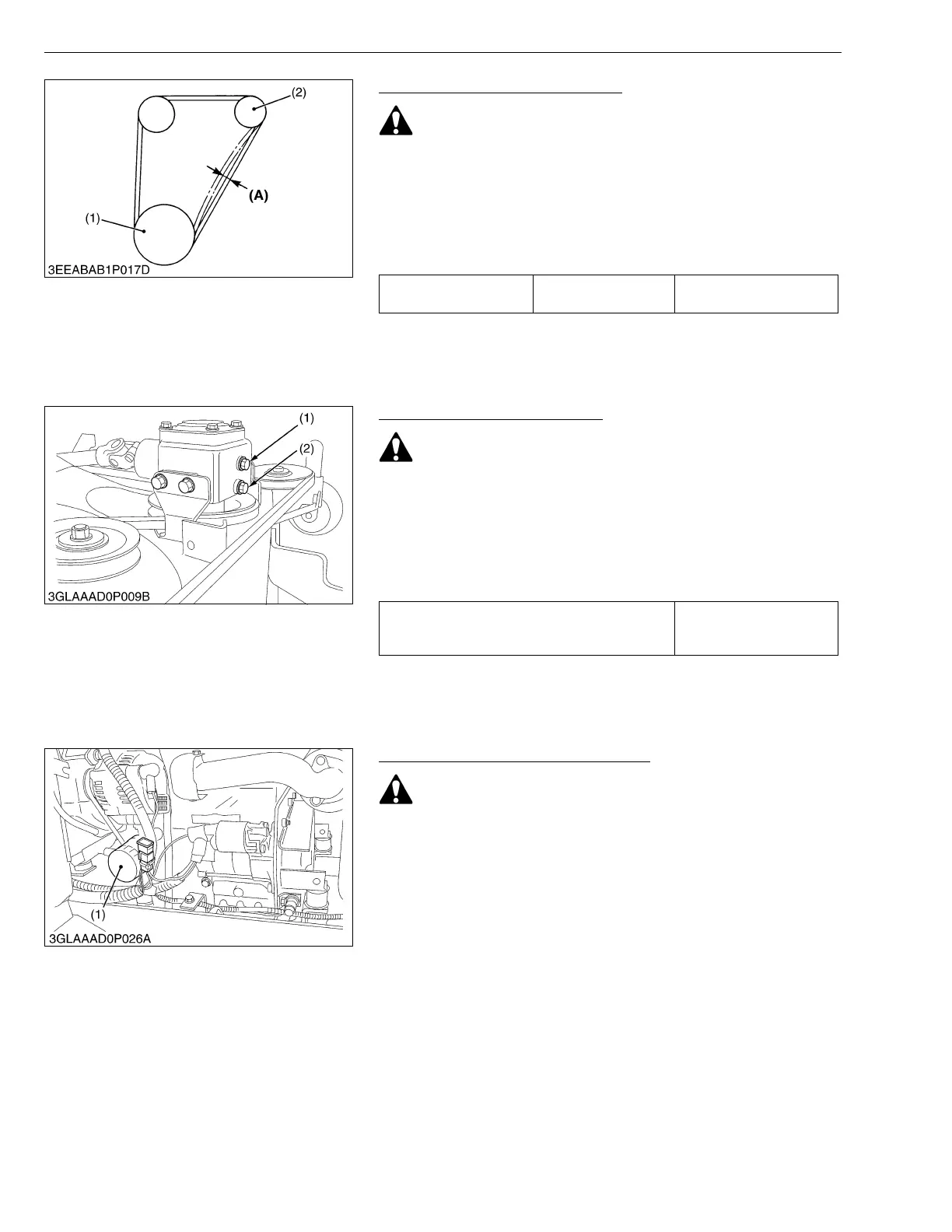

Checking Fan Drive Belt Tension
CAUTION
• Be sure to stop the engine and remove the key before
checking belt tension.
1. Measure the deflection (A), depressing the belt halfway between
the fan drive pulley (1) and dynamo pulley (2) at specified force
(98 N, 10 kgf, 22 lbs).
2. If the measurement is not within the factory specifications, loosen
the dynamo mounting screws and relocate the dynamo to adjust.
W1060896
[4] CHECK POINT OF EVERY 150 HOURS
Changing Mower Gear Box Oil
CAUTION
• Be sure to stop the engine and remove the key before
changing the oil.
1. To drain the used oil, remove the oil filler plug (1) at the mower
gear box, tilt the mower deck and drain the oil completely into the
oil pan.
2. Fill with the new oil. (See page G-8.)
3. After filling, reinstall the oil filler plug (1).
W1018562
[5] CHECK POINTS OF EVERY 200 HOURS
Replacing Engine Oil Filter Cartridge
CAUTION
• Be sure to stop the engine and remove the key before
changing the oil filter cartridge.
• Allow engine to cool down sufficiently, oil can be hot and
may cause burns.
1. The oil filter cartridge (1) must be changed every 200 service
hours.
2. Apply a slight coat of oil onto the rubber gasket of new cartridge.
3. Tighten the filter quickly until it contacts the mounting surface.
Tighten filter by hand an additional 1/2 turn only.
4. After the cartridge has been replaced, the engine oil level
normally lowers a little. Add engine oil to proper level. Check for
oil leaks around filter gasket.
• To prevent serious damage to the engine, element of
recommended type must be used. Use only a genuine
KUBOTA filter or its equivalent
W1019390
Deflection (A) Factory spec.
7 to 9 mm
0.28 to 0.35 in.
(1) Fan Drive Pulley (2) Dynamo Pulley
Mower gear box oil capacity
0.33 L
0.35 U.S.qts
0.29 Imp.qts
(1) Oil Filler Plug (2) Drain Plug
(1) Engine Oil Filter Cartridge
To Next Page
