G-27
GR1600EC2, WSM
G GENERAL

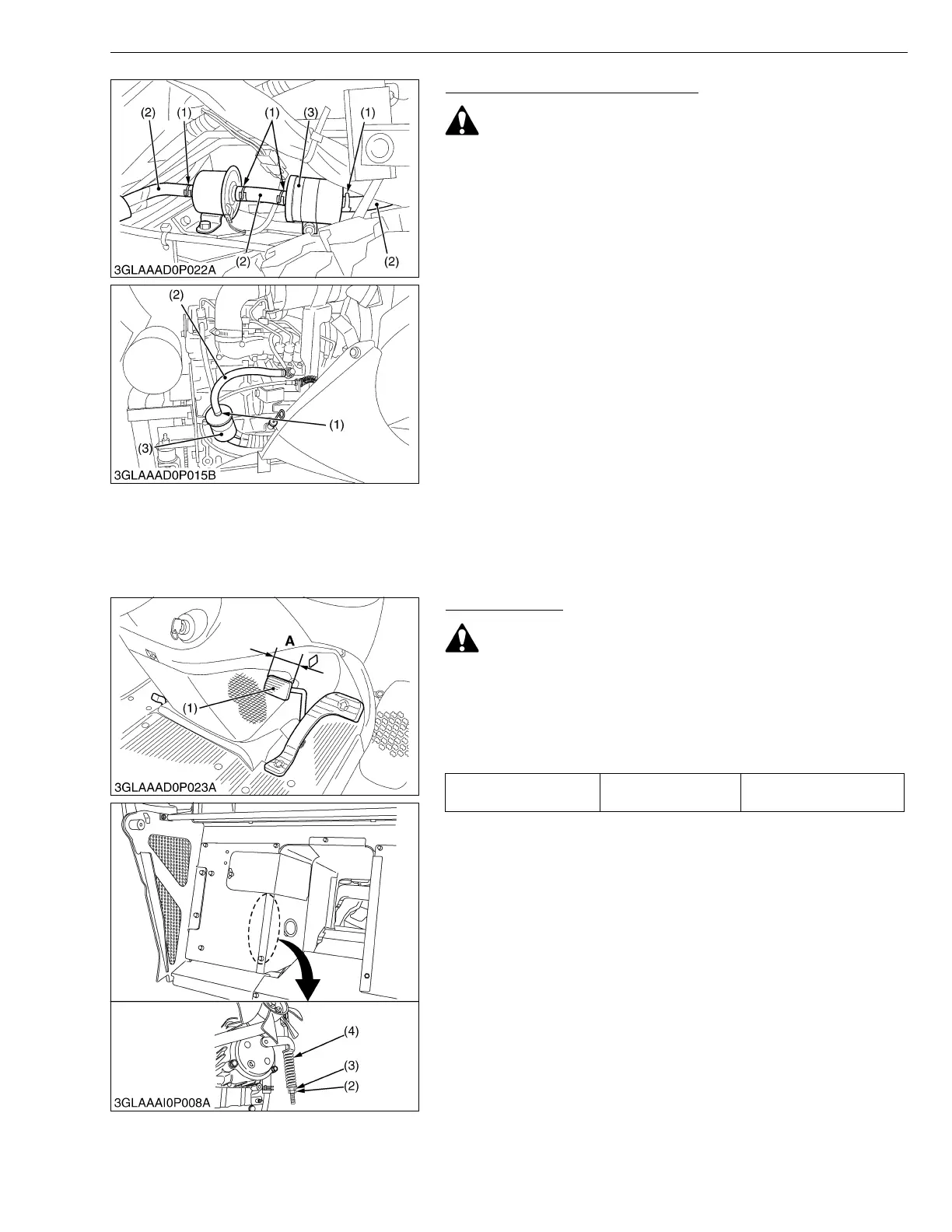

Checking Fuel Line and Fuel Filter
CAUTION
• Be sure to stop the engine and remove the key when
attempting to make the following checks and changes.
• Never fail to check the fuel lines periodically. The fuel lines
are subject to wear and aging. Fuel may leak out onto the
running engine, causing a fire.
The fuel line connections should be checked annually or every
100 service hours, whichever comes first.
1. The fuel line (2) is made of rubber and ages regardless of service
period.
2. If the fuel line (2) and clamps (1) are found to be damaged or
deteriorated, replace them.
3. Check fuel filter (3), if it is clogged by debris or contaminated with
water, replace it.
IMPORTANT
• When the fuel line is disconnected for maintenance or
repair, close both ends of the fuel line with a piece of clean
cloth or paper to prevent dust and dirt from entering. In
addition, particular care must be take not to admit dust and
dirt into the fuel pump. Entrance of even a small amount of
dust or dirt cause premature wear and malfunction of the
fuel pump and injector components.
W1015551
Checking Brake
CAUTION
• When making adjustments, park the machine on a flat area,
block wheels, stop the engine and remove the key.
1. Correct play ranges from 15 to 25 mm (0.59 to 0.98 in.). If it is
not correct, loosen the lock nut (2) and turn the nut (3) in the
desired direction until the proper play is achieved. After
adjustment, retighten lock nut securely.
W1017708
(1) Pipe Clamp
(2) Fuel Line
(3) Fuel Filter
Play (A) Factory spec.
15 to 25 mm
0.59 to 0.98 in.
(1) Brake Pedal
(2) Lock Nut
(3) Nut
(4) Spring
To Next Page
