Cleaning Air Cleaner Element
1. The air cleaner uses a dry element, never apply oil.
2. Do not touch the filter element except where cleaning is required.
To clean the element, use clean and dry compressed air on the
inside of the element. Air pressure should not exceed 205 kPa
(2.1 kgf/cm
2
, 30 psi).
• Operating in dusty conditions requires more frequent
maintenance.
• Align the arrow marks when reinstalling the air cleaner
cover.
W1015242
Checking Mower Gear Box Oil Level
CAUTION
• Always stop the engine and remove the key before checking
oil.
1. Park the machine on a flat surface and lower the mower to the
ground.
To check the oil level, loosen filler plug (1) bolt and check to see
that the oil level is just below the oil filler plug (1) port.
If the level is too low, add new oil to the prescribed level at the oil
inlet. (See page G-8.)
W1015311
Lubricating All Grease Nipple
1. Apply grease to the following locations as shown in the figures.
CAUTION
• Be sure to stop the engine and remove the key before
greasing.
W1053820

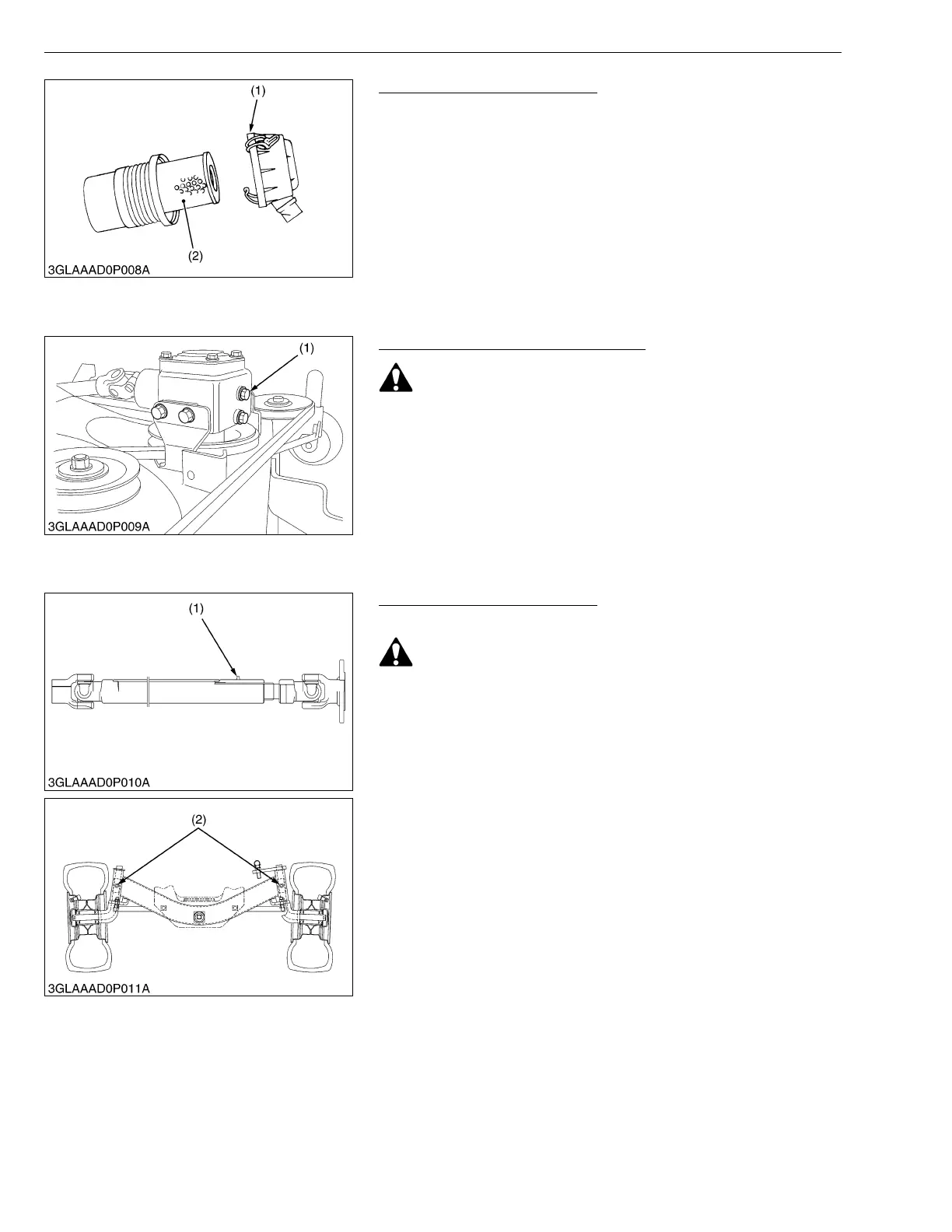

(1) Air Cleaner Cover (2) Air Cleaner Element
(1) Oil Filler Plug
(1) Engine Transmission Universal Joint (2) King Pin (LH, RH)
To Next Page
