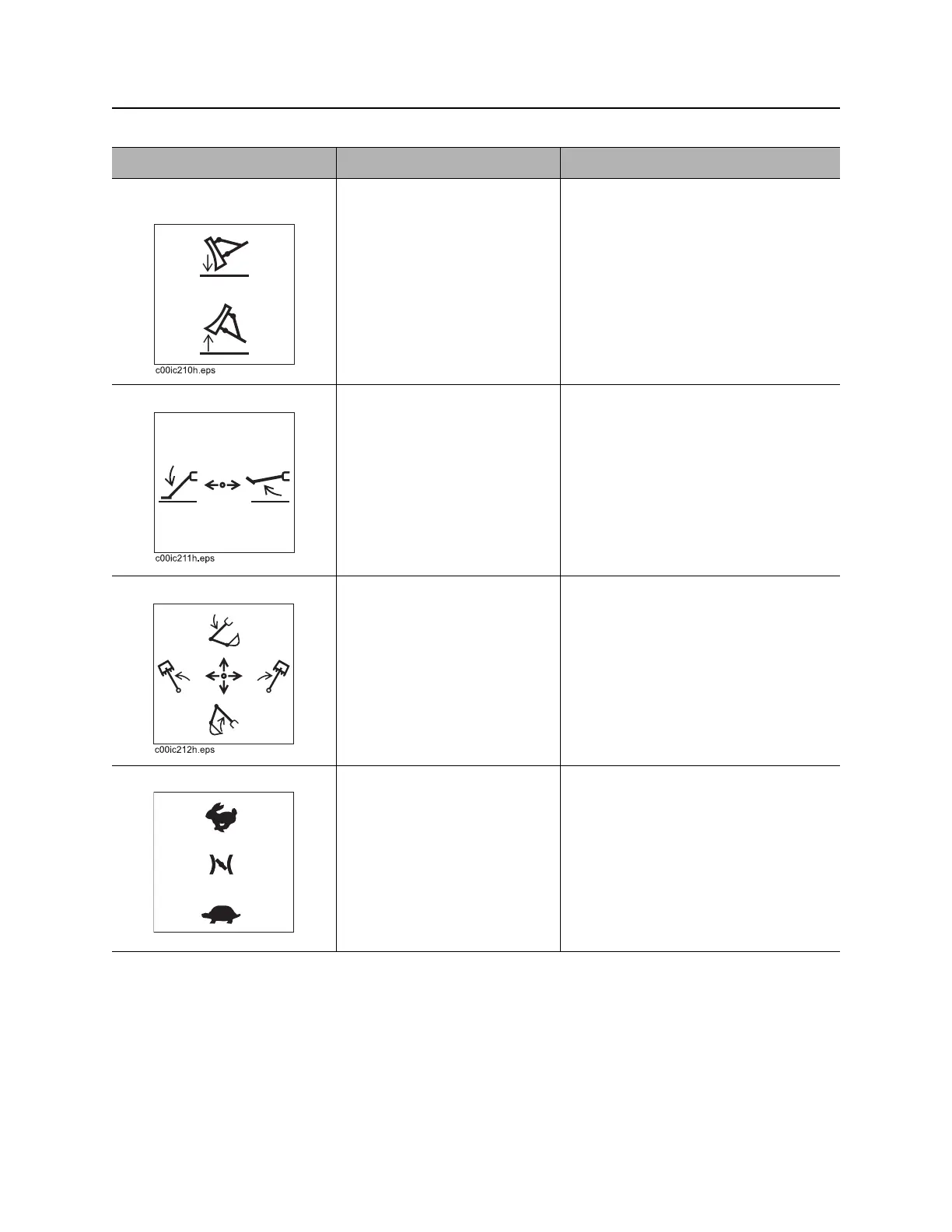

Controls - 64 RT120Q Operator’s Manual
Backhoe Console
Item Description Notes
1. Remote backfill blade
control
To lower, push.
To raise, pull.
2. Left stabilizer control To lower, push out.
To raise, pull in.
3. Boom/Swing control To swing boom left, move left.
To swing boom right, move
right.
To raise boom, pull.
To lower boom, push.
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
NOTICE: Do not operate with
backhoe in the stowed (upright)
position.
4. Remote throttle To increase engine speed,
press top.
To decrease engine speed,
press bottom.
